3 - 27
INSP
ADJ
FUSE INSPECTION (TT-R90E)
6. Install:
● Battery
7. Check:
● Battery terminals
Dirt → Clean with a wire brush.
Loose connection → Connect properly.
8. Lubricate:
● Battery terminal
9. Connect:
● Battery lead coupler
(to the battery terminals)
10. Install:
● Rear fender
● Seat
Recommended lubricant:
Lithium soap base grease

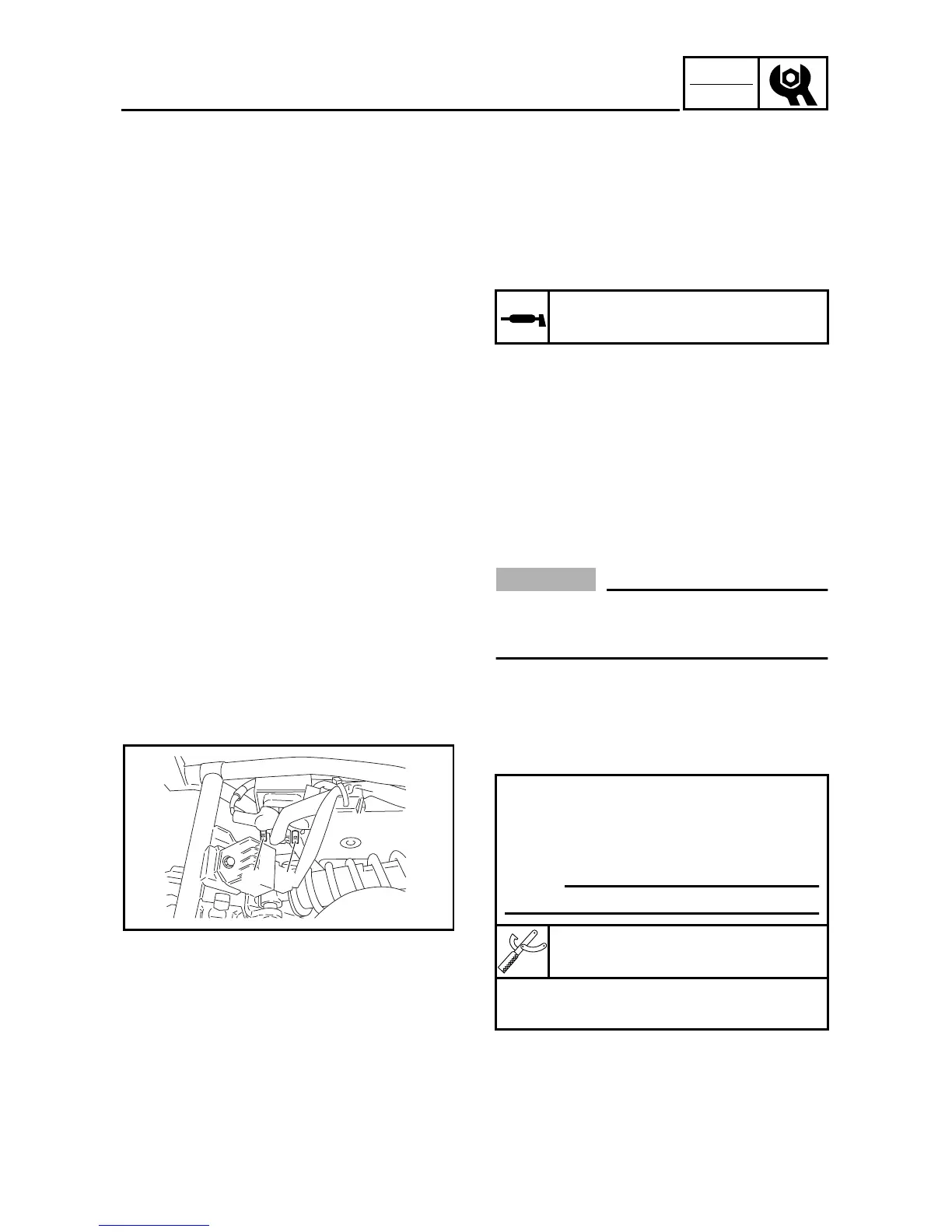

FUSE INSPECTION (TT-R90E)
CAUTION:
To avoid a short circuit, always set the
main switch to “OFF” when checking or
replacing a fuse.
1. Remove:
● Seat
● Rear fender
2. Check:
● Continuity
2 Reserve fuse
Checking steps:
● Remove the fuse 1.
● Connect the pocket tester to the fuse and
check the continuity.
OTE:
Set the pocket tester selector to “Ω × 1”.
Pocket tester:
YU-03112-C/90890-03112
● If the pocket tester indicates “∞”, replace
the fuse.
1
2
