4 - 14
ENG
CAMSHAFT AND ROCKER ARMS
REMOVAL POINTS

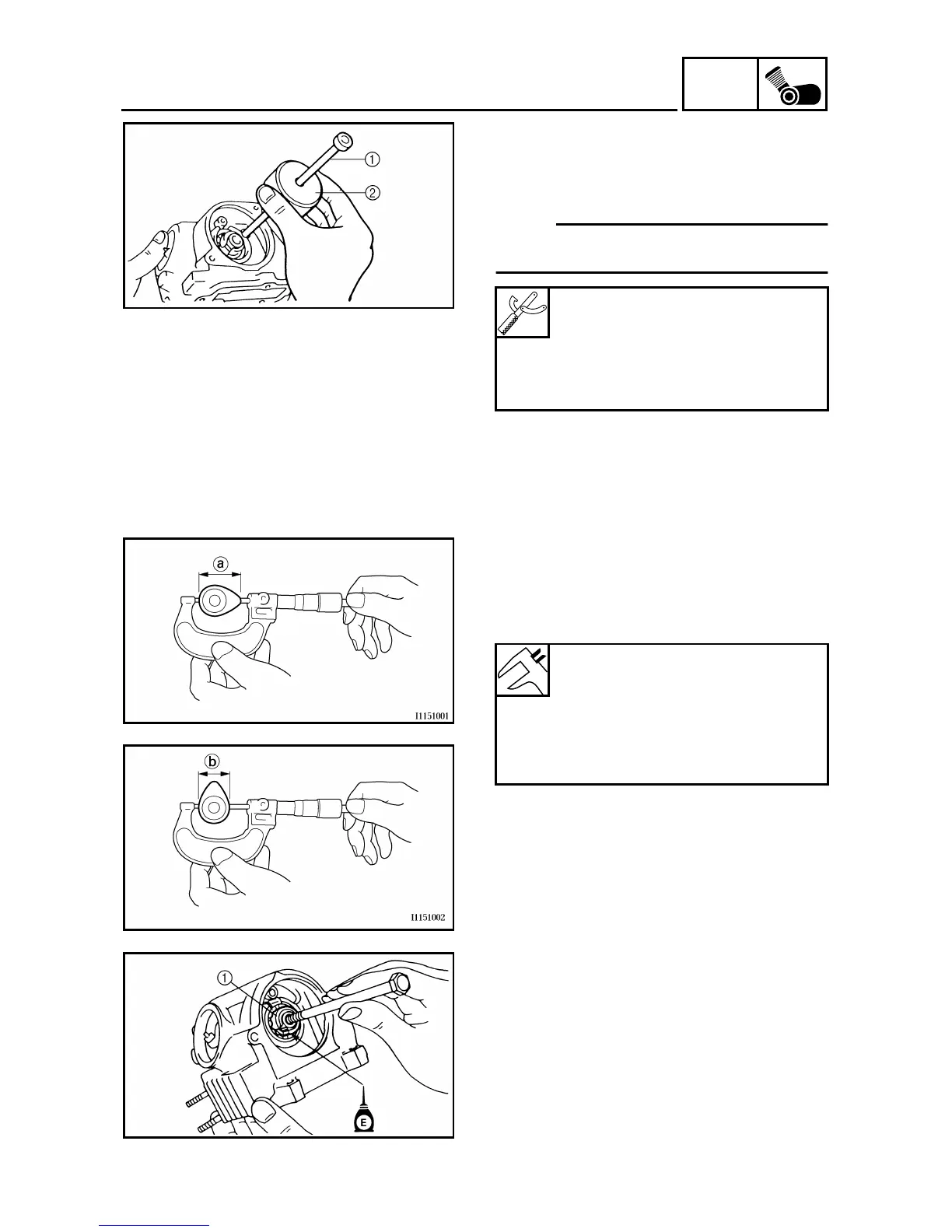

Rocker arm shaft
1. Remove:
● Rocker arm shafts
NOTE:
Use a slide hammer bolt 1 and weight 2 to
slide out the rocker arm shafts.
Slide hammer set:
YU-1083-A
Slide hammer bolt:
90890-01085
Weight:
90890-01084
INSPECTION
Camshaft
1. Measure:
● Cam lobes length a and b
Out of specification → Replace.
Cam lobes length limit:
Intake:
a 25.398 mm (0.9999 in)
b 21.004 mm (0.8269 in)
Exhaust:
a 25.256 mm (0.9943 in)
b 21.017 mm (0.8274 in)
ASSEMBLY AND INSTALLATION
1. Apply:
● Molybdenum disulfide oil
(onto the camshaft cam lobe)
● Engine oil
(onto the camshaft bearing)
2. Install:
● Camshaft 1
To Next Page
