4 - 28

ENG

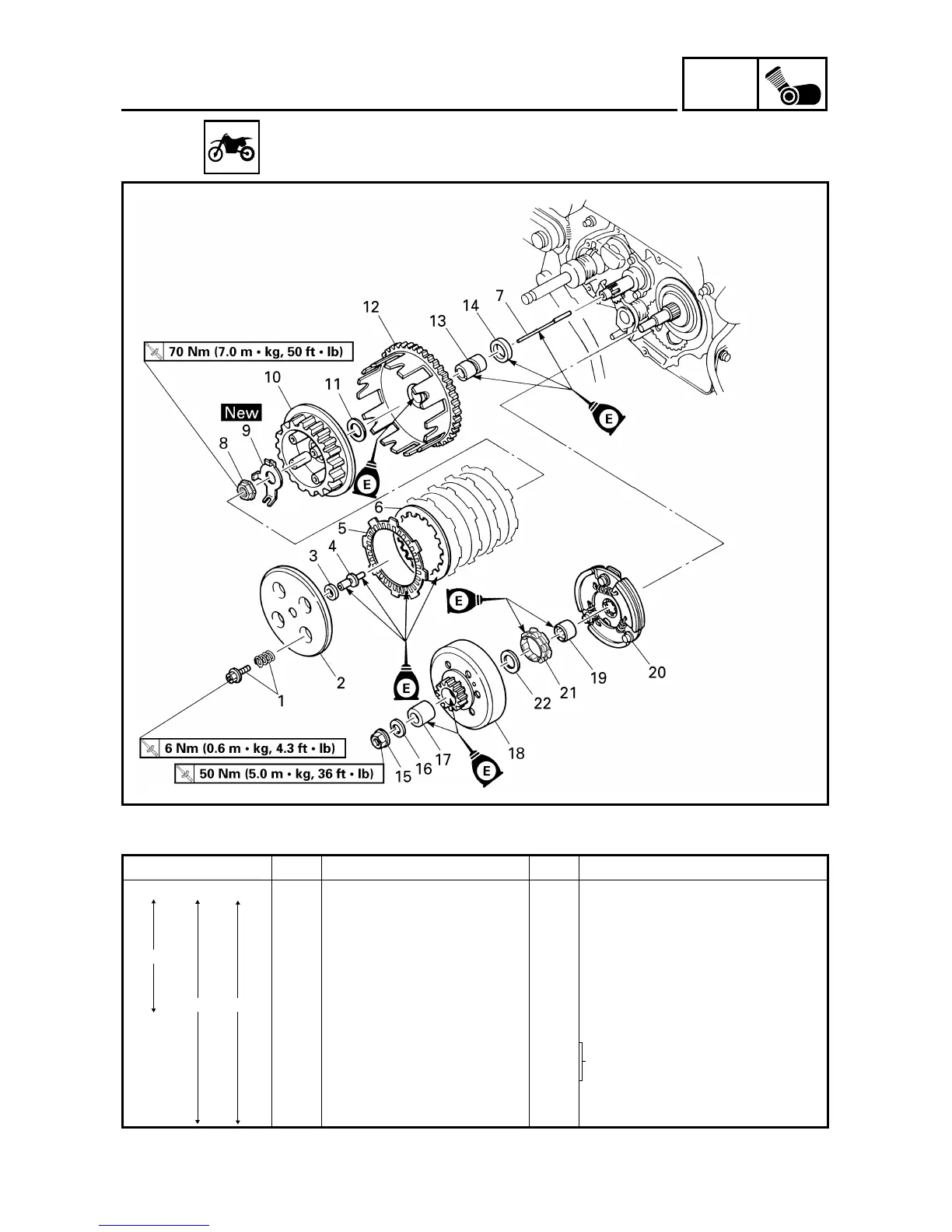

CLUTCH

Extent of removal:

Friction plate and clutch plate removal

Clutch housing removal

Primary clutch removal

Extent of removal Order Part name Q’ty Remarks

CLUTCH REMOVAL

1 Bolt/clutch spring 4/4

2 Pressure plate 1

3 Washer 1

4 Push rod #1 1

5 Friction plate 5

6 Clutch plate 4

7 Push rod #2 1

8 Clutch boss nut 1

Use special tool.

Refer to “REMOVAL POINTS”.

9 Lock washer 1

10 Clutch boss 1

11 Washer 1

12 Clutch housing 1

2 3
