4 - 29
ENG

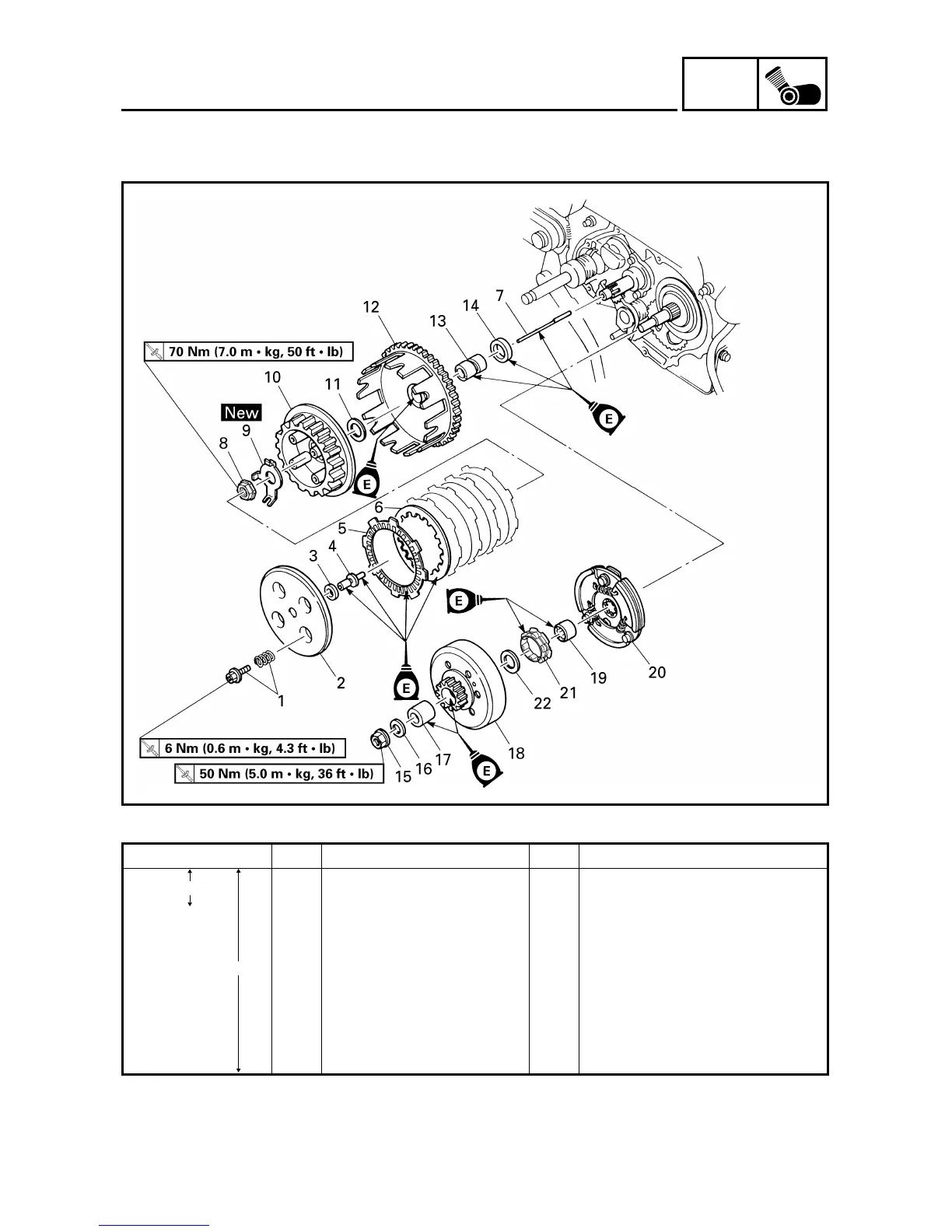

CLUTCH
Extent of removal
Order
Part name
Q
’
ty
Remarks
13
Spacer
1
14
Spacer
1
15
Primary clutch nut
1
Use special tool.
Refer to
“
REMOVAL POINTS
”
.
16
Washer
1
17
Spacer
1
18
Primary clutch housing
1
19
Primary clutch boss
1
20
Clutch carrier
1
21
One-way clutch assembly
1
22
Washer
1
3
2
241
