5 - 7
CHAS
FRONT FORK
EC558000

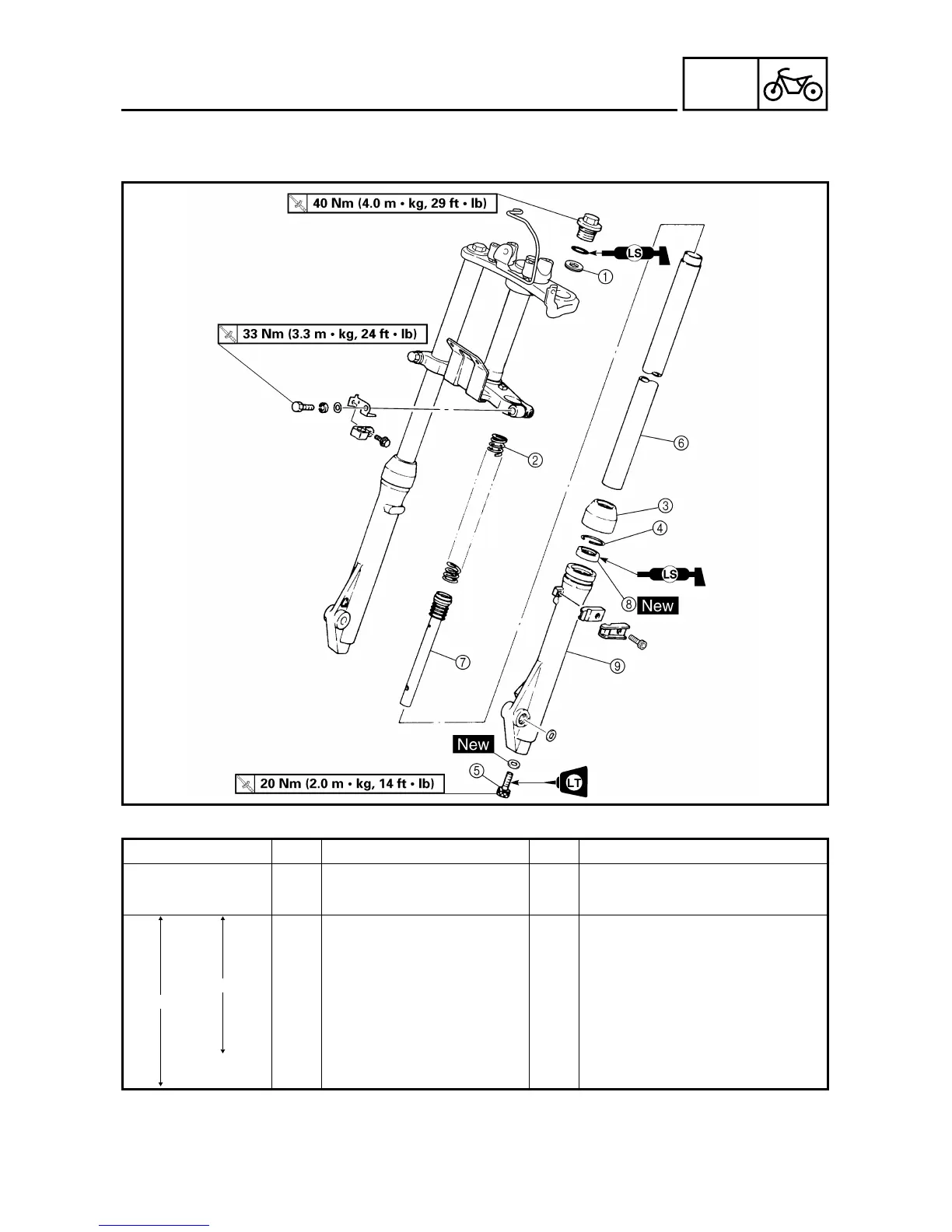

FRONT FORK DISASSEMBLY
Extent of removal:
1
Oil seal removal
2
Damper rod removal
Extent of removal Order Part name Q’ty Remarks
FRONT FORK DISASSEMBLY
Preparation for disas-
sembly
Drain the fork oil.
1
Adjuster 1
2
Fork spring 1
3
Dust cover 1
4
Stopper ring 1
5
Bolt (damper rod) 1 Use special tool.
Refer to “REMOVAL POINTS”.
6
Inner tube 1
7
Damper rod 1
8
Oil seal 1
9
Outer tube 1
1
2
