5 - 8
CHAS

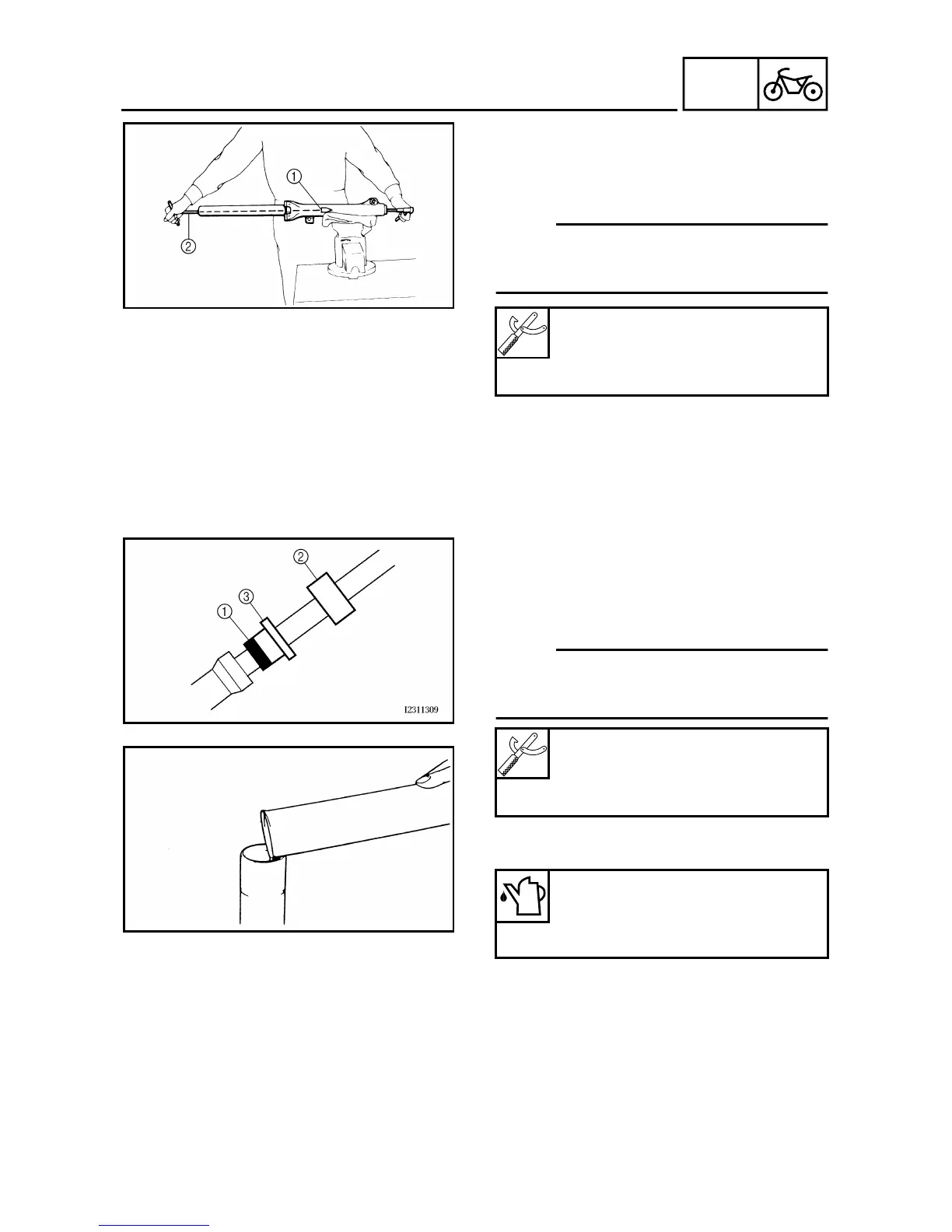

FRONT FORK
REMOVAL POINTS
Inner tube
1. Remove:
● Bolt (damper rod)
NOTE:
While holding the damper rod with the damper
rod holder 1 and T-handle 2, loosen the bolt
(damper rod).
Damper rod holder:
YM-1300/90890-01294
T-handle:
YM-1326/90890-01326
EC555000
ASSEMBLY AND INSTALLATION
Front fork assembly
1. Install:
● Oil seal 1
NOTE:
Press the oil seal into the outer tube with fork
seal driver weight 2 and fork seal driver
attachment 3.
2. Fill:
● Fork oil
3. After filling up, slowly pump the fork up
and down to distribute the fork oil.
Fork seal driver weight:
YM-33963/90890-01184
Fork seal driver attachment:
90890-01186
Oil quantity:
64 cm
3
(2.26 Imp oz, 2.16 US oz)
Recommended oil:
Fork oil 15W or equivalent
