Yamaha TT-R90(T) User Manual

5 - 10
CHAS
HANDLEBAR
TT-R90E
Extent of removal: 1 Handlebar removal
Extent of removal Order Part name Q’ty Remarks

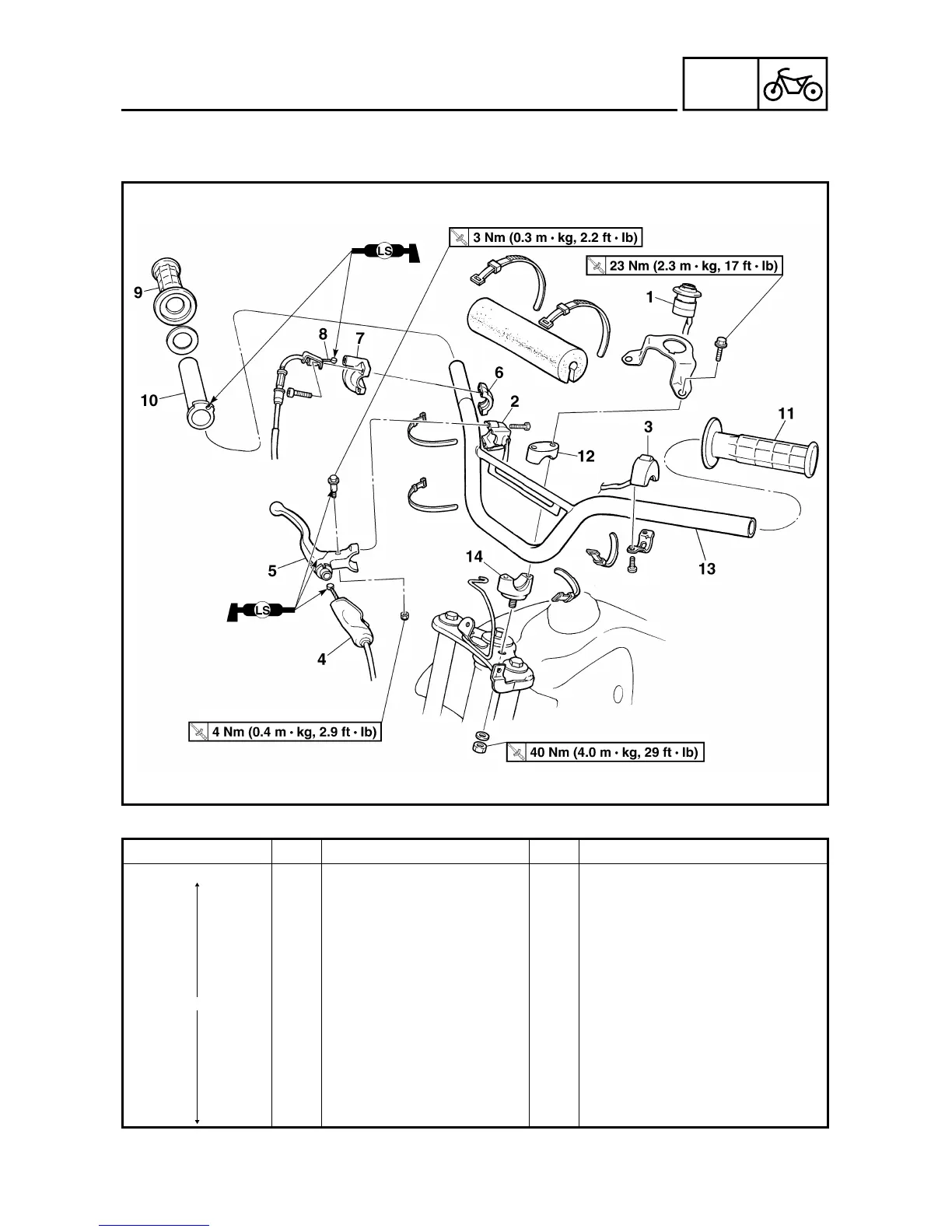

HANDLEBAR REMOVAL
1 Main switch 1
2 Start switch 1
3 “ENGINE STOP” switch 1
4 Brake lever cable 1 Disconnect at the lever side.
5 Brake lever 1
6 Grip cap (lower) 1
7 Grip cap (upper) 1
8 Throttle cable 1 Disconnect at the throttle side.
9 Grip (right) 1
10 Tube guide 1
11 Grip (left) 1
12 Handlebar holder (upper) 2
13 Handlebar 1
14 Handlebar holder (lower) 2
