Yamaha TT-R90(T) User Manual

6 - 12
– +
ELEC

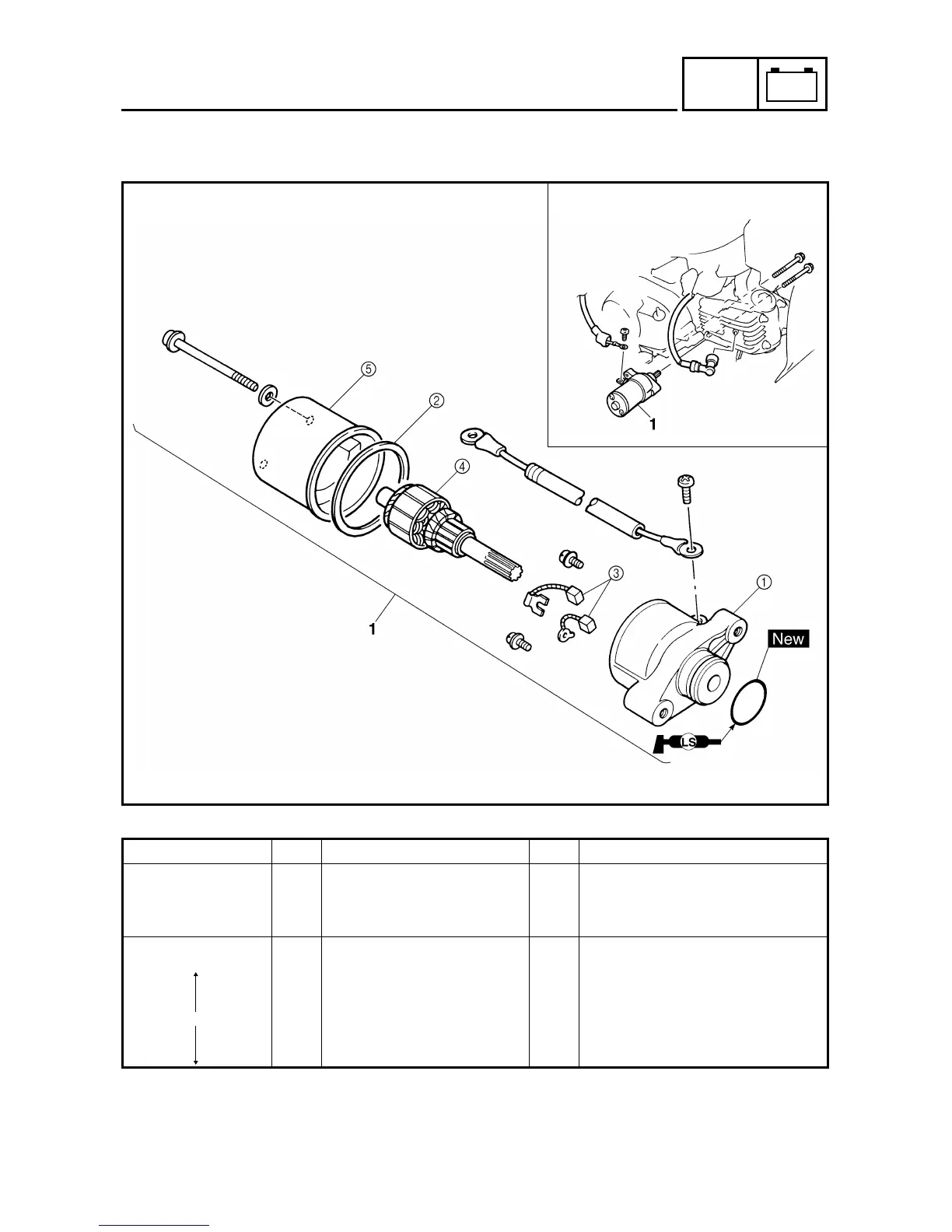

STARTER MOTOR
Extent of removal: 1 Starter motor disassembly
Extent of removal Order Part name Q’ty Remarks
STARTER MOTOR REMOVAL
Preparation for removal Drain the engine oil Refer to “ENGINE OIL REPLACEMENT”
section in the CHAPTER 3.
1 Starter motor 1
STARTER MOTOR DISASSEM-
BLY
1 Front bracket 1
2 Ring 1
3 Brush set 1
4 Armature assembly 1
5 Stator assembly 1
1
ELECTRIC STARTING SYSTEM (TT-R90E)
