REAR BRAKE
4-23

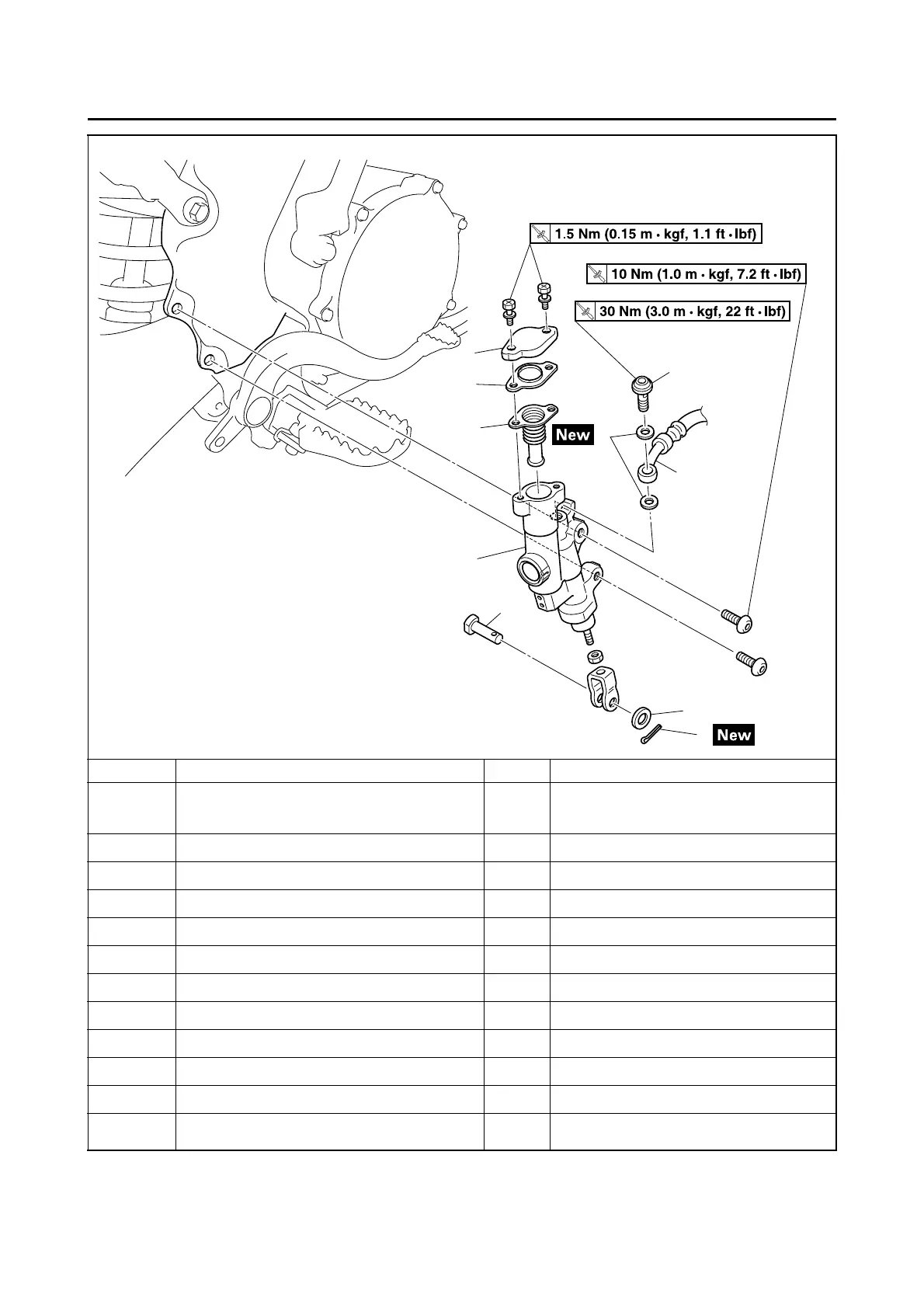

Removing the rear brake master cylinder
Order Part name Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE BRAKE SYSTEM”
on page 3-21.
1 Union bolt 1
2 Copper washers 2
3 Brake hose 1
4 Split pin 1
5 Plain washer 1
6Pin 1
7 Brake master cylinder reservoir cap 1
8 Brake master cylinder reservoir diaphragm plate 1
9 Brake master cylinder reservoir diaphragm 1
10 Rear brake master cylinder 1
For installation, reverse the removal proce-
dure.
1
2
3
4
7
5
8
6
9
T
R
.
.
T
R
.
.
10
T
R
.
.
To Next Page
