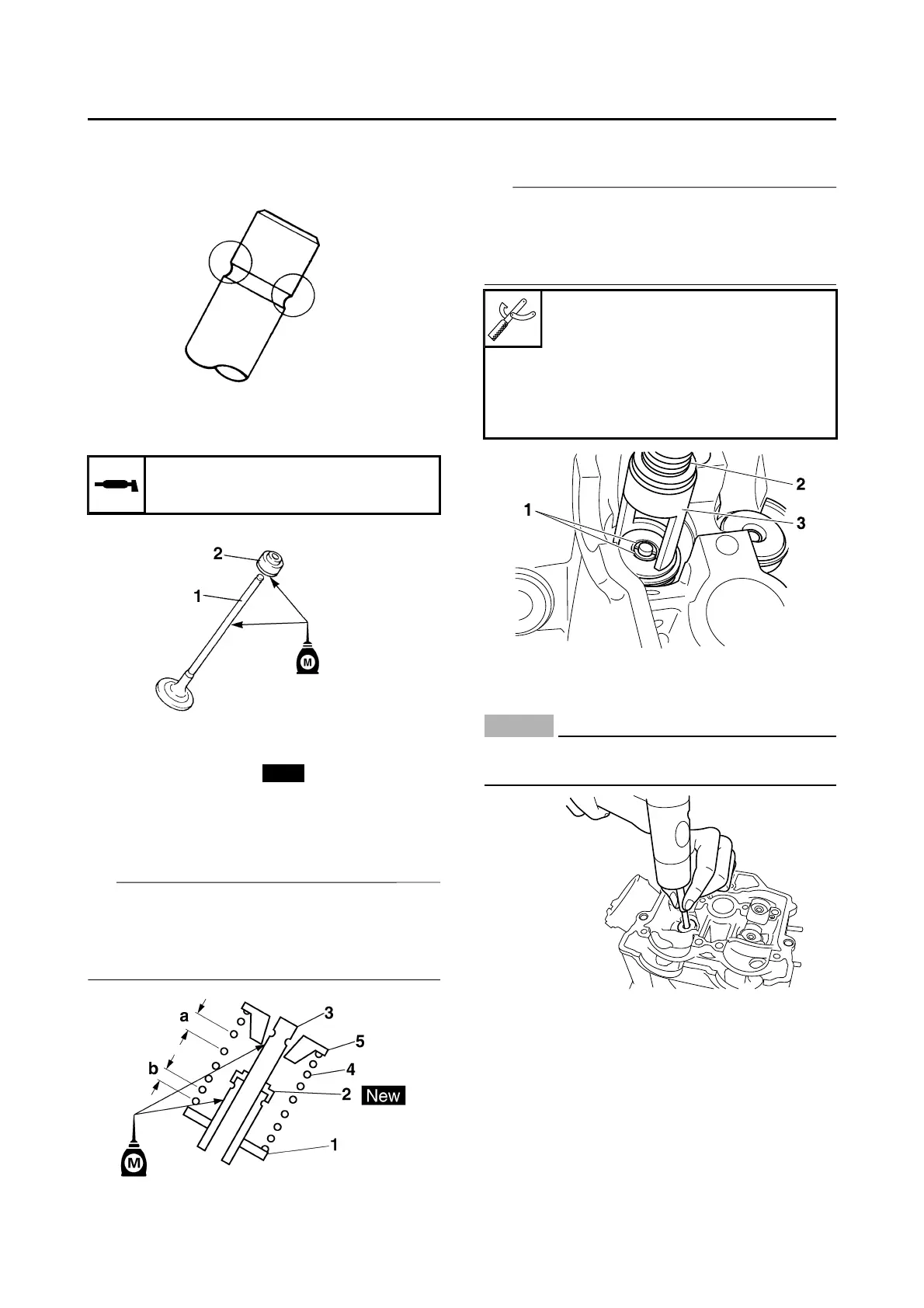

VALVES AND VALVE SPRINGS
5-28
INSTALLING THE VALVES
1. Clean:
• Valve stem end
2. Lubricate:
• Valve stem “1”
• Valve stem seal “2”
3. Install:
• Spring seat “1”
• Valve stem seal “2”
•Valve “3”
• Valve spring “4”
• Valve spring retainer “5”
(to the cylinder head)
• Make sure each valve is installed in its original
place.
• Install the valve springs with the larger pitch
“a” facing up.
4. Install:
• Valve cotter “1”
Install the valve cotters by compressing the
valve spring with the valve spring compressor
“2” and the valve spring compressor adapter
“3”.
5. To fasten the valve cotters onto the valve
stem, lightly tap the valve tip with a soft-face
hammer.
ECA13800
Hitting the valve tip with excessive force
could damage the valve.
Recommended lubricant
Molybdenum disulfide oil
b. Smaller pitch
Valve spring compressor
90890-04019
YM-04019
Valve spring compressor adapter
22 mm
90890-04108
YM-04108
