Yamaha YZ250F(E) - Installing the Brake Caliper Piston; Installing the Rear Brake Caliper

REAR BRAKE
4-27
EAS1SM1155

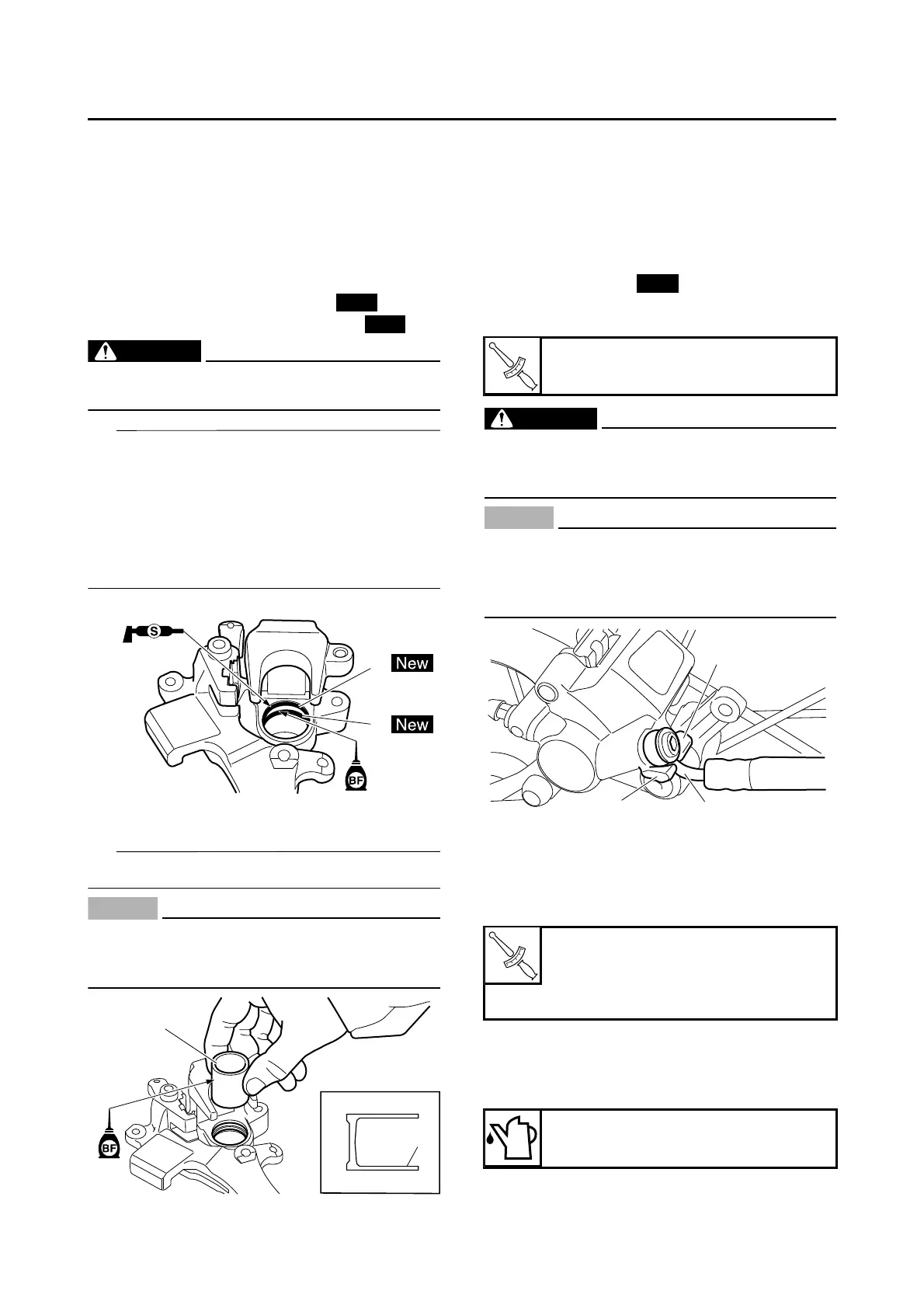

INSTALLING THE BRAKE CALIPER PISTON
1. Clean:
• Brake caliper
• Brake caliper piston seal
• Brake caliper piston dust seal
• Brake caliper piston
Use brake fluid for cleaning.
2. Install:
• Brake caliper piston seals “1”
• Brake caliper piston dust seal “2”
EWA33DD033
WARNING
Always use new brake caliper piston seal
and brake caliper piston dust seal.
TIP
• Apply the brake fluid on the brake caliper pis-
ton seal.
• Apply the silicone grease on the brake caliper
piston dust seal.
• Fit the brake caliper piston seals and brake
caliper piston dust seals onto the slot on
brake caliper correctly.
3. Install:
• Brake caliper piston “1”
TIP
Apply the brake fluid on the piston wall.
ECA33DD047
NOTICE
• Install the piston with its side “a” facing
the brake caliper.
• Never force to insert.
EAS1SM1156
INSTALLING THE REAR BRAKE CALIPER
1. Install:
• Rear brake caliper
• Rear brake caliper bracket
2. Install:
• Rear wheel
Refer to “REAR WHEEL” on page 4-7.
• Copper washers
• Brake hose
• Union bolt
EWA13530
WARNING
Proper brake hose routing is essential to in-
sure safe vehicle operation. Refer to “CA-
BLE ROUTING DIAGRAM” on page 2-31.
ECA14170
NOTICE
Make sure that a bend in its pipe portion “a”
is directed as shown and the brake hose
touches the projection “b” on the brake cal-
iper.
3. Install:
• Brake pad springs
• Brake pads
• Brake pad pin
• Brake pad pin plug
Refer to “CHECKING THE REAR BRAKE
PADS” on page 3-25.
4. Pour brake fluid to the brake fluid reservoir
up to the specified level.
New
New
2
1
1
a
1
Brake hose union bolt
30 Nm (3.0 m·kgf, 22 ft·lbf)
Brake pad pin
17 Nm (1.7 m·kgf, 12 ft·lbf)
Brake pad pin plug
2.5 Nm (0.25 m·kgf, 1.8 ft·lbf)
Recommended brake fluid
DOT 4
New
T
R
.
.
b
b
a
T
R
.
.
