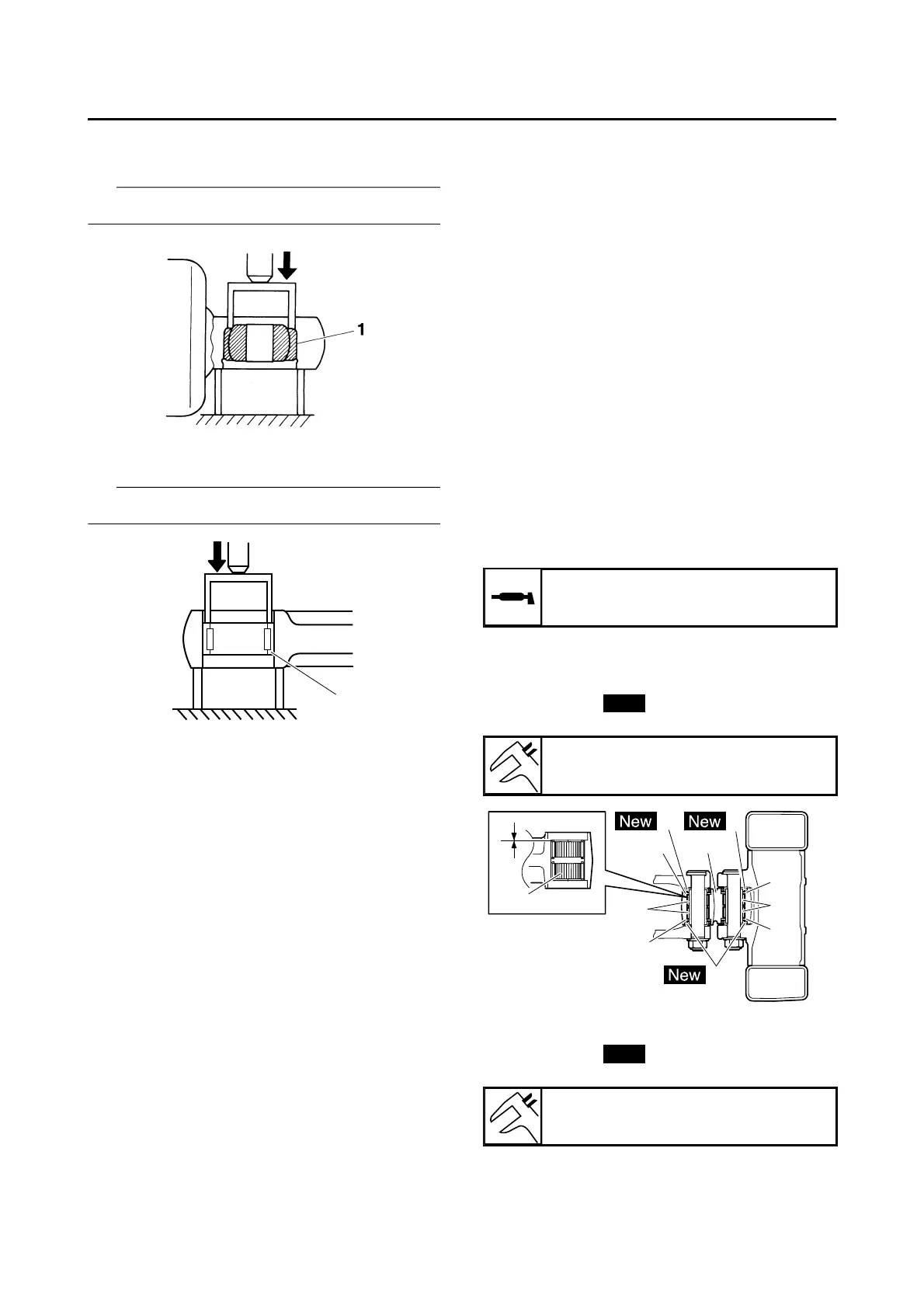

REAR SHOCK ABSORBER ASSEMBLY
4-57
2. Remove:
• Upper bearing “1”
TIP
Remove the bearing by pressing its outer race.
3. Remove:
• Lower bearing “1”
TIP
Remove the bearing by pressing its outer race.
EAS1SM1180
CHECKING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Check:
• Rear shock absorber rod
Bends/damage  Replace the rear shock
absorber assembly.
• Rear shock absorber
Gas leaks/oil leaks  Replace the rear
shock absorber assembly.
•Spring
Damage/wear  Replace.
• Spring guide
Damage/wear  Replace.
• Bearing
Damage/wear  Replace.
•Bolts
Bends/damage/wear  Replace.
EAS1SM1181
CHECKING THE CONNECTING ARM AND
RELAY ARM
1. Check:
• Connecting arm
• Relay arm
Damage/wear  Replace.
2. Check:
• Bearing
• Spacers
Damage/pitting/scratches  Replace the
bearings and spacers as a set.
3. Check:
• Oil seals
Damage/pitting  Replace.
EAS1SM1182
INSTALLING THE RELAY ARM
1. Lubricate:
• Oil seals
• Bearing
• Spacers
• Washers
•Collars
2. Install:
• Bearing “1”
• Washer “2”
• Oil seals “3”
(to relay arm “4”)
3. Install:
• Bearing “1”
• Oil seals “2”
(to connecting arm “3”)
1
Recommended lubricant
Lithium-soap-based grease
Installed depth “a”
0 mm (0 in)
Installed depth “a”
0 mm (0 in)
New
3
3
4
3
2
2
2
2
a
1
1
1
New
