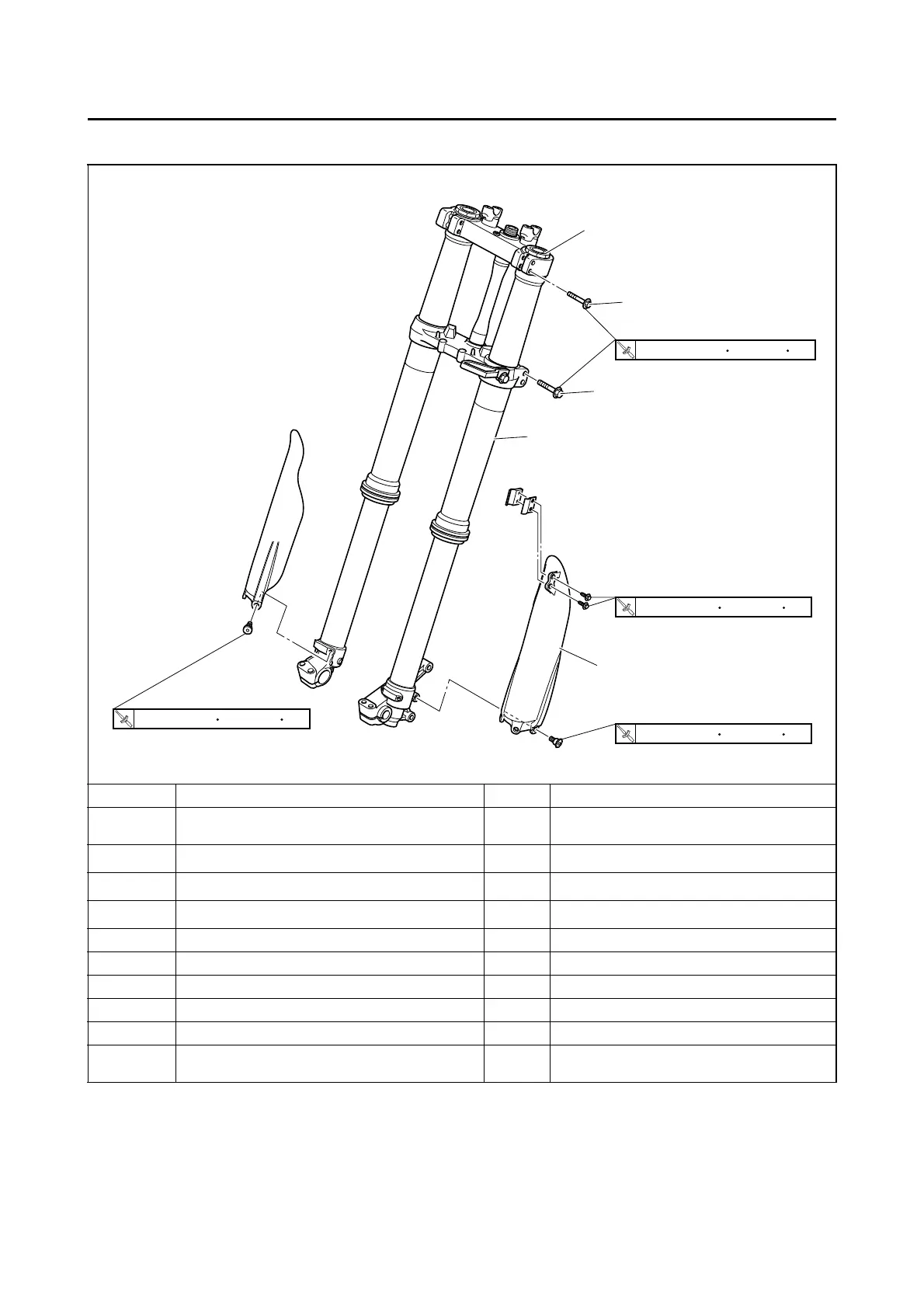

FRONT FORK
Removing the front fork legs
Order Part name Q’ty Remarks
Use a suitable stand to raise the front wheel
off the ground.
Front wheel Refer to “FRONT WHEEL” on page 4-3.
Front brake caliper Refer to “FRONT BRAKE” on page 4-11.
Number plate Refer to “GENERAL CHASSIS” on page 4-1.
1 Protector 1
2 Upper bracket pinch bolts 2 Loosen.
3 Damper assembly 1 Loosen.
4 Lower bracket pinch bolts 2 Loosen.
5 Front fork leg 1
For installation, reverse the removal proce-
dure.
3
2
4
5
1
T
.R.
21 Nm (2.1 m lbf)kgf, 15 ft
T
.R.
9 Nm (0.9 m
lbf)kgf, 6.5 ft
T
.R.
5 Nm (0.5 m
lbf)kgf, 3.6 ft
T
.R.
5 Nm (0.5 m
lbf)kgf, 3.6 ft
