Yamaha YZ250F(E) - Page 162

FRONT FORK
4-38

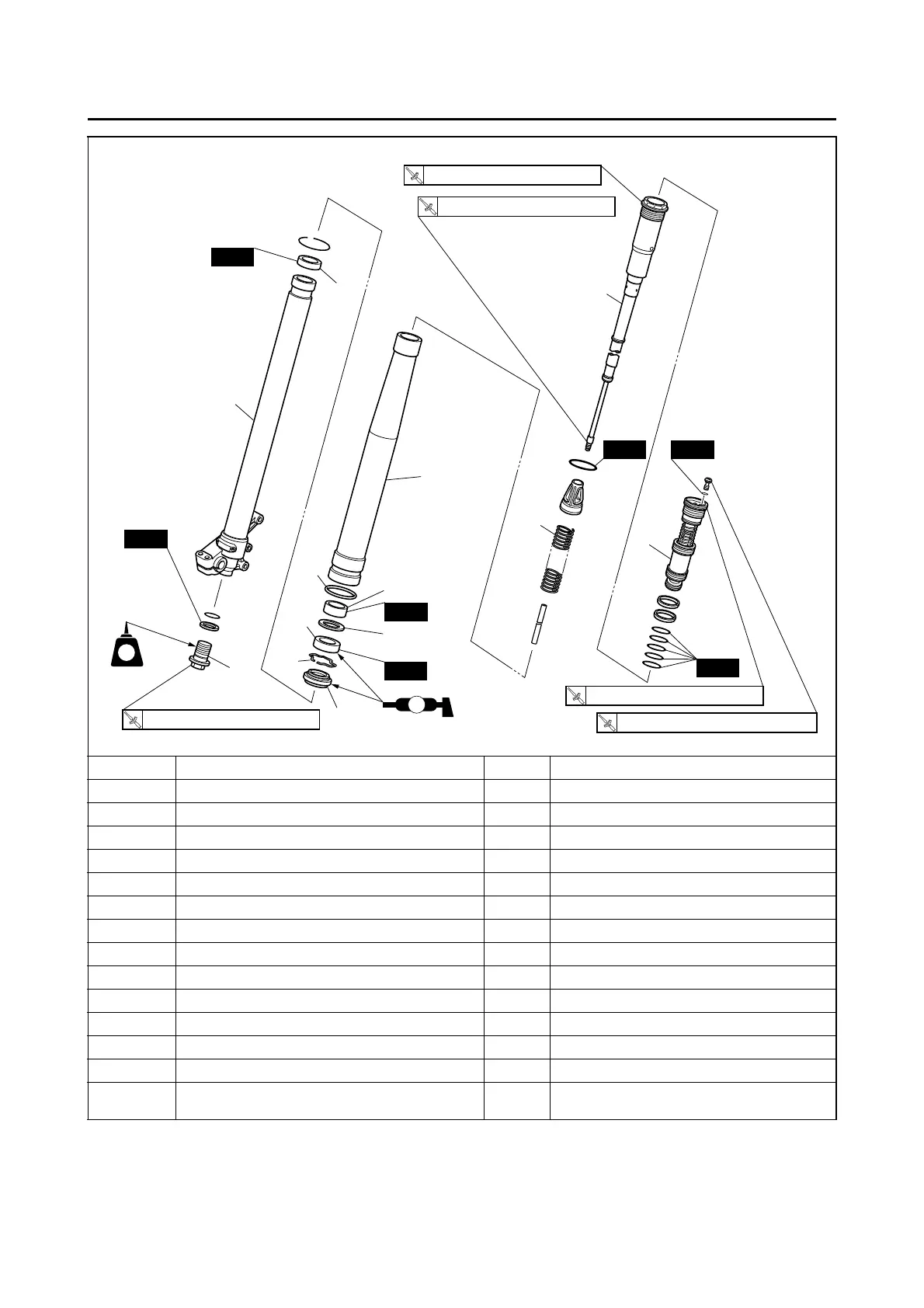

Disassembling the front fork leg
Order Part name Q’ty Remarks
1Adjuster 1
2 Fork spring 1
3 Dust seal 1
4 Stopper ring 1
5 Inner tube 1
6 Outer tube 1
7 Piston metal 1
8Protector guide 1
9 Slide metal 1
10 Oil seal washer 1
11 Oil seals 1
12 Base valve 1
13 Damper assembly 1
For assembly, reverse the disassemble pro-
cedure.
LS
13
2
6
9
8
10
11
4
3
1
5
7
12
New
New
New
New
New
New
New
LT
29 Nm (2.9 m
•
kgf, 21 ft
•
Ibf)
T
.R
.
55 Nm (5.5 m
•
kgf, 40 ft
•
Ibf)
T
.R
.
1.3 Nm (0.13 m
•
kgf, 0.94 ft
•
Ibf)
T
.R
.
28 Nm (2.8 m
•
kgf, 20 ft
•
Ibf)
T
.R
.
30 Nm (3.0 m
•
kgf, 22 ft
•
Ibf)
T
.R
.
