Yamaha YZ250F(E) - AC MAGNETO

AC MAGNETO
5-58
EAS1SM1272
AC MAGNETO

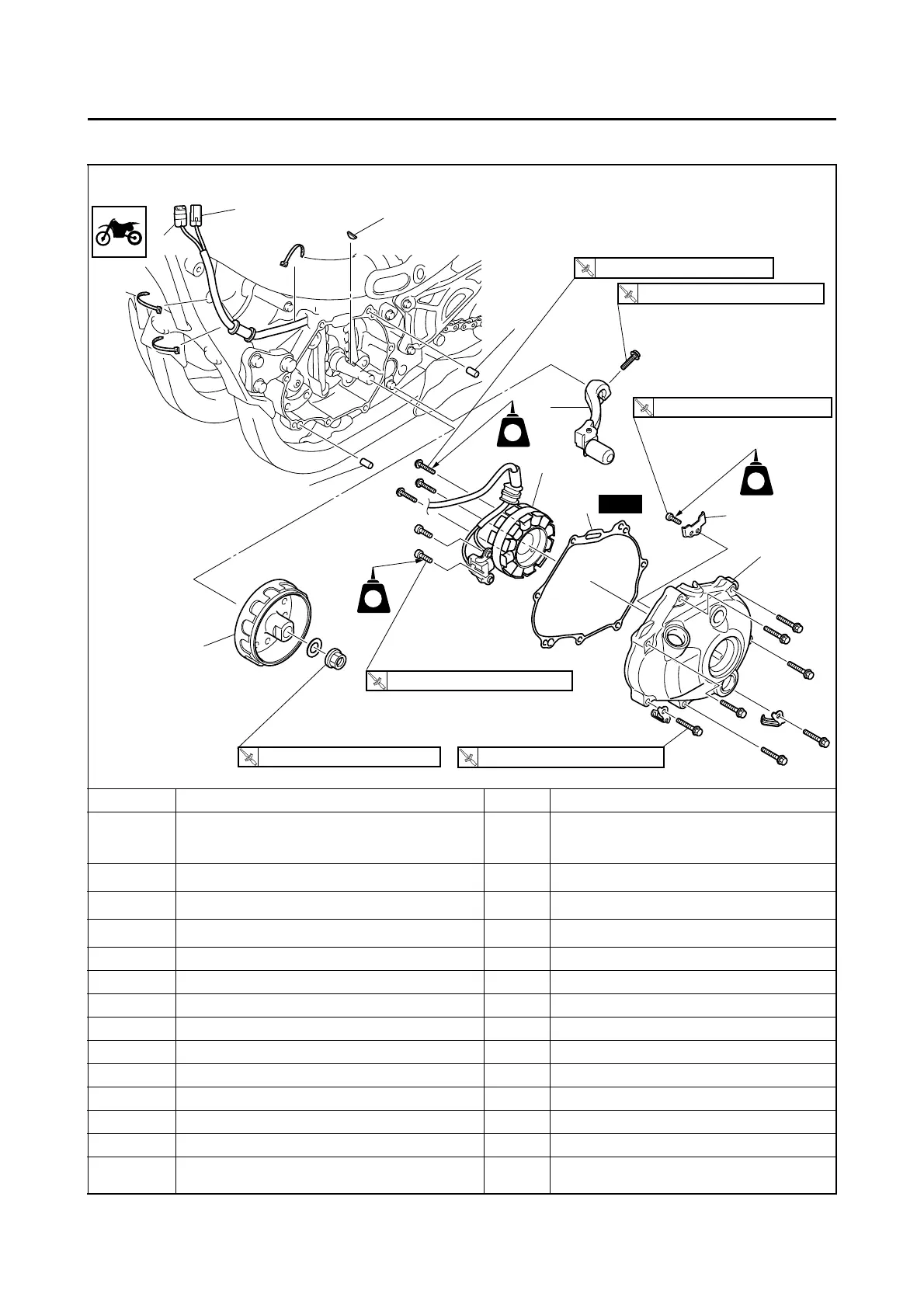

Removing the AC magneto
Order Part name Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-15.
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left) Refer to “GENERAL CHASSIS” on page 4-1.
1 AC magneto lead Disconnect.
2 Crankshaft position sensor lead 1 Disconnect.
3 Shift pedal 1
4 Left crankcase cover 1
5 Gaskets 1
6 Dowel pin 2
7Holder 1
8 Stator assembly 1
9 Rotor 1
10 Woodruff key 1
For installation, reverse the removal proce-
dure.
