Yamaha YZ250F(E) - Installing the Brake Pedal; Installing the Drive Sprocket

ENGINE REMOVAL
5-9
EAS1SM1204

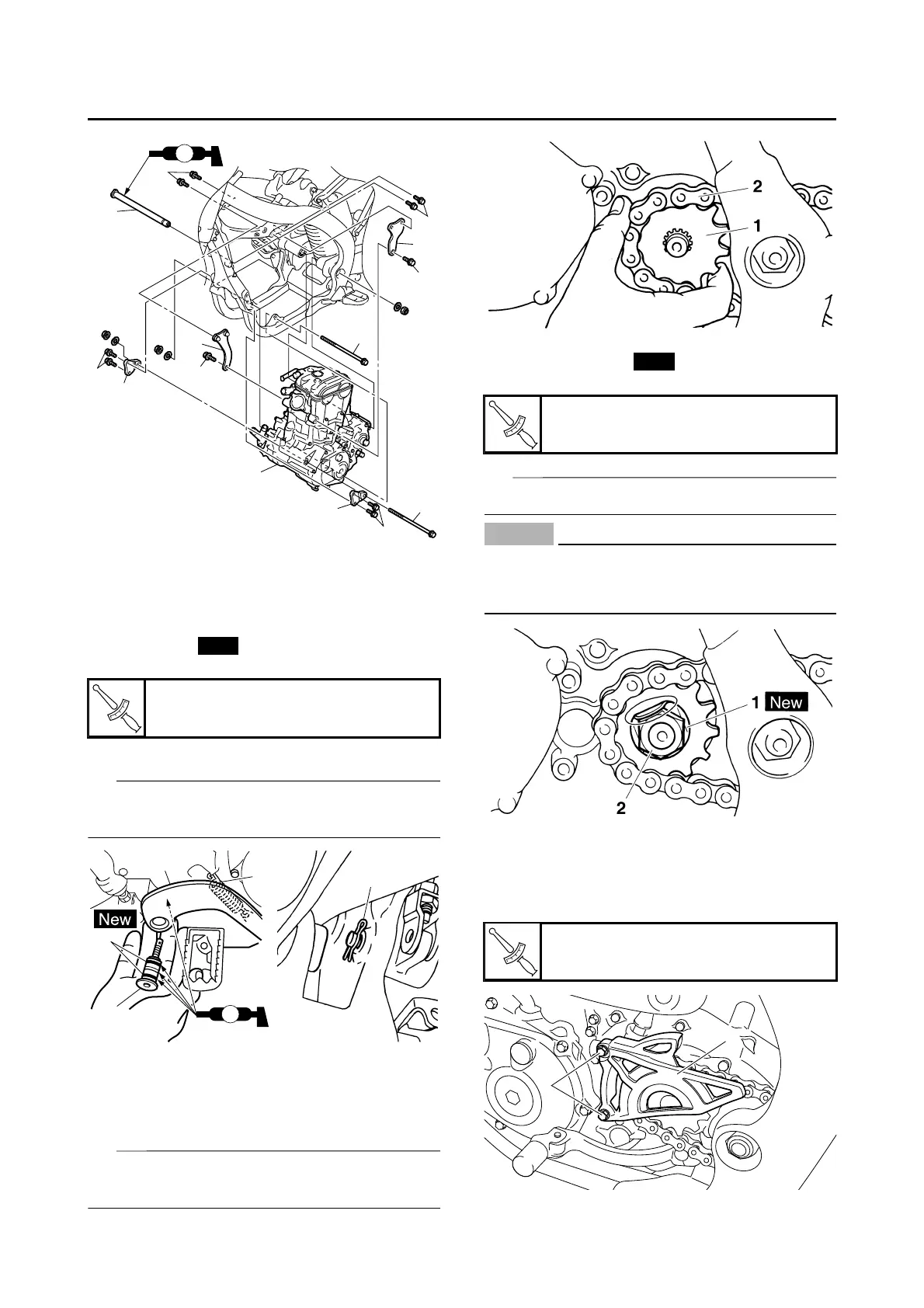

INSTALLING THE BRAKE PEDAL
1. Install:
• Spring “1”
• Brake pedal “2”
• O-rings “3”
• Bolt (brake pedal) “4”
•Clip “5”
TIP
Apply the lithium soap base grease on the bolt,
O-rings and brake pedal bracket.
EAS1SM1205
INSTALLING THE DRIVE SPROCKET
1. Install:
• Drive sprocket “1”
• Drive chain “2”
TIP
Install the drive sprocket together with the drive
chain.
2. Install:
• Lock washer “1”
• Nut (drive sprocket) “2”
TIP
Tighten the nut while applying the rear brake.
ECA33DD040
NOTICE
Make sure to tighten to specification; other-
wise, it may damage the other part that is
fastened together.
3. Bend the lock washer tab to lock the nut.
4. Install:
• Drive sprocket guide
• Drive sprocket cover “1”
• Bolt (drive sprocket cover) “2”
Bolt (brake pedal)
26 Nm (2.6 m·kgf, 19 ft·lbf)
M
7
8
9
9
8
7
4
1
2
4
3
5
5
6
New
T
R
.
.
1
2
3
4
5
LS
Nut (drive sprocket)
75 Nm (7.5 m·kgf, 54 ft·lbf)
Bolt (drive sprocket cover)
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
New
T
R
.
.
T
R
.
.
2
1
