TIGHTENING TORQUES
2-12
EAS20320
TIGHTENING TORQUES
EAS1SM1056
GENERAL TIGHTENING TORQUE SPECIFI-
CATIONS
This chart specifies tightening torques for stan-
dard fasteners with a standard ISO thread
pitch. Tightening torque specifications for spe-
cial components or assemblies are provided for
each chapter of this manual. To avoid warpage,
tighten multi-fastener assemblies in a criss-
cross pattern and progressive stages until the
specified tightening torque is reached. Unless
otherwise specified, tightening torque specifi-
cations require clean, dry threads. Compo-
nents should be at room temperature.

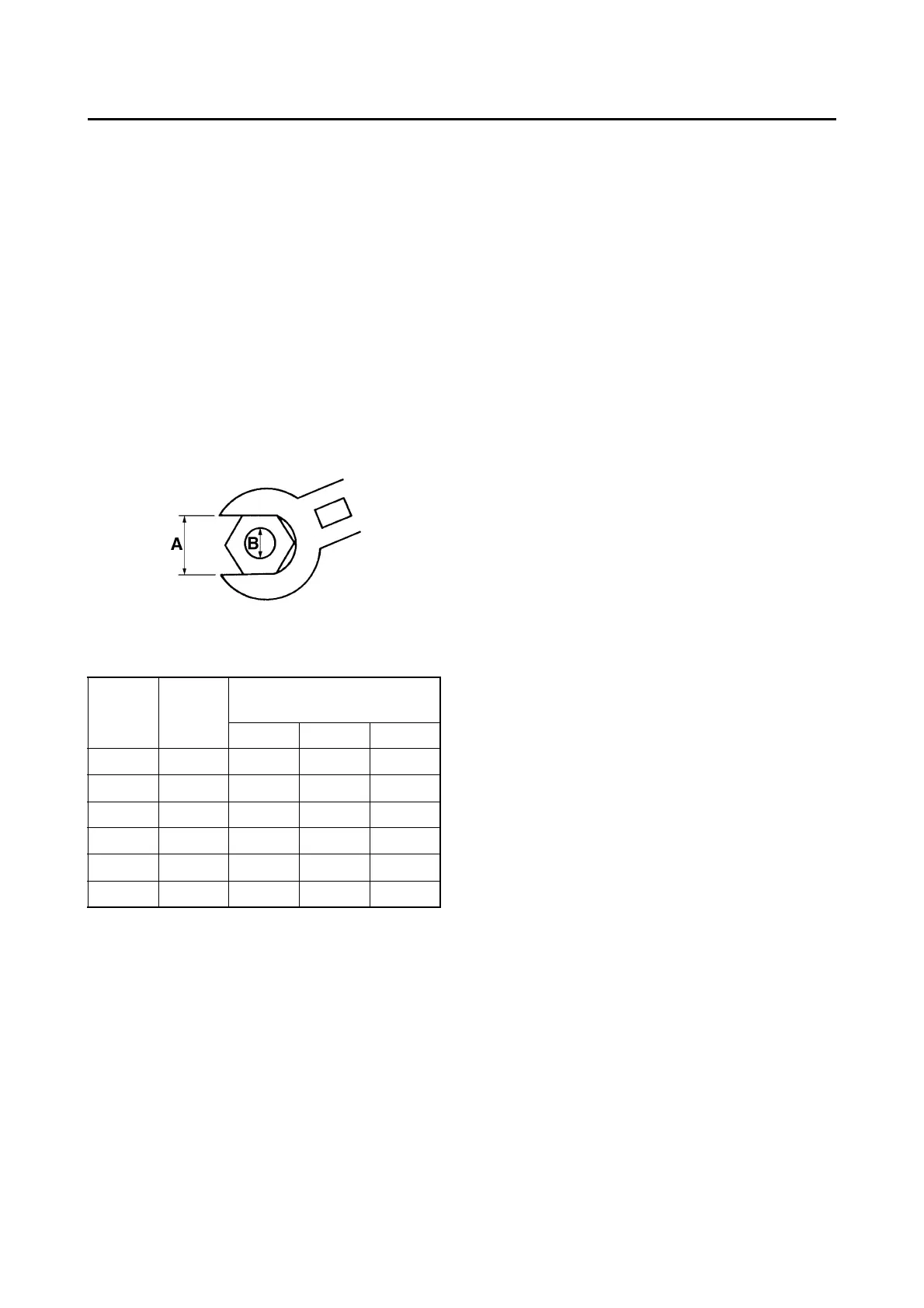

A. Distance between flats
B. Outside thread diameter
A (nut)
B
(bolt)
General tightening
torques
Nm m·kgf ft·lbf
10 mm 6 mm 6 0.6 4.3
12 mm 8 mm 15 1.5 11
14 mm 10 mm 30 3.0 22
17 mm 12 mm 55 5.5 40
19 mm 14 mm 85 8.5 61
22 mm 16 mm 130 13.0 94
