Yamaha YZ250F(E) - Page 159

HANDLEBAR
4-35

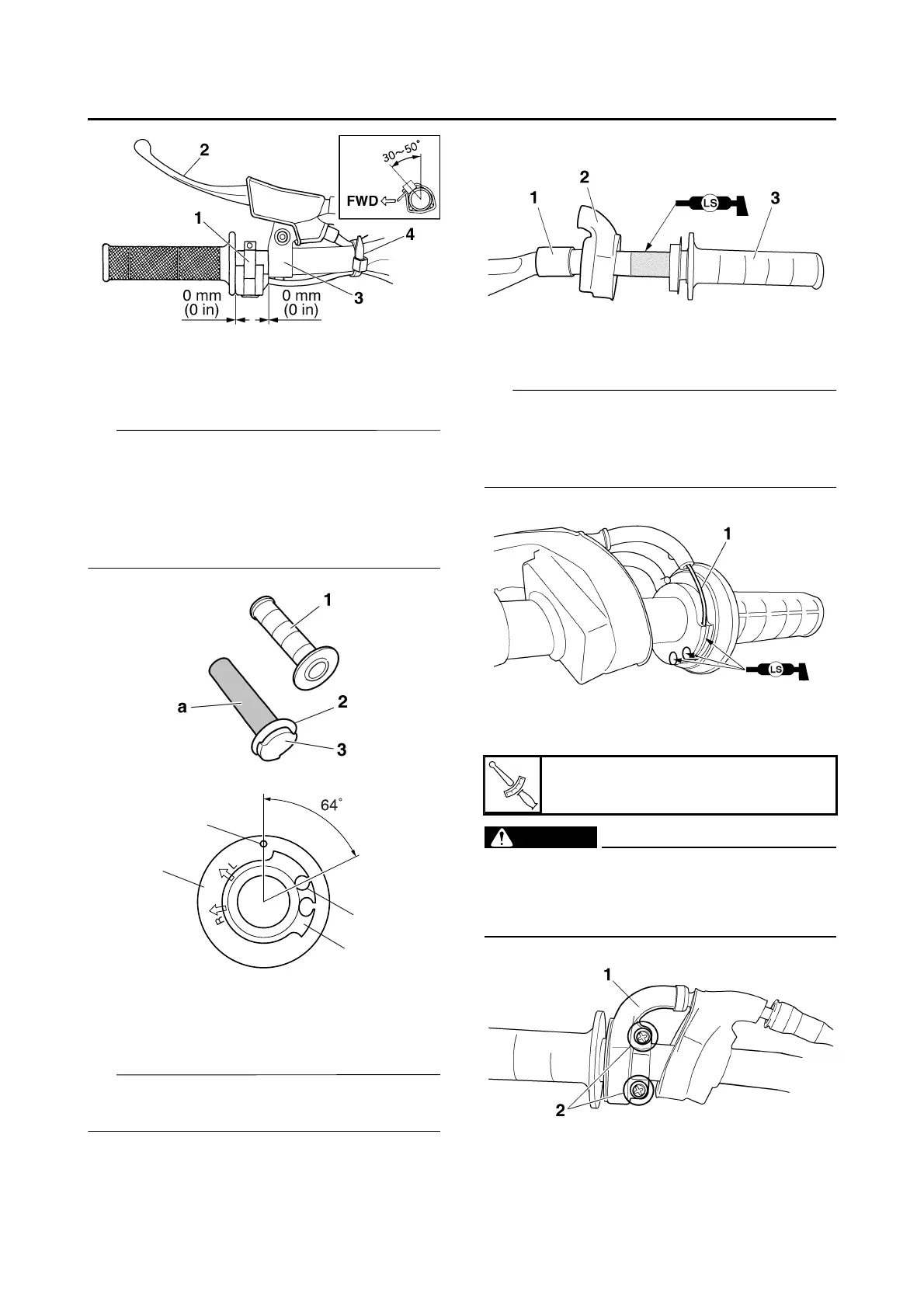

6. Install:
• Right grip “1”
• Collar “2”
Apply adhesive to the tube guide “3”.
TIP
• Before applying the adhesive, wipe off grease
or oil on the tube guide surface “a” with a lac-
quer thinner.
• Install the grip to the tube guide so that the
grip match mark “b” and tube guide slot “c”
form the angle as shown.
7. Install:
• Collar “1”
• Rubber cover “2”
• Throttle grip “3”
TIP
Apply the lithium soap base grease on the
throttle grip sliding surface.
8. Install:
• Throttle cables “1”
TIP
Slightly coat the end of throttle cable and inside
of throttle grip with lithium-soap-based grease.
Then, mount the throttle grip onto the handle-
bar.
9. Install:
• Throttle cable housings “1”
• Screw (throttle cable housings) “2”
EWA1DX5001
WARNING
After tightening the throttle cable housing
screws, check that the throttle grip “3”
moves smoothly. If it does not, retighten the
screws for adjustment.
1
b
c
3
Screw (throttle cable housings)
3.8 Nm (0.38 m·kgf, 2.8 ft·lbf)
