Yamaha YZ250F(E) - Page 172

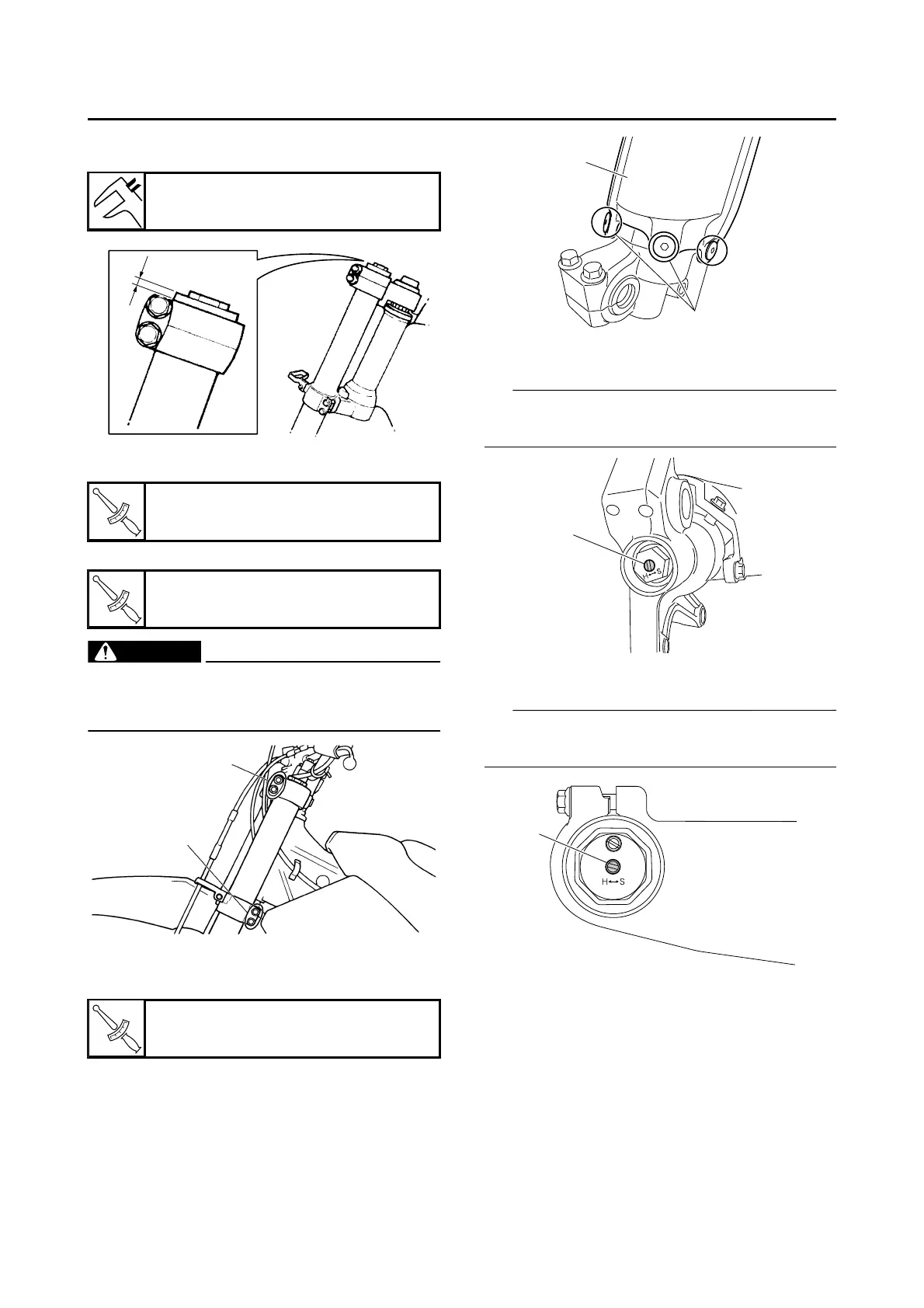

FRONT FORK
4-48
3. Adjust:
• Front fork top end “a”
4. Tighten:
• Pinch bolt (upper bracket) “1”
• Pinch bolt (lower bracket) “2”
EWA33DD044
WARNING
Tighten the lower bracket to specified
torque. If torqued too much, it may cause
the front fork to malfunction.
5. Install:
• Protector “1”
• Bolt (protector) “2”
6. Adjust:
• Rebound damping force
TIP
Turn in the damping adjuster “1” finger-tight
and then turn out to the originally set position.
7. Adjust:
• Compression damping force
TIP
Turn in the damping adjuster “1” finger-tight
and then turn out to the originally set position.
Front fork top end (standard) “a”
5 mm (0.20 in)
Upper bracket pinch bolts
21 Nm (2.1 m·kgf, 15 ft·lbf)
Lower bracket pinch bolts
21 Nm (2.1 m·kgf, 15 ft·lbf)
Bolt (protector)
5 Nm (0.5 m·kgf, 3.6 ft·lbf)
a
T
R
.
.
T
R
.
.
2
1
T
R
.
.
1
2
1
1
