Yamaha YZ250F(E) - Page 212

CYLINDER HEAD
5-19
5 Timing chain guide (intake side) 1
6 Oil check bolt 1
For installation, reverse the removal proce-
dure.

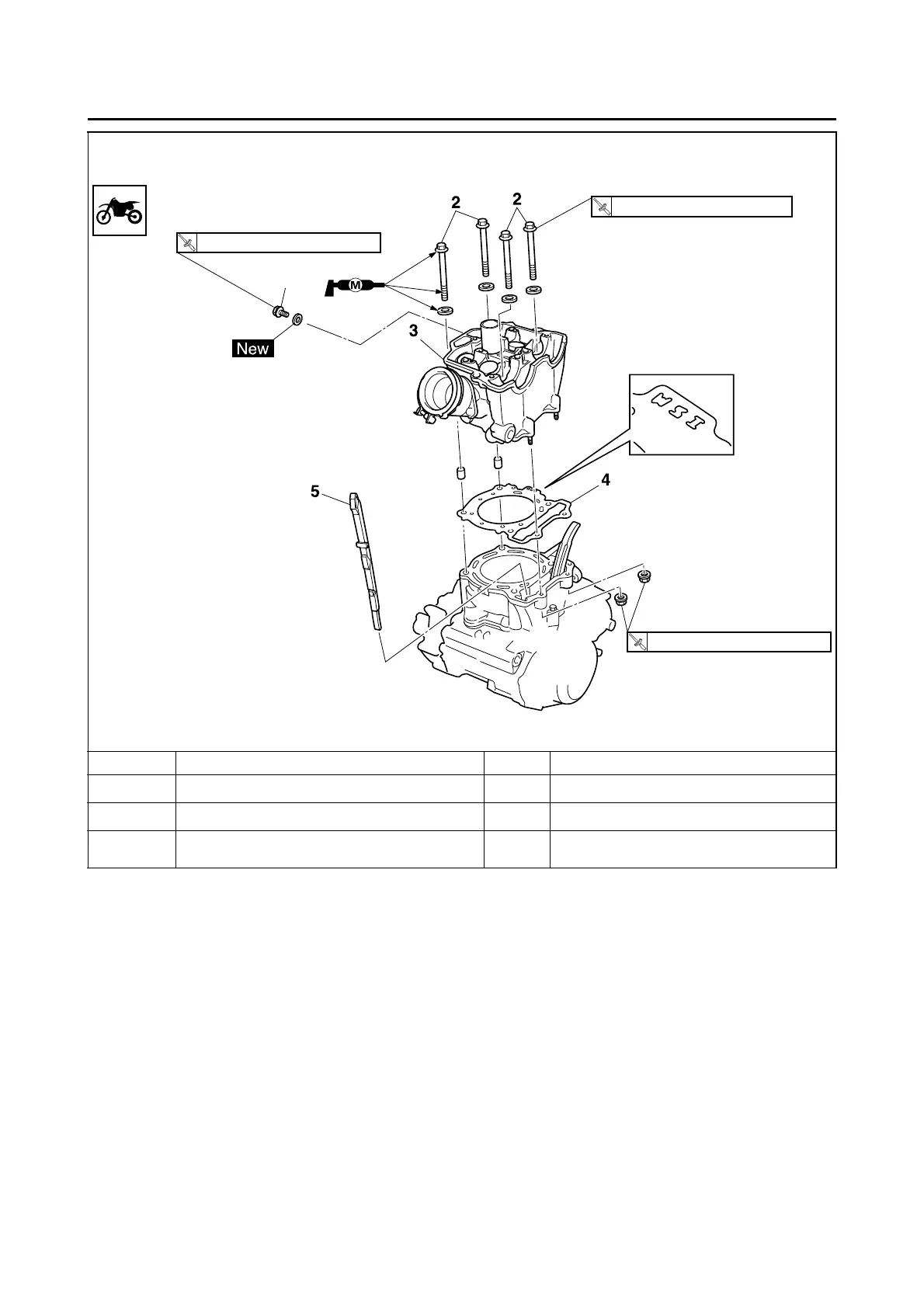

Removing the cylinder head
Order Part name Q’ty Remarks
6
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R
.
33 Nm (3.3 m
•
kgf, 24 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.
R
.
