WATER PUMP

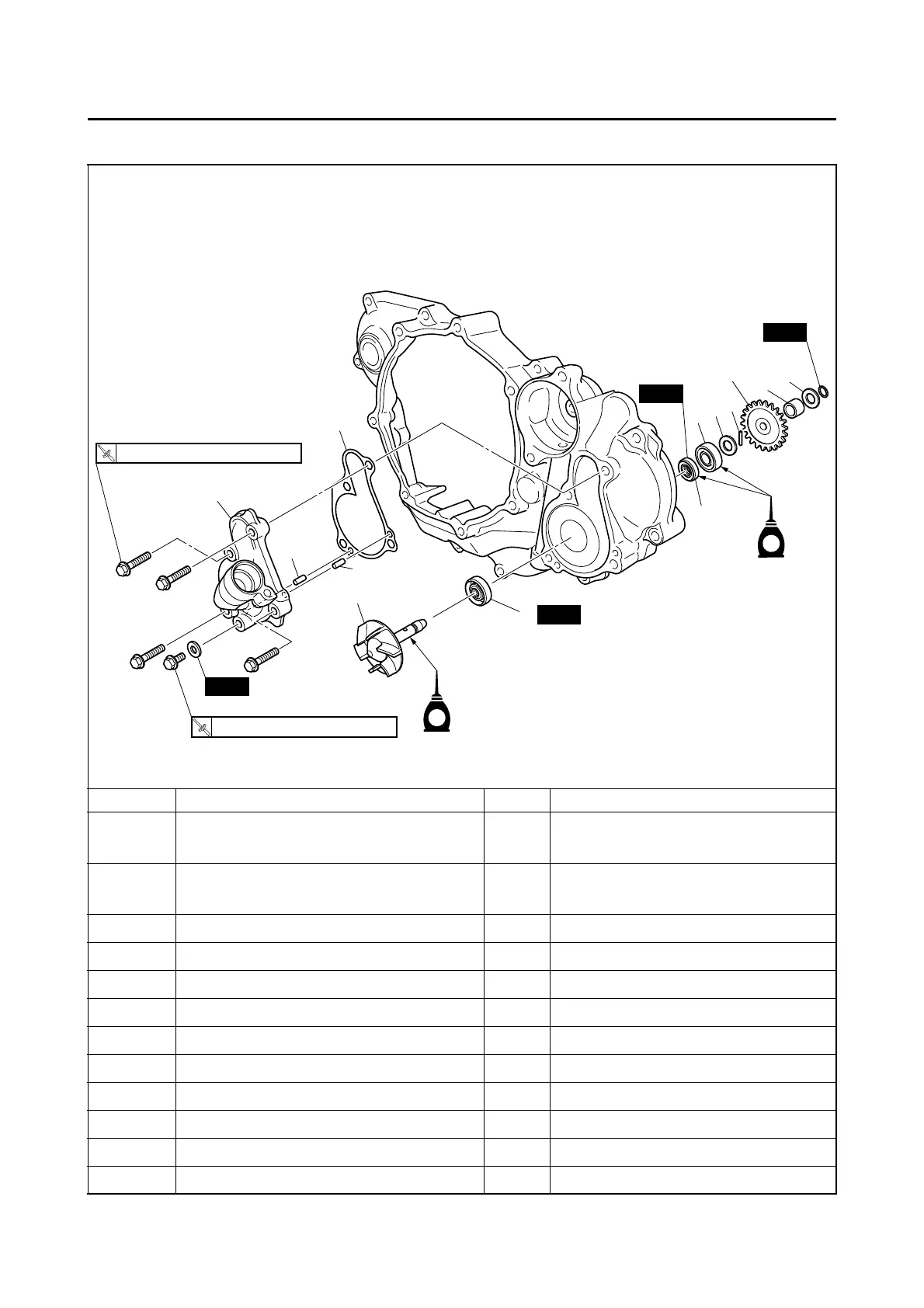

Removing the water pump
Order Part name Q’ty Remarks
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-8.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-15.
Right crankcase cover Refer to “CLUTCH” on page 5-35.
1 Water pump housing 1
2 Dowel pin 2
3Gasket 1
4Washer 2
5Collar 1
6Gear 1
7Pin 1
8 Impeller shaft assembly 1
9 Oil seal 1
9
8
2
2
3
1
10
6
7
5
4
4
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
New
New
New
E
11
New
E
