WATER PUMP
6-7

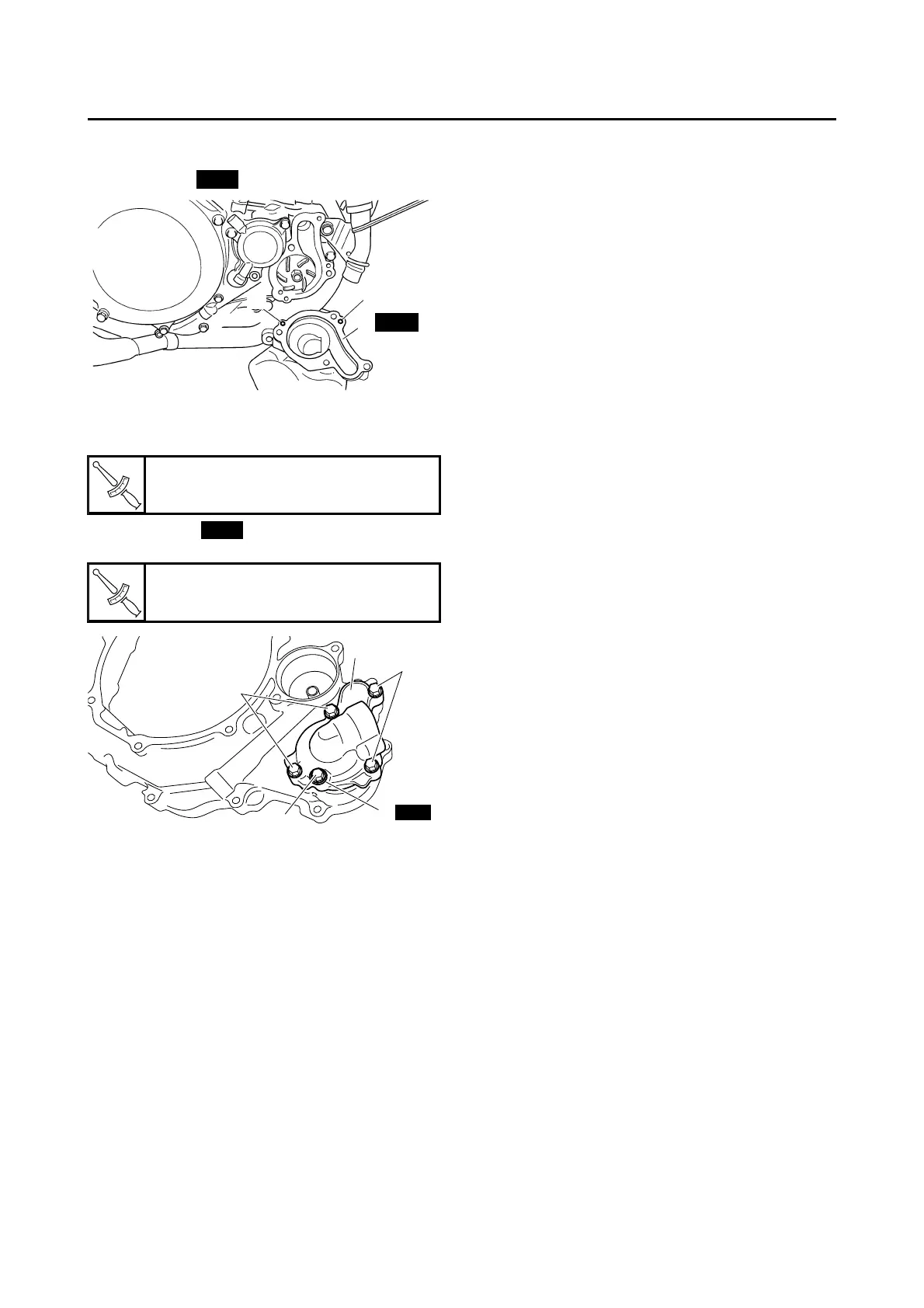

2. Install:
• Dowel pin “1”
• Gasket “2”
3. Install:
• Water pump housing “1”
• Water pump housing bolt “2”
• Washer “3”
• Coolant drain bolt “4”
Water pump housing bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Coolant drain bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
New
