THROTTLE BODY
7-7

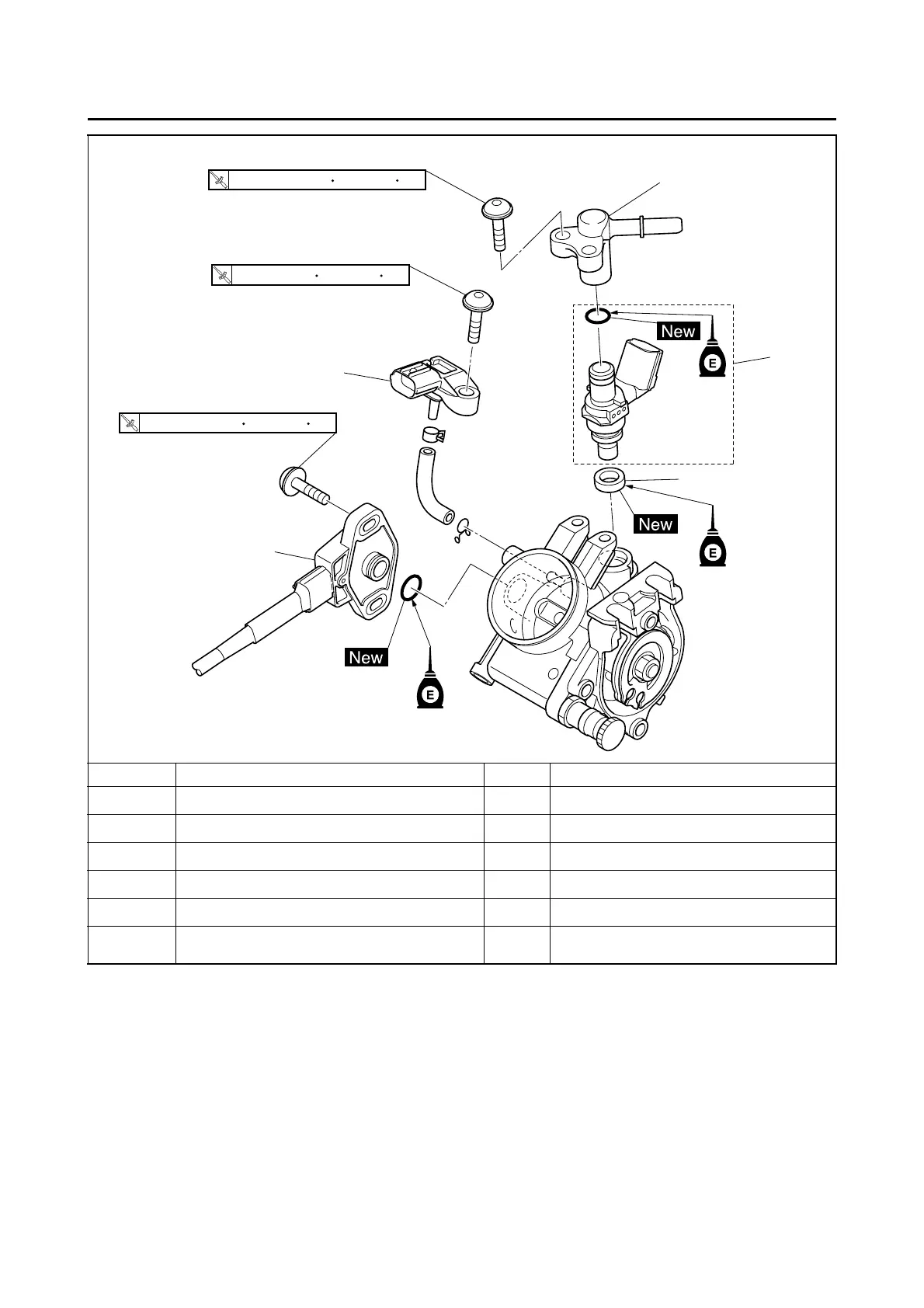

Removing the injector
Order Part name Q’ty Remarks
1 Fuel inlet pipe 1
2Injector 1
3 Gaskets 1
4 Throttle position sensor 1
5 Intake air pressure sensor 1
For installation, reverse the removal proce-
dure.
1
2
(2)
(2)
5
4
3
T
.R.
3.4 Nm (0.34 m
lbf)
kgf, 2.5 ft
T
.R.
5 Nm (0.5 m
lbf)kgf, 3.6 ft
T
.R.
3.4 Nm (0.34 m
lbf)
kgf, 2.5 ft
