5.2 European Standards
YASKAWA SIEPC71061753C GA500 Technical Manual 169
■ Guarding Against Debris
When you install IP20/UL Open type drives, use an enclosure that does not let unwanted material enter the drive
from above or below.
■ Electrical Installation
Refer to Figure 5.2 for an example of a drive that is wired to comply with the CE Low Voltage Directive.

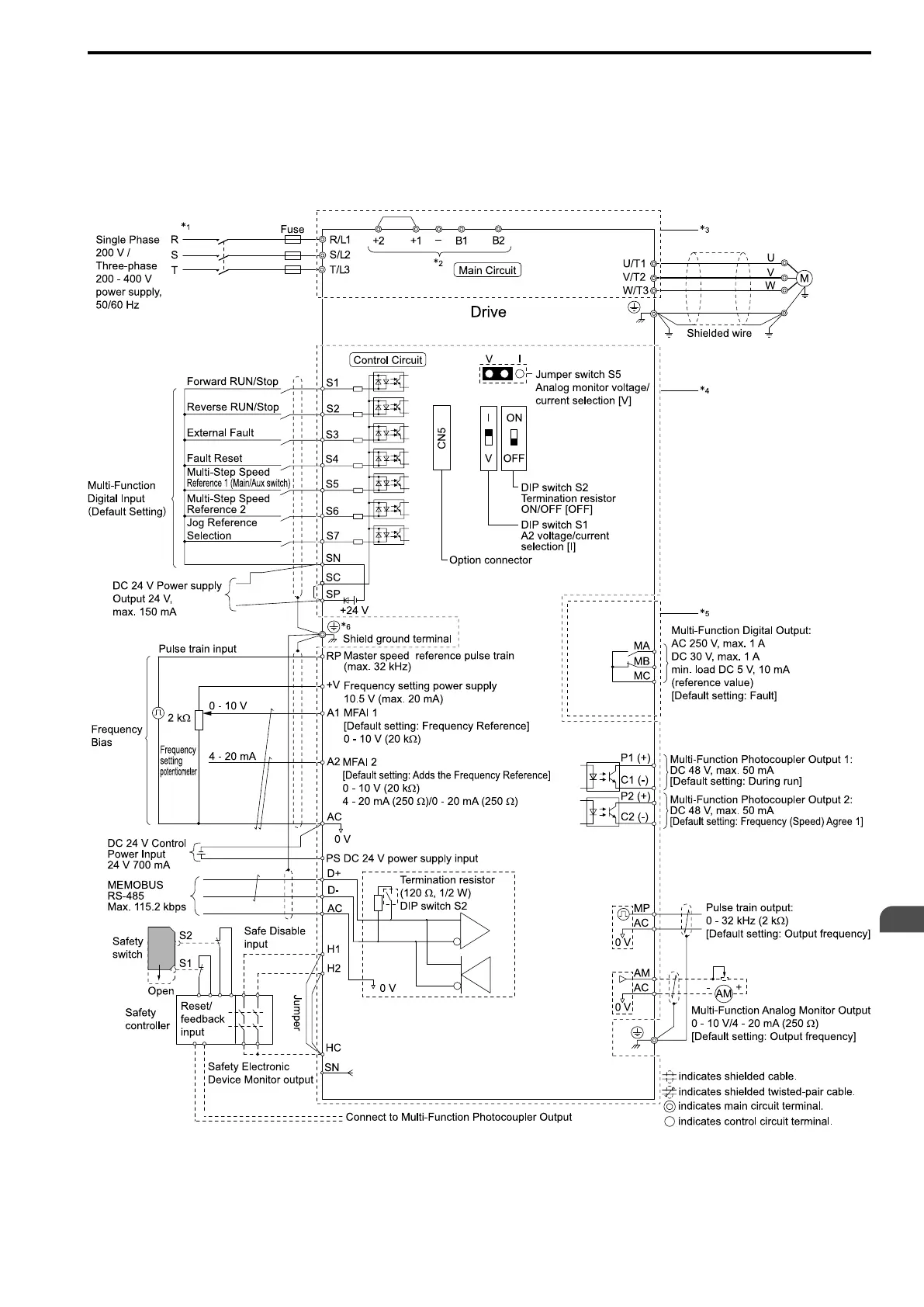

Figure 5.2 Wiring Diagram for CE Low Voltage Directive Compliance
*1 Set L8-05 = 1 [Output Phase Loss Protect Select = Enabled] or set the wiring sequence to prevent input phase loss.
To Next Page
