8.4 Replace Cooling Fans
YASKAWA SIEPC71061753C GA500 Technical Manual 313
2. Pull the cooling fan straight up from the drive. Disconnect the power supply connector and remove the fan
from the drive.
A - Cooling fan

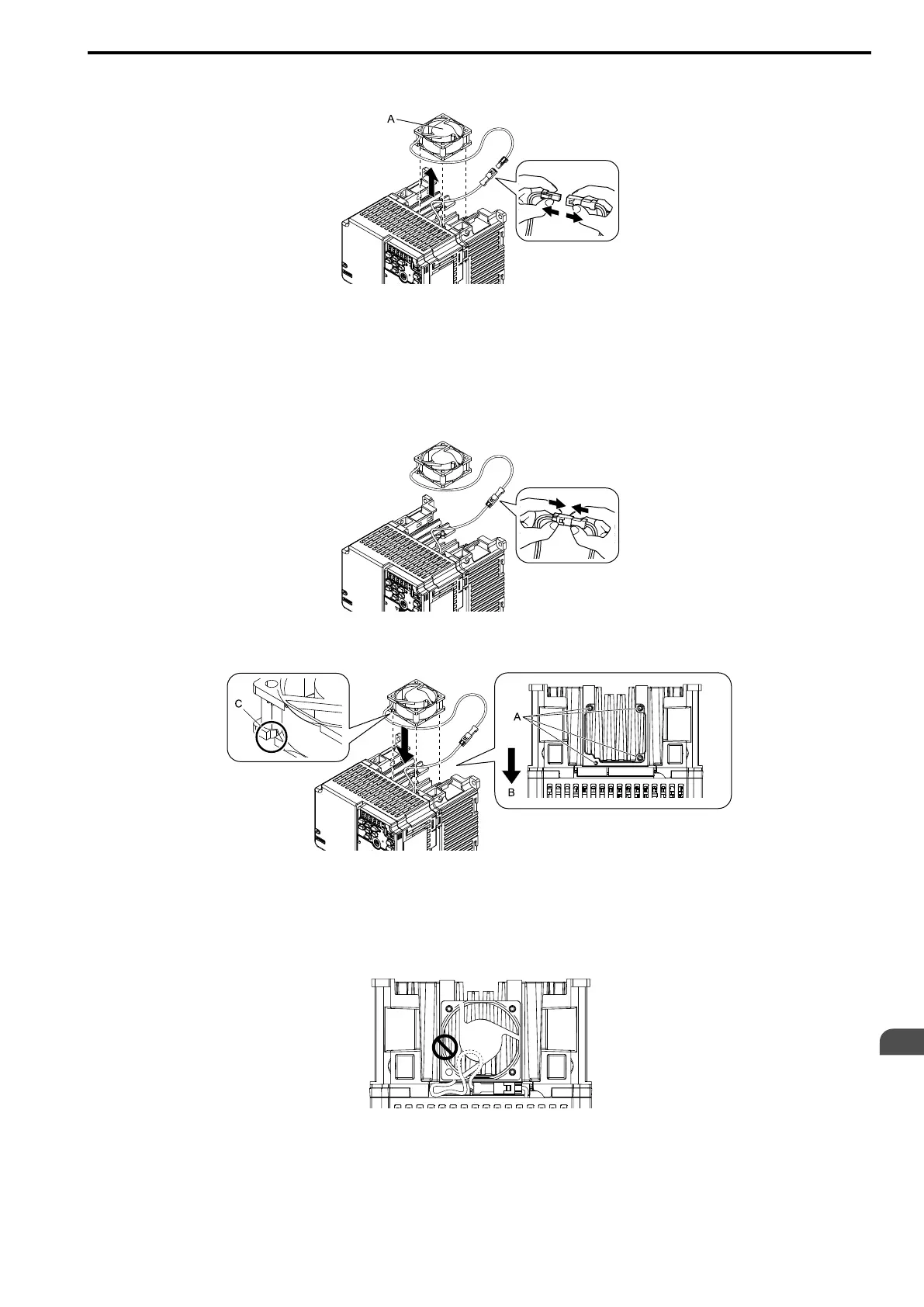

Figure 8.2 Remove the Cooling Fan
■ Install a Fan
Reverse the removal procedure to install a cooling fan.
1. Connect the power supply connector between the drive and cooling fan.
Figure 8.3 Connect the Power Supply Connector
2. Align the notches on the fan with the pins on the drive and install the cooling fans in the drive.
A - Alignment pins on drive
B - Front of drive
C - Notch on fan
Figure 8.4 Install the Cooling Fan
Note:
When you install the cooling fan, make sure that you do not pinch cables between the cooling fan and the drive.
