8.4 Replace Cooling Fans
314 YASKAWA SIEPC71061753C GA500 Technical Manual

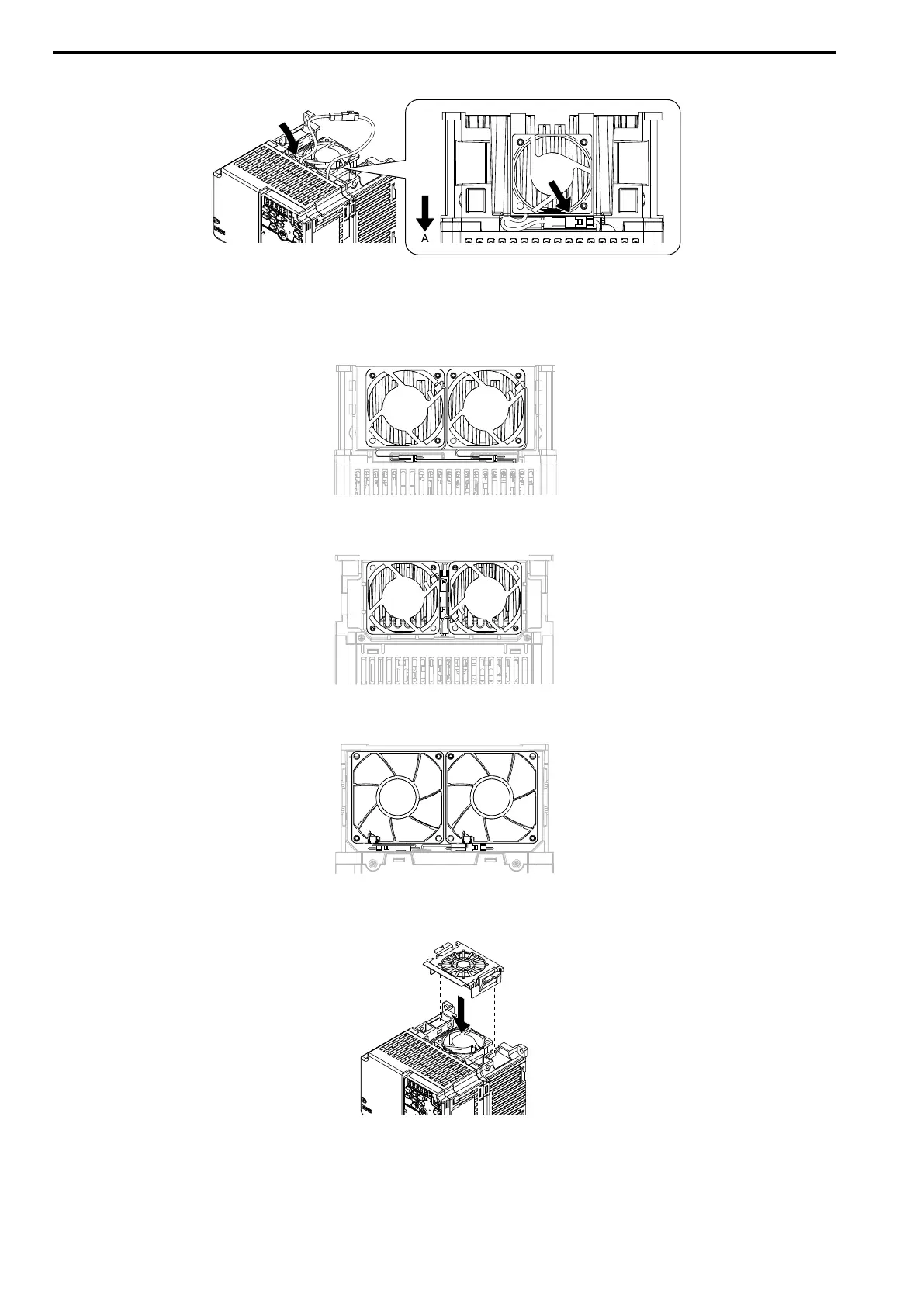

3. Put the cable and connector in the recess of the drive.
A - Front of drive
Figure 8.5 Put the Cable and Connector in the Drive Recess
Note:
The connector installation position is different for different models.
Figure 8.6 Put the Connector in the Recess
Figure 8.7 Put the Connector in Between the Fans
Figure 8.8 Put the Connector in Between the Drive and Fan
4. Insert the fan cover straight until the hook clicks into place.
Figure 8.9 Reattach the Fan Finger Guard
5. Energize the drive and set o4-03 = 0 [Fan Operation Time Setting = 0 h] to reset the cooling fan operation
time.
