12.8 H: Terminal Function Selection
636 YASKAWA SIEPC71061753C GA500 Technical Manual
■ 17: Fast Stop (N.C.)
Setting Value Function Description
17 Fast Stop (N.C.)
Sets the command to ramp to stop in the deceleration time set in C1-09 [Fast Stop Time] when the input terminal is ON while
the drive is operating.
If you cancel the fast stop input, the drive will not restart the motor until you meet these conditions:
• Fully stop the motor
• Cancel the Run command
• Cancel the fast stop command
Note:
• To use the N.O. switch to input the fast stop command, set 15 (Fast Stop (N.O.)).
• Refer to C1-09: Fast Stop Time on page 549 for more information.
• Set C1-09 [Fast Stop Time] to a correct deceleration time. If the deceleration time is too short, it can cause an overvoltage fault and
failure to stop the motor from coasting.

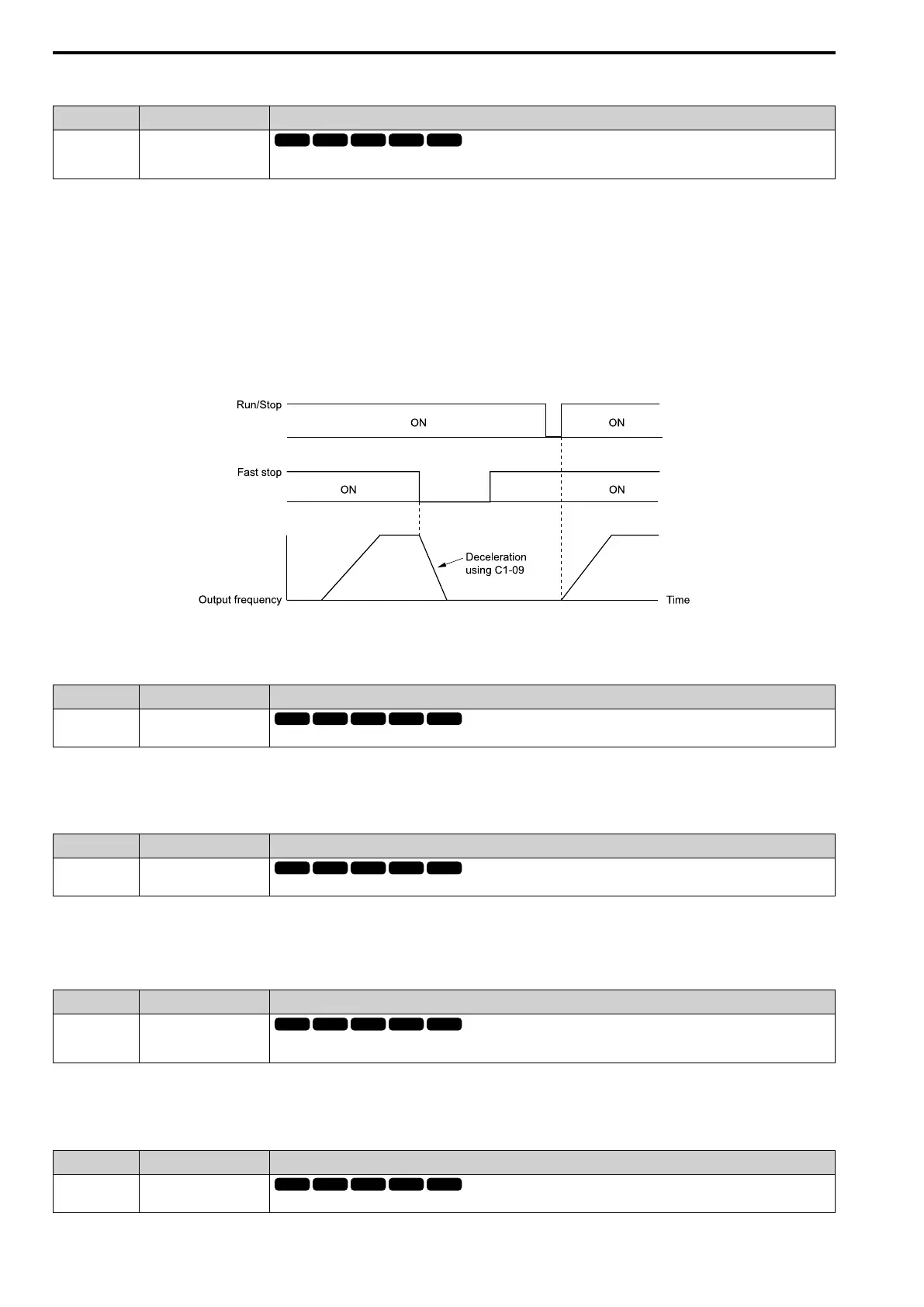

Figure 12.70 shows an example of how fast stop operates.
Figure 12.70 Fast Stop Time Chart
■ 18: Timer Function
Setting Value Function Description
18 Timer Function
Sets the command to start the timer function. Use this setting with Timer Output [H2-xx = 12].
Note:
Refer to b4: Timer Function on page 523 for more information.
■ 19: PID Disable
Setting Value Function Description
19 PID Disable
Sets the command to disable PID control when b5-01 = 1 to 8 [PID Mode Setting = Enabled].
ON : PID control disabled
OFF : PID control enabled
■ 1A: Accel/Decel Time Selection 2
Setting Value Function Description
1 A Accel/Decel Time Selection
2
Set this function and H1-xx = 7 [Accel/Decel Time Selection 1] together. Sets the drive to use Acceleration/Deceleration Time 3
[C1-05, C1-06] or Acceleration/Deceleration Time 4 [C1-07, C1-08].
Note:
Refer to C1: Accel & Decel Time on page 546 for more information.
■ 1B: Programming Lockout
Setting Value Function Description
1B Programming Lockout
Sets the command to prevent parameter changes when the terminal is OFF.
