YASKAWA RM2-755/1255SL - Page 100

Appendix B
B.1 Illustrated Parts List
B-20
166006-1CD
166006-1CD
RM2-755/1255SL Positioner

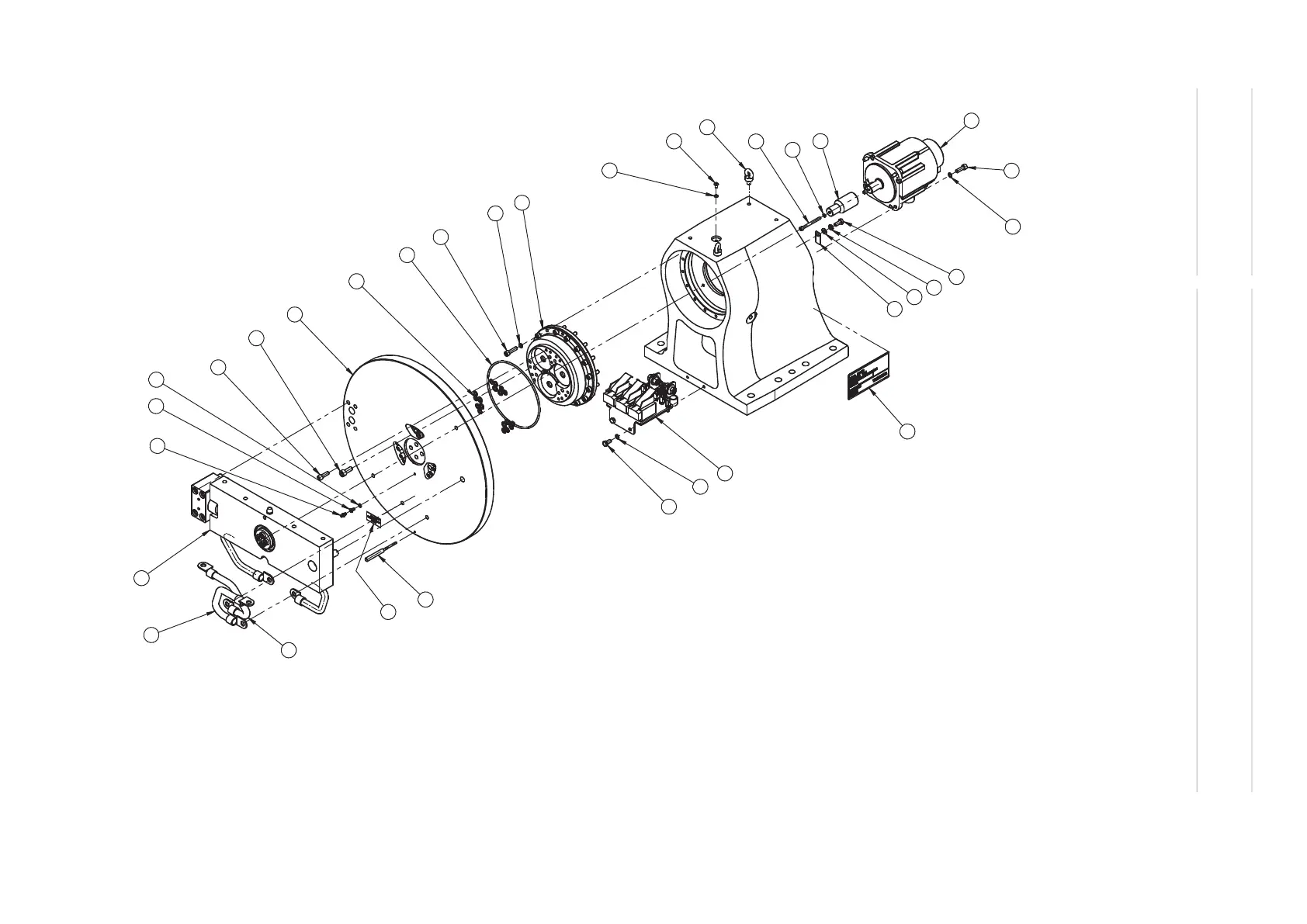

Fig. B-6: RM2-755 Drive Assembly, MH555 Headstock, with Motomount (August 2018 or Later)
