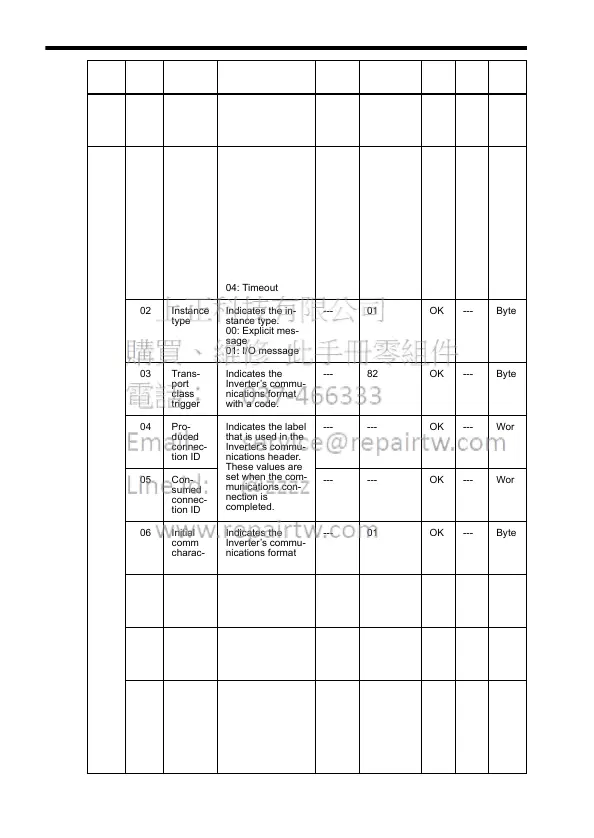

YASKAWA Varispeed V7 - Page 103

102
01 10 Con-
sumed
connec-
tion path
Indicates the appli-
cation object that
receives data from
the instance.
--- --- OK --- Array
02 01 State Indicates the in-
stance status.
00: Does not exist
in network or ini-
tializing.
01: Online and
waiting for connec-
tion from master.
02: Waiting for
connection ID to
be written.
03: Connection
completed.
04: Timeout
--- 03 OK --- Byte
02 Instance
type
Indicates the in-
stance type.
00: Explicit mes-
sage
01: I/O message
--- 01 OK --- Byte
03 Trans-
port
class
trigger
Indicates the
Inverter’s commu-
nications format
with a code.
--- 82 OK --- Byte
04 Pro-
duced
connec-
tion ID
Indicates the label
that is used in the
Inverter’s commu-
nications header.
These values are
set when the com-
munications con-
nection is
completed.
--- --- OK --- Word
05 Con-
sumed
connec-
tion ID
--- --- OK --- Word
06 Initial
comm
charac-
teristics
Indicates the
Inverter’s commu-
nications format
with a code.
--- 01 OK --- Byte
07 Pro-
duced
connec-
tion size
Indicates the maxi-
mum number of
bytes for transmis-
sions.
--- 0004 OK --- Word
08 Con-
sumed
connec-
tion size
Indicates the maxi-
mum number of
bytes for recep-
tions.
--- 0004 OK --- Word
09 Expect-
ed pack-
et rate
Indicates the time-
out time for inter-
nal processing
after a communi-
cations request
was received. (Set
in multiples of
10 ms.)
0 to
65,53
5 ms
0000
(0 ms)
OK OK Word
In-
stance
At-
tribute
Name Contents Setting
Range
Factory Set-
ting (Hex)
Read Write Size
