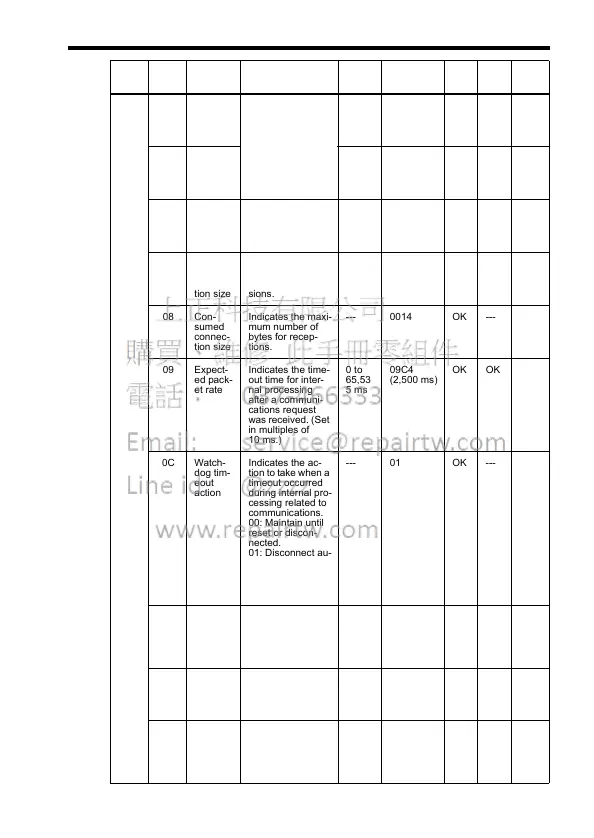

YASKAWA Varispeed V7 - Page 102

6. Operating with DeviceNet Communications
101
01 04 Pro-
duced
connec-
tion ID
Indicates the label
that is used in the
Inverter’s commu-
nications header.
These values are
set when the com-
munications con-
nection is
completed.
--- --- OK --- Word
05 Con-
sumed
connec-
tion ID
--- --- OK --- Word
06 Initial
comm
charac-
teristics
Indicates the
Inverter’s commu-
nications format
with a code.
--- 21 OK --- Byte
07 Pro-
duced
connec-
tion size
Indicates the maxi-
mum number of
bytes for transmis-
sions.
--- 0014 OK --- Word
08 Con-
sumed
connec-
tion size
Indicates the maxi-
mum number of
bytes for recep-
tions.
--- 0014 OK --- Word
09 Expect-
ed pack-
et rate
Indicates the time-
out time for inter-
nal processing
after a communi-
cations request
was received. (Set
in multiples of
10 ms.)
0 to
65,53
5 ms
09C4
(2,500 ms)
OK OK Word
0C Watch-
dog tim-
eout
action
Indicates the ac-
tion to take when a
timeout occurred
during internal pro-
cessing related to
communications.
00: Maintain until
reset or discon-
nected.
01: Disconnect au-
tomatically.
02: Perform the
operation again
while connected.
--- 01 OK --- Byte
0D Pro-
duced
connec-
tion path
length
Indicates the
transmission con-
nection path’s
number of bytes.
--- 0000 OK --- Word
0E Pro-
duced
connec-
tion path
Indicates the appli-
cation object that
transmits data
from the instance.
--- --- OK --- Array
0F Con-
sumed
connec-
tion path
length
Indicates the re-
ception connection
path’s number of
bytes.
--- 0000 OK --- Word
In-
stance
At-
tribute
Name Contents Setting
Range
Factory Set-
ting (Hex)
Read Write Size
