* 2. When I/O message communications are enabled, the data set here will be
overwritten by the I/O message data. Do not use this object when I/O
message communications are enabled.

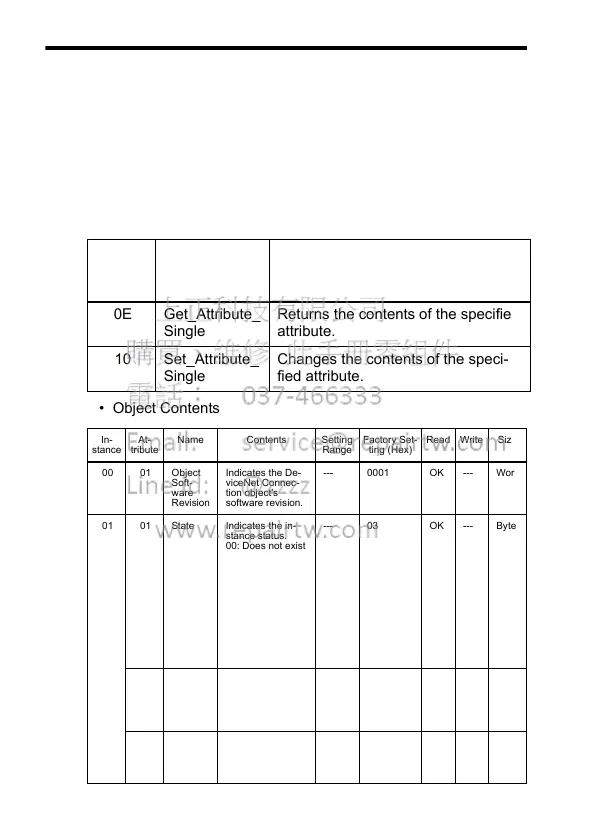

DeviceNet Connection Object (Class 05 Hex)
The DeviceNet object is the object that manages information and func-
tions related to DeviceNet communications connections. This object’s
information and functions are used when connecting and initializing
communications with the master.
• Supported Services
• Object Contents
Service
Code
(Hex)
Service Name Description
0E Get_Attribute_
Single
Returns the contents of the specified
attribute.
10 Set_Attribute_
Single
Changes the contents of the speci-
fied attribute.
In-
stance
At-
tribute
Name Contents Setting
Range
Factory Set-
ting (Hex)
Read Write Size
00 01 Object
Soft-
ware
Revision
Indicates the De-
viceNet Connec-
tion object's
software revision.
--- 0001 OK --- Word
01 01 State Indicates the in-
stance status.
00: Does not exist
in network or ini-
tializing.
01: Online and
waiting for connec-
tion from master.
02: Waiting for
connection ID to
be written.
03: Connection
completed.
04: Timeout
--- 03 OK --- Byte
02 Instance
type
Indicates the in-
stance type.
00: Explicit mes-
sage
01: I/O message
--- 00 OK --- Byte
03 Trans-
port
class
trigger
Indicates the
Inverter’s commu-
nications format
with a code.
--- 83 OK --- Byte
