10. Specifications
245

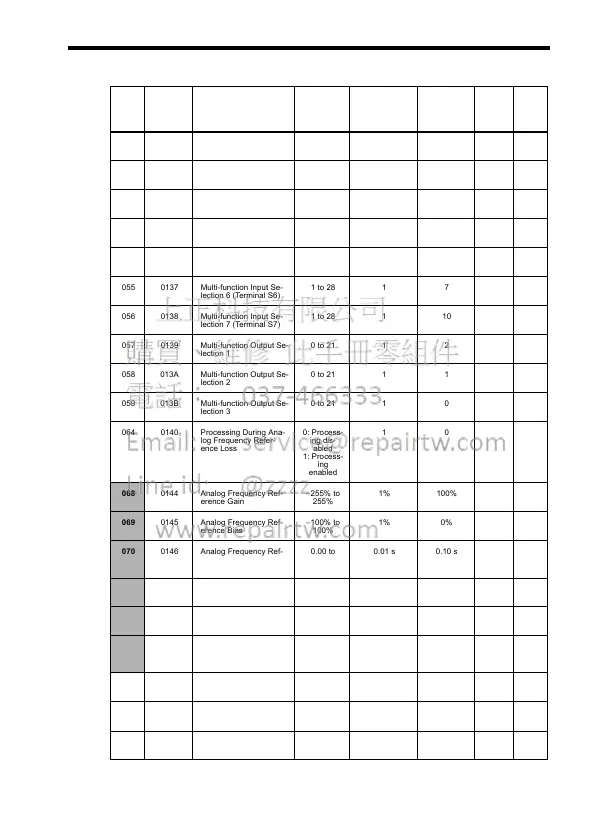

Second Functions (Constants n050 to n079)
No. Register
No. for
Trans-
mission
Name Setting
Range
Setting Unit Factory
Setting
User
Setting
Ref.
Page
050 0132 Multi-function Input Se-
lection 1 (Terminal S1)
1 to 28 1 1 159
051 0133 Multi-function Input Se-
lection 2 (Terminal S2)
1 to 28 1 2 159
052 0134 Multi-function Input Se-
lection 3 (Terminal S3)
0 to 28 1 3 159
053 0135 Multi-function Input Se-
lection 4 (Terminal S4)
1 to 28, 34 1 5 159
054 0136 Multi-function Input Se-
lection 5 (Terminal S5)
1 to 28 1 6 159
055 0137 Multi-function Input Se-
lection 6 (Terminal S6)
1 to 28 1 7 159
056 0138 Multi-function Input Se-
lection 7 (Terminal S7)
1 to 28 1 10 159
057 0139 Multi-function Output Se-
lection 1
0 to 21 1 2 164
058 013A Multi-function Output Se-
lection 2
0 to 21 1 1 164
059 013B Multi-function Output Se-
lection 3
0 to 21 1 0 164
064 0140 Processing During Ana-
log Frequency Refer-
ence Loss
0: Process-
ing dis-
abled
1: Process-
ing
enabled
10 ---
068 0144 Analog Frequency Ref-
erence Gain
−255% to
255%
1% 100% ---
069 0145 Analog Frequency Ref-
erence Bias
−100% to
100%
1% 0% ---
070 0146 Analog Frequency Ref-
erence Filter Time Con-
stant
0.00 to
2.00 s
0.01 s 0.10 s ---
071 0147 Analog Frequency Ref-
erence Gain
−255 to
255
1% 100% ---
072 0148 Analog Frequency Ref-
erence Bias
−100% to
100%
1% 0% ---
073 0149 Analog Frequency Ref-
erence Filter Time Con-
stant
0.00 to
2.00 s
0.01 s 0.01 s ---
077 014D Multi-function Analog In-
put Function
0 to 4 1 0 162
078 014E Multi-function Analog In-
put Signal Selection
0, 1 1 0 164
079 014F Sequence Input Double
Reading Selection
0, 1 1 0 ---
