* Values are doubled for 400 V Class.

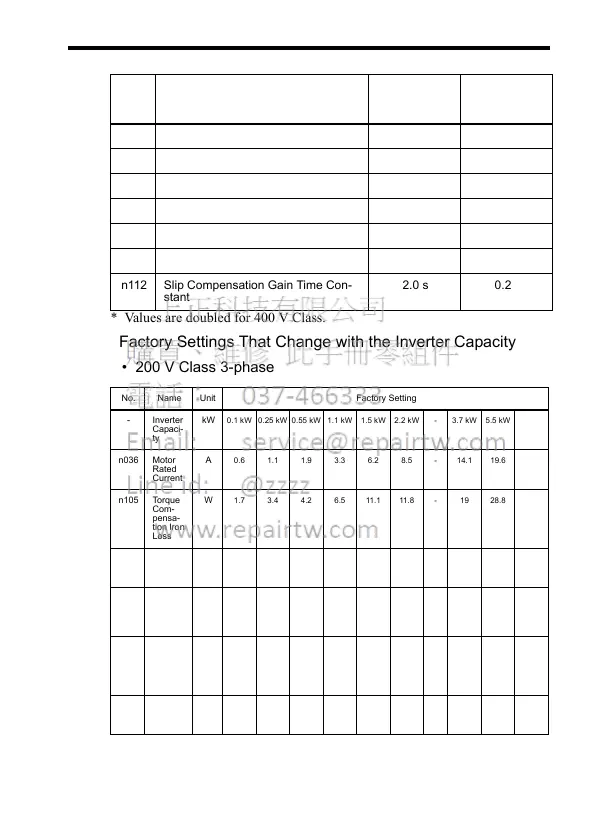

Factory Settings That Change with the Inverter Capacity
• 200 V Class 3-phase
No. Name V/f Control
Mode
(n002 = 0)
Vector Con-
trol Mode
(n002 = 1)
n014 Mid. Output Frequency 1.5 Hz 3.0 Hz
n015 Mid. Output Frequency Voltage 12.0 V* 11.0 V*
n016 Min. Output Frequency 1.5 Hz 1.0 Hz
n017 Min. Output Frequency Voltage 12.0 V* 4.3 V*
n104 Torque Compensation Time Constant 0.3 s 0.2 s
n111 Slip Compensation Gain 0.0 1.0
n112 Slip Compensation Gain Time Con-
stant
2.0 s 0.2 s
No. Name Unit Factory Setting
- Inverter
Capaci-
ty
kW
0.1 kW 0.25 kW 0.55 kW 1.1 kW 1.5 kW 2.2 kW - 3.7 kW 5.5 kW 7.5 kW
n036 Motor
Rated
Current
A
0.6 1.1 1.9 3.3 6.2 8.5 - 14.1 19.6 26.6
n105 Torque
Com-
pensa-
tion Iron
Loss
W
1.7 3.4 4.2 6.5 11.1 11.8 - 19 28.8 43.9
n106 Motor
Rated
Slip
Hz
2.5 2.6 2.9 2.5 2.6 2.9 - 3.3 1.5 1.3
n107 Line to
Neutral
(per
Phase)*
Ω
17.99 10.28 4.573 2.575 1.233 0.8 - 0.385 0.199 0.111
n108 Motor
Leak-
age In-
duc-
tance
MH
110.4 56.08 42.21 19.07 13.4 9.81 - 6.34 4.22 2.65
n110 Motor
No-load
Current
%
72 73 62 55 45 35 - 32 26 30
