YASKAWA Varispeed V7 - Page 253

252
• 200 V Class Single-phase

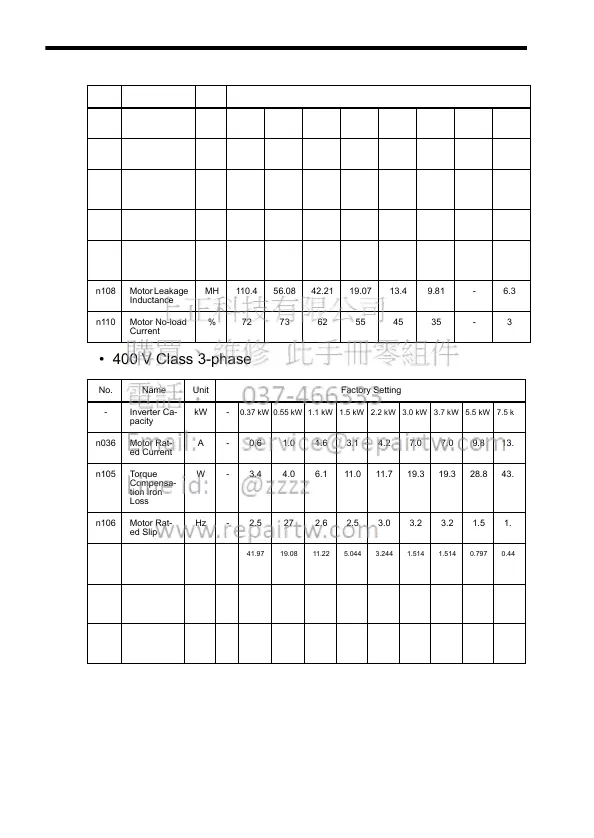

• 400 V Class 3-phase
* Sets the value of the motor resistance for one phase.
No. Name Unit Factory Setting
- Inverter Ca-
pacity
kW 0.1 kW 0.25 kW 0.55 kW 1.1 kW 1.5 kW 2.2 kW - 3.7 kW
n036 Motor Rated
Current
A 0.6 1.1 1.9 3.3 6.2 8.5 - 14.1
n105 Torque Com-
pensation Iron
Loss
W 1.7 3.4 4.2 6.5 11.1 11.8 - 19
n106 Motor Rated
Slip
Hz 2.5 2.6 2.9 2.5 2.6 2.9 - 3.3
n107 Line to Neu-
tral (per
Phase)*
Ω 17.99 10.28 4.573 2.575 1.233 0.8 - 0.385
n108 Motor Leakage
Inductance
MH 110.4 56.08 42.21 19.07 13.4 9.81 - 6.34
n110 Motor No-load
Current
%727362554535 - 32
No. Name Unit Factory Setting
- Inverter Ca-
pacity
kW -
0.37 kW 0.55 kW 1.1 kW 1.5 kW 2.2 kW 3.0 kW 3.7 kW 5.5 kW 7.5 kW
n036 Motor Rat-
ed Current
A - 0.6 1.0 1.6 3.1 4.2 7.0 7.0 9.8 13.3
n105 Torque
Compensa-
tion Iron
Loss
W - 3.4 4.0 6.1 11.0 11.7 19.3 19.3 28.8 43.9
n106 Motor Rat-
ed Slip
Hz - 2.5 27 2.6 2.5 3.0 3.2 3.2 1.5 1.3
n107 Line to
Neutral (per
Phase)*
Ω -
41.97 19.08 11.22 5.044 3.244 1.514 1.514 0.797 0.443
n108 Motor Leak-
age Induc-
tance
MH -
224.3 168.8 80.76 53.25 40.03 24.84 24.84 16.87 10.59
n110 Motor No-
load Cur-
rent
% - 73 63 52 45 35 33 33 26 30
