6. Operating with DeviceNet Communications
73

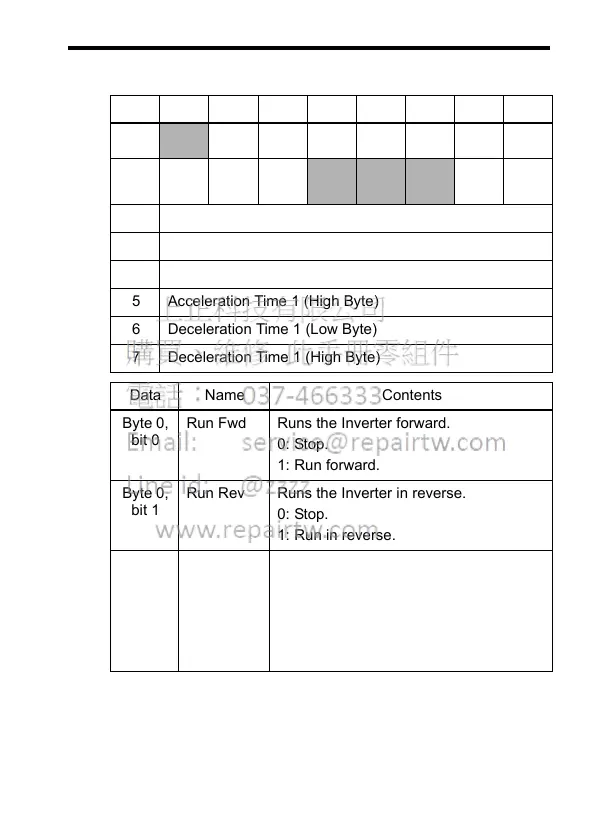

• Input (Master → Inverter) Instance 102 (66 Hex)
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0 --- Termi-
nal S7*
Term i-
nal S6*
Te rm i-
nal S5*
Term i-
nal S4
Te rm i-
nal S3
Run
Rev
Run
Fwd
1Termi-
nal P2
Te rm i-
nal P1
Term i-
nal
MA*
--- --- --- Fault
Reset
Exter-
nal
Fault
2 Speed Reference (Low Byte)
3 Speed Reference (High Byte)
4 Acceleration Time 1 (Low Byte)
5 Acceleration Time 1 (High Byte)
6 Deceleration Time 1 (Low Byte)
7 Deceleration Time 1 (High Byte)
Data Name Contents
Byte 0,
bit 0
Run Fwd Runs the Inverter forward.
0: Stop.
1: Run forward.
Byte 0,
bit 1
Run Rev Runs the Inverter in reverse.
0: Stop.
1: Run in reverse.
Byte 0,
bit 2
Te r min al
S3
Inputs the function set for the Inverter’s
multi-function input terminal S3. Set the
function of multi-function input terminal
S3 with Inverter constant n052.
0: Terminal S3 function OFF
1: Terminal S3 function ON
