* Terminal MA can be used only from DeviceNet communications. There is
no corresponding external output terminal.
• Output (Inverter → Master) Instance 152 (98 Hex)
Bytes
6 and 7
Decelera-
tion Time 1
Sets the Inverter’s deceleration time.
The units depend on the setting in
Inverter constant n018. (The factory set-
ting is for units of 0.1 s.) The value set
here is recorded in EEPROM. The units
are not affected by the time scale (TS)
setting.

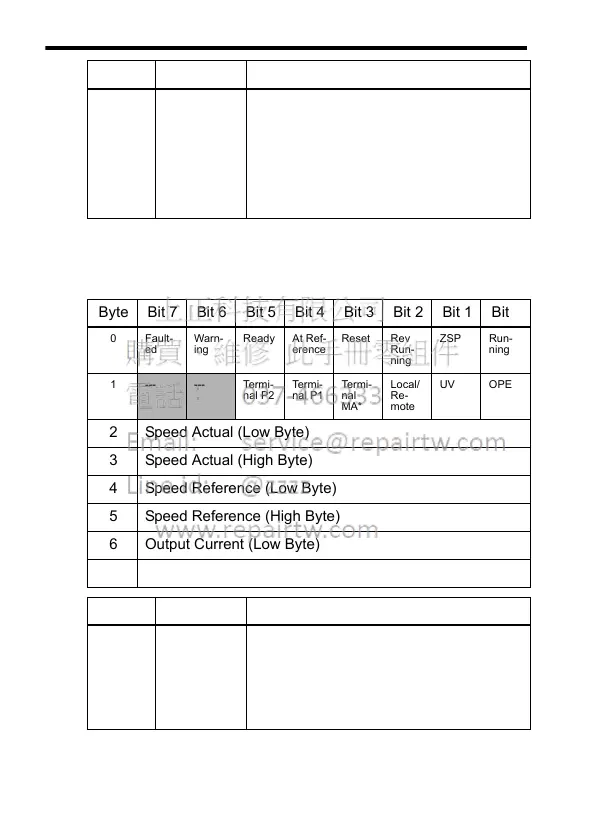

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0 Fault-
ed
Warn-
ing
Ready At Ref-
erence
Reset Rev
Run-
ning
ZSP Run-
ning
1
--- --- Termi-
nal P2
Te rm i-
nal P1
Term i-
nal
MA*
Local/
Re-
mote
UV OPE
2 Speed Actual (Low Byte)
3 Speed Actual (High Byte)
4 Speed Reference (Low Byte)
5 Speed Reference (High Byte)
6 Output Current (Low Byte)
7 Output Current (High Byte)
Data Name Contents
Byte 0,
bit 0
Running Indicates the Inverter’s operating status.
0: Stopped.
1: Operating forward, operating in
reverse, or applying DC injection
braking.
Data Name Contents
