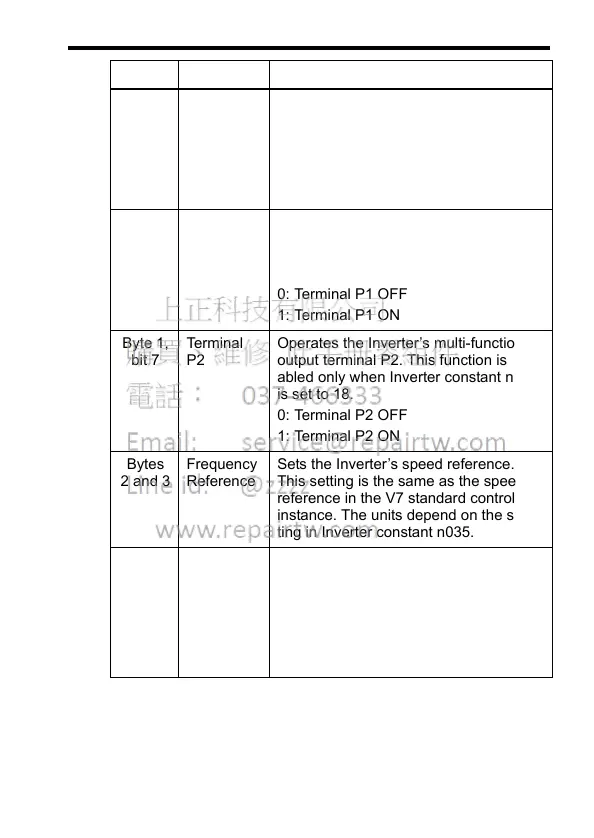

6. Operating with DeviceNet Communications
75
Byte 1,
bit 5
Te r min al
MA*
Operates the Inverter’s multi-function
output terminal MA. This function is en-
abled only when Inverter constant n057
is set to 18.
0: Terminal MA OFF
1: Terminal MA ON
Byte 1,
bit 6
Te r min al
P1
Operates the Inverter’s multi-function
output terminal P1. This function is en-
abled only when Inverter constant n058
is set to 18.
0: Terminal P1 OFF
1: Terminal P1 ON
Byte 1,
bit 7
Te r min al
P2
Operates the Inverter’s multi-function
output terminal P2. This function is en-
abled only when Inverter constant n059
is set to 18.
0: Terminal P2 OFF
1: Terminal P2 ON
Bytes
2 and 3
Frequency
Reference
Sets the Inverter’s speed reference.
This setting is the same as the speed
reference in the V7 standard control I/O
instance. The units depend on the set-
ting in Inverter constant n035.
Bytes
4 and 5
Accelera-
tion Time 1
Sets the Inverter’s acceleration time.
The units depend on the setting in
Inverter constant n018. (The factory set-
ting is for units of 0.1 s.) The value set
here is recorded in EEPROM. The units
are not affected by the time scale (TS)
setting.
Data Name Contents
To Next Page
