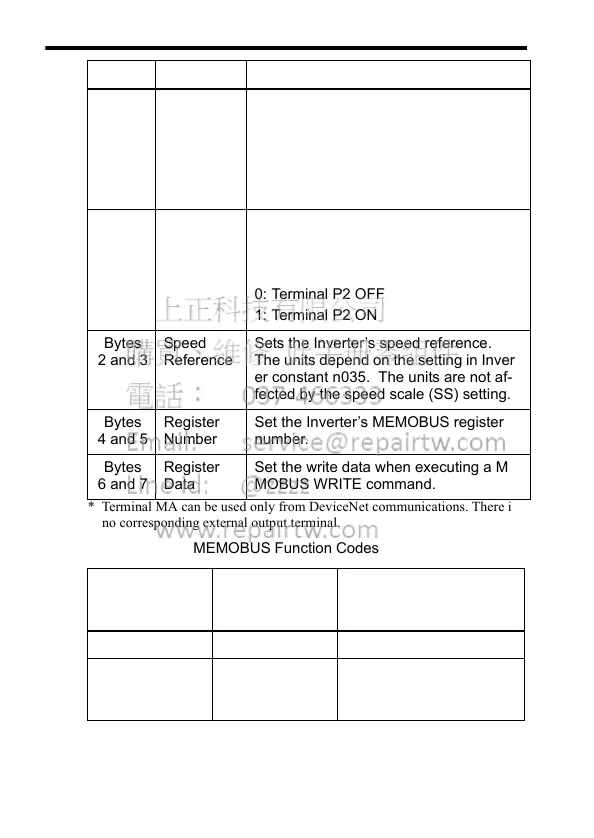

82
* Terminal MA can be used only from DeviceNet communications. There is
no corresponding external output terminal.
MEMOBUS Function Codes
Byte 1,
bit 6
Te r min al
P1
Operates the Inverter’s multi-function
output terminal P1. This function is en-
abled only when Inverter constant n058
is set to 18.
0: Terminal P1 OFF
1: Terminal P1 ON
Byte 1,
bit 7
Te r min al
P2
Operates the Inverter’s multi-function
output terminal P2. This function is en-
abled only when Inverter constant n059
is set to 18.
0: Terminal P2 OFF
1: Terminal P2 ON
Bytes
2 and 3
Speed
Reference
Sets the Inverter’s speed reference.
The units depend on the setting in Invert-
er constant n035. The units are not af-
fected by the speed scale (SS) setting.
Bytes
4 and 5
Register
Number
Set the Inverter’s MEMOBUS register
number.
Bytes
6 and 7
Register
Data
Set the write data when executing a ME-
MOBUS WRITE command.
Status of Func-
tion Code 1
(Byte 1, bit 1)
Status of Func-
tion Code 2
(Byte 1, bit 2)
Function
Fnc. Code 1 = 0 Fnc. Code 2 = 0 Nothing will be executed.
Fnc. Code 1 = 0 Fnc. Code 2 = 1 The data will be read from
the register specified in
bytes 4 and 5.
Data Name Contents
