Yealink SIP-T26P User Manual

User Guide for the SIP-T26P IP Phone
114

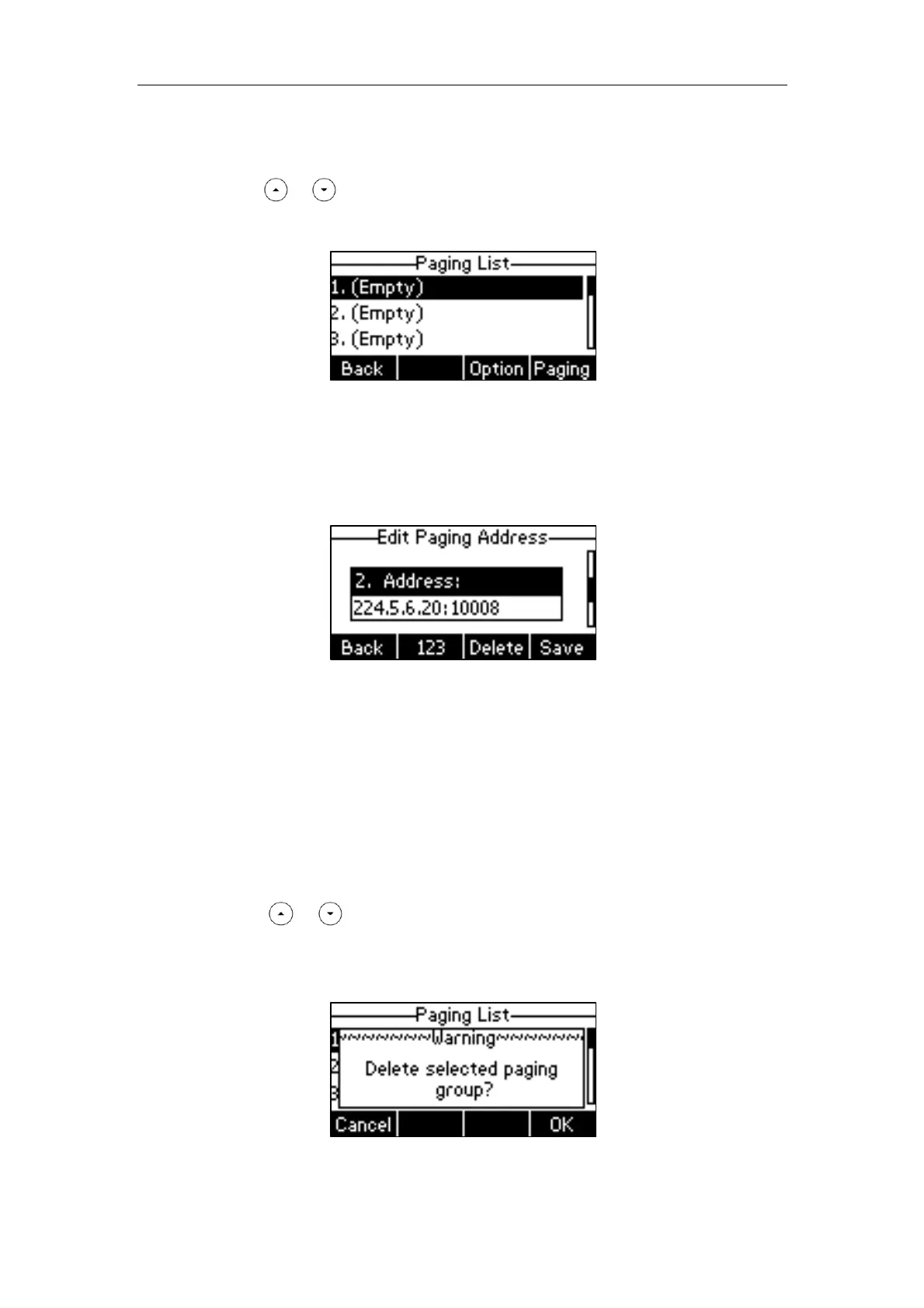

To configure paging list via phone user interface:
1. Press the paging list key when the phone is idle.
2. Press or to select a desired paging group.
The default tag is Empty if it is not configured before.
3. Press the Option soft key.
4. Press the Edit soft key.
5. Enter the multicast IP address and port number (e.g., 224.5.6.20:10008) in the
Address field.
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
6. Enter the group name in the Label field.
7. Press the Save soft key to accept the change.
8. Repeat the step 2-7, you can add more paging groups.
Paging list is configurable via web user interface at the path: Directory->Multicast IP.
To delete paging group via phone user interface:
1. Press the Paging list key when the phone is idle.
2. Press or to select a desired paging group.
3. Press the Option soft key.
4. Press the Delete soft key.
5. Press the OK soft key to accept the change or the Cancel soft key to cancel.

Yealink SIP-T26P Specifications

General

Expansion module support	Yes
Ethernet LAN (RJ-45) ports	2
Keypad number of keys	45
Number of handles included	1 pc(s)
Touchscreen	-
Display resolution	132 x 64 pixels
Lines quantity	3 lines
Phonebook capacity	- entries
Number of VoIP accounts	3
Voice codecs	G.711, G.722, G.723.1, G.726
Bluetooth	No
Security algorithms	HTTPS, SSL/TLS
AC adapter input voltage	100 - 240 V
AC adapter output voltage	5 V
Power consumption (typical)	2.6 W
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Compliance industry standards	IEEE 802.3af

Weight and Dimensions

Depth	204 mm
Width	273 mm
Height	42 mm
Weight	1050 g
