Yealink SIP-T54S User Manual

User Guide for the SIP-T54S Media IP Phone
112
The default value is “1”.
3. Click Confirm to accept the change.
Note
Area Code
Area codes are also known as Numbering Plan Areas (NPAs). They usually indicate geographical
areas in a country. This feature is necessary when dialing a phone number outside the code area.
For example, an area code is configured as "Code: 0592, Min Length: 1, Max Length: 15". When
you dial out the number "56789" (the length of the number is between 1 and 15), the phone will
add the area code and dial out the number "059256789". You can only configure one area code
rule on your phone.
To configure the area code via web user interface:
1. Click on Settings->Dial Plan->Area Code.
2. Enter the desired values in the Code, Min Length (1-15) and Max Length (1-15) fields.
3. Enter the desired line ID in the Account field or leave it blank.

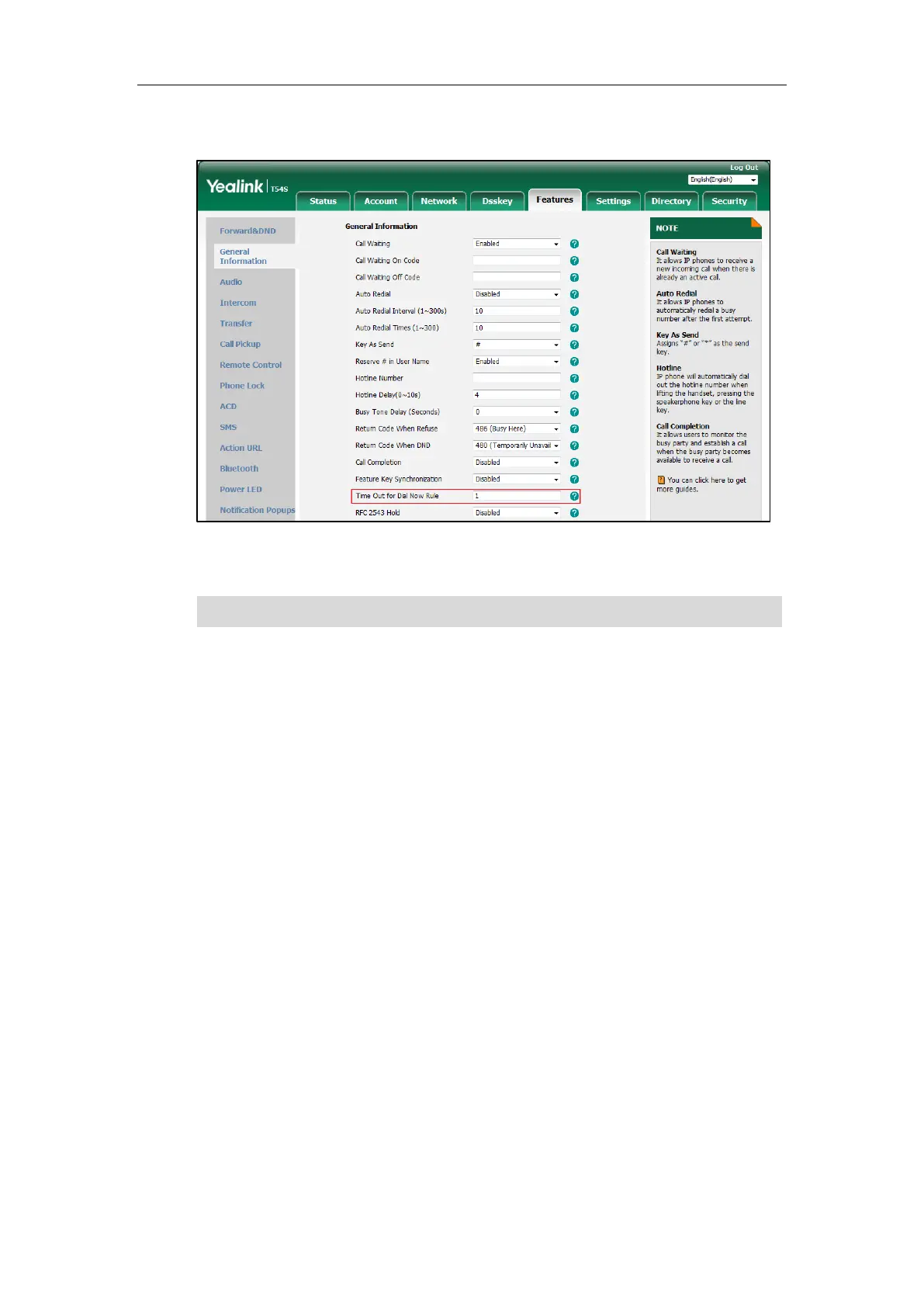

Time out for dial now rule is configurable via web user interface only.

Yealink SIP-T54S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	-
Bluetooth version	2.1+EDR
Ethernet LAN interface type	Gigabit Ethernet
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
AC adapter input voltage	100 - 240 V
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Voice codecs	G.722, G.723, G.723.1, G.726, G.729B, OPUS, iLBC
Front camera	No
Volume control	Digital
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Operating system installed	Linux

Weight and Dimensions

Depth	218.8 mm
Width	233 mm
Height	172.6 mm
