Yealink SIP-T54S User Manual

User Guide for the SIP-T54S Media IP Phone
22

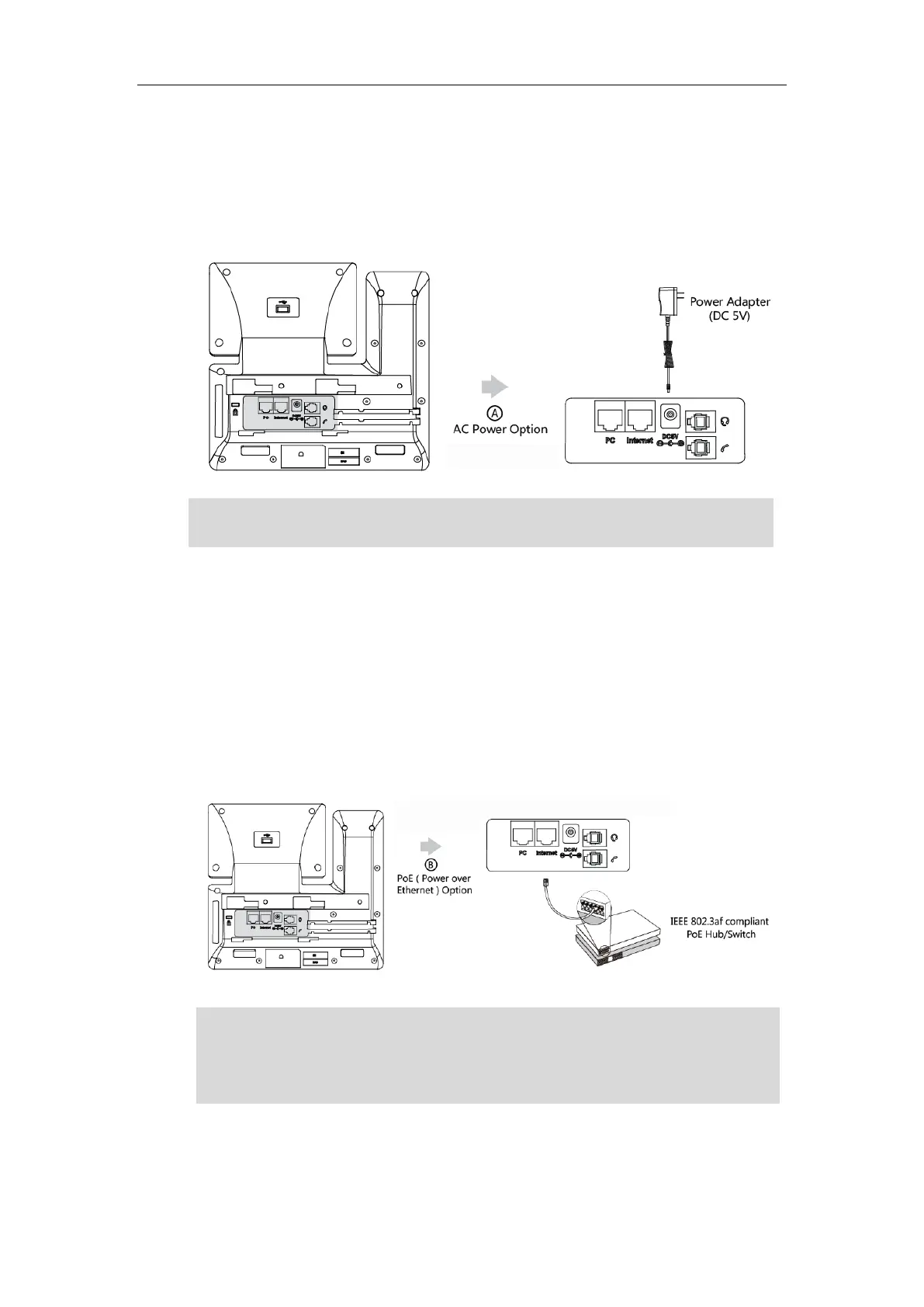

AC Power (Optional)
To connect the AC power:
1. Connect the DC plug on the power adapter to the DC5V port on the phone and connect the
other end of the power adapter into an electrical power outlet.
Note
Power over Ethernet
With the included or a regular Ethernet cable, the SIP-T54S media IP phone can be powered
from a PoE-compliant switch or hub.
To connect the PoE:
1. Connect the Ethernet cable between the Internet port on the phone and an available port
on the in-line power switch/hub.
Note
If in-line power is provided, you don’t need to connect the phone to the power adapter. Make
sure the switch/hub is PoE-compliant.
Important! Do not remove power from the phone while it is updating firmware and
configurations.
The IP phone should be used with Yealink original power adapter (5V/2A) only. The use of the
third-party power adapter may cause the damage to the phone.

Yealink SIP-T54S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	-
Bluetooth version	2.1+EDR
Ethernet LAN interface type	Gigabit Ethernet
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
AC adapter input voltage	100 - 240 V
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Voice codecs	G.722, G.723, G.723.1, G.726, G.729B, OPUS, iLBC
Front camera	No
Volume control	Digital
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Operating system installed	Linux

Weight and Dimensions

Depth	218.8 mm
Width	233 mm
Height	172.6 mm
