Yealink SIP-T54S User Manual

User Guide for the SIP-T54S Media IP Phone
210
2. Press the Call Pull soft key.
The active call has been retrieved from the phone A successfully.
If there is a held call between phone A and phone C, do the following:
1. Long press the desired line key on phone B.
The Cancel, Call Pull, New Call and Retrieve soft keys appear on the LCD screen of phone
B.
2. Press the Call Pull soft key.
The held call has been retrieved from the phone A successfully.
Bridged Lines Appearance (BLA)
BLA allows users to share a SIP line on two or more IP phones. Users can monitor the specific
extension (BLA number) for status changes on each IP phone. To use this feature, a BLA group
should be pre-configured on the server and one of them is specified as a BLA number. BLA
depends on support from a SIP server.

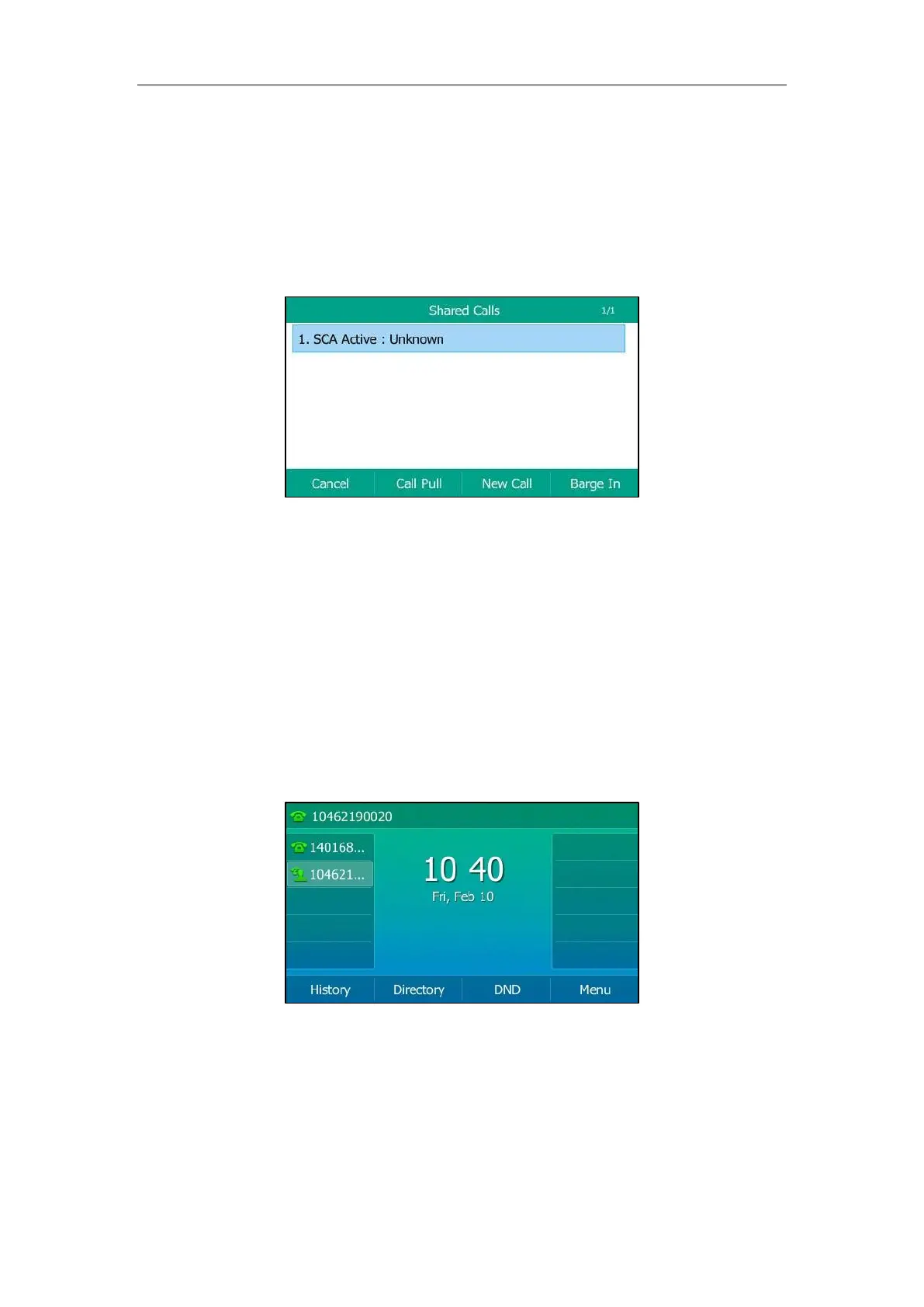

In the following figure, the first line is private and the second line is shared:
Any IP phone can be used to originate or receive calls on the bridged line. An incoming call to
the BLA number can be presented to multiple phones in the group simultaneously. The
incoming call can be answered on any IP phone of the group but not all.

Yealink SIP-T54S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	-
Bluetooth version	2.1+EDR
Ethernet LAN interface type	Gigabit Ethernet
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
AC adapter input voltage	100 - 240 V
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Voice codecs	G.722, G.723, G.723.1, G.726, G.729B, OPUS, iLBC
Front camera	No
Volume control	Digital
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Operating system installed	Linux

Weight and Dimensions

Depth	218.8 mm
Width	233 mm
Height	172.6 mm
