MyPBX U100&U200 Administrator's Guide
www.yeastar.com Page 54
format of phonebook should be *.xml.
Note: All the existing phonebooks of the IP phone will be replaced automatically
if the phonebooks are configured in this way.
6.1.2.4 Configure phone
Let's take provisioning Yealink as an example.
Create New Phone have two modes,
Create New phone in webpage and Upload the IP Phone‟s configure file.
Add new phone via webpage
Click “Add Phone” and fill in the corresponding information in the pop-up
window.

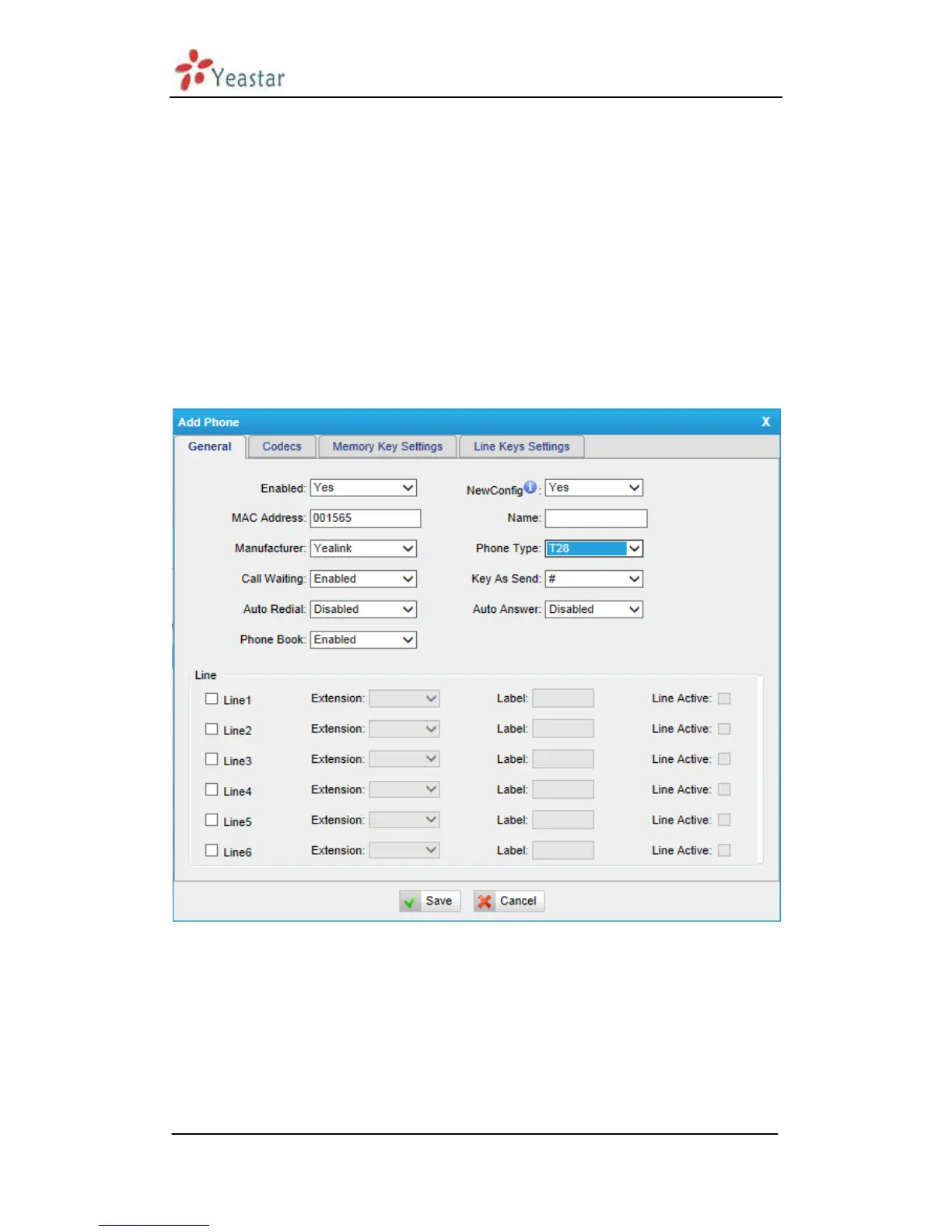

Figure 6-13
1) General
·Enabled
Choose yes or no to enable or disable this extension
·New Config
If your IP phone‟s firmware version is above x.70.x.x, you should select “Yes”.
To Next Page
