Yeastar Technology N824 User Manual

N824 User Manual
96
Upgrade through TFTP
Step1.Download firmware file from Yeastar website.
Step2. Create a tftp Server (For example, tftpd on Windows).
1) Install tftpd32 software on computer.
Download link: http://tftpd32.jounin.net/tftpd32_download.html
2) Configure tftpd32.
On option ―Current Directory‖, click ―Browse‖ button, choose the firmware file
(BIN file) upgraded patch.

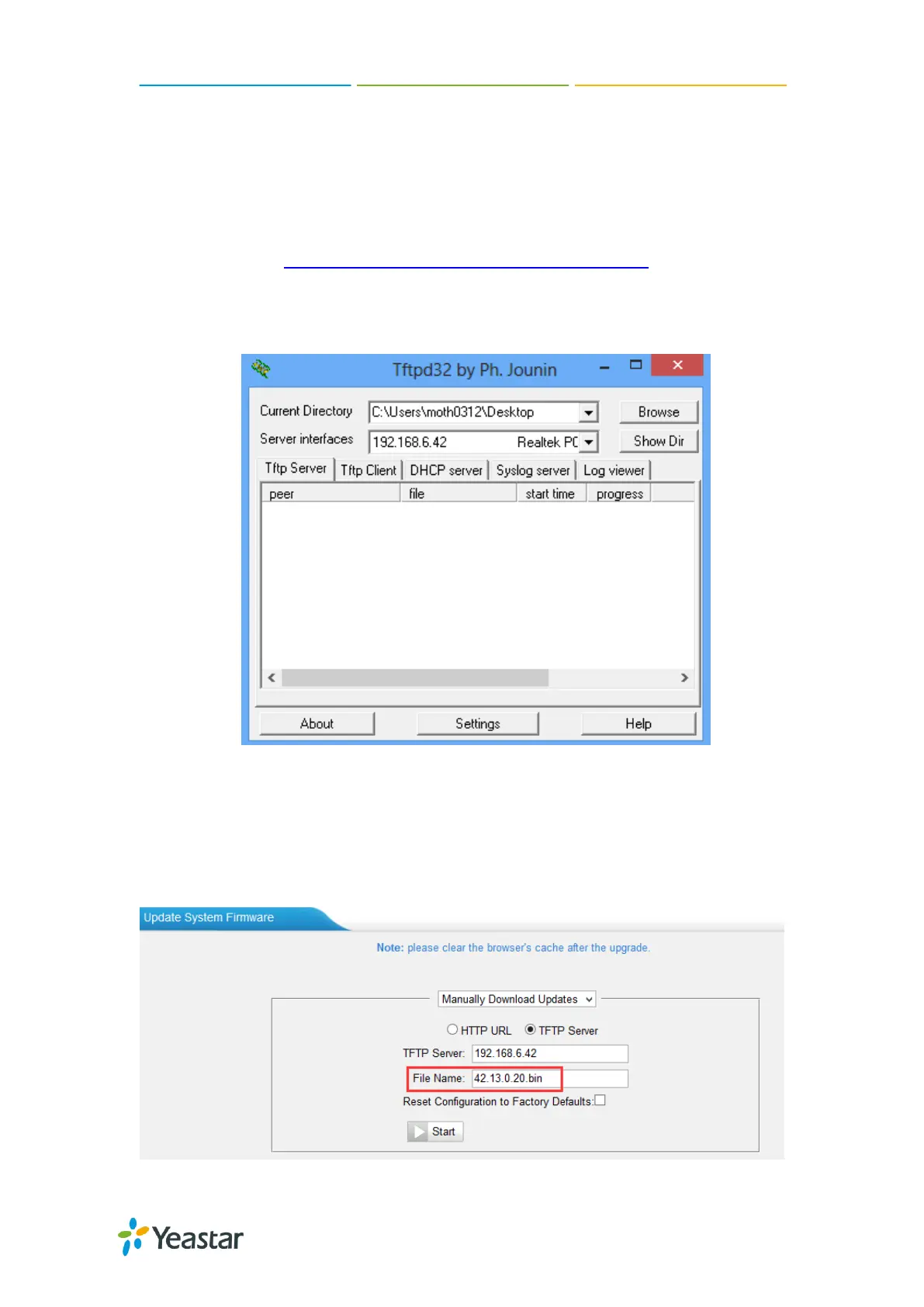

Figure 20-4 Configure Tftpd32
Step3.Logon the N824’s Web page and go to System→System
Preferences→Firmware Update, choose ―TFTP Server‖.
1) TFTP Server: fill in IP address of tftpd32 server (your PC’s IP address).
2) File Name: enter the name of firmware update. It should be a BIN file name.
3) Click ―Start‖ to upgrade.
Figure 20-5 Upgrade through HTTP
