YOKOGAWA F3CU04-0S User Manual

C2-10
IM 34M06H62-02E 2nd Edition : June 2008-00

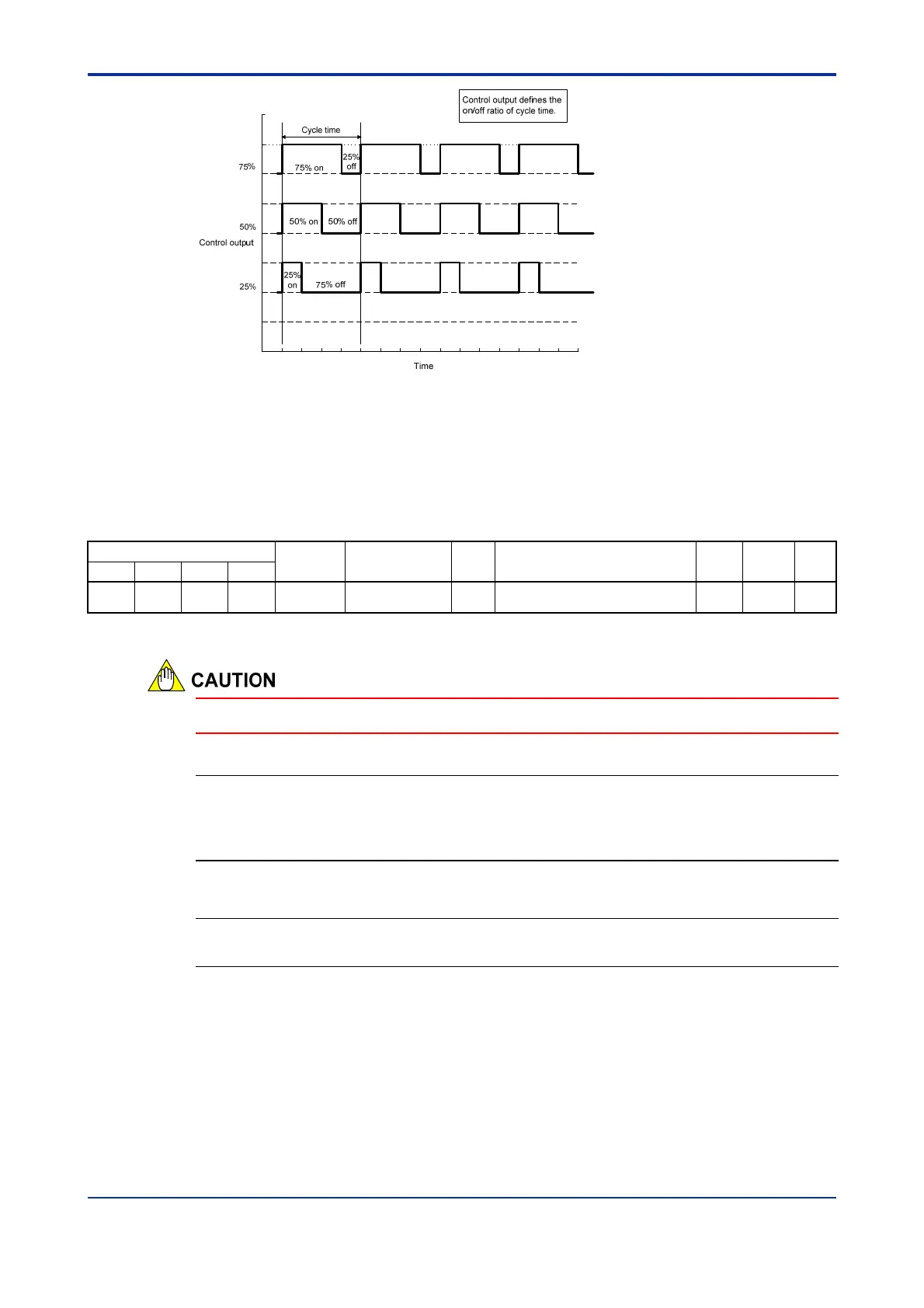

Figure C2.4 Time-proportional PID Control Output
 Continuous PID Control Output
In continuous PID control, the PID computation result, HOUT, is output as a continuous
analog signal in the form of a 4-20 mA current.
Table C2.10 I/O Registers Related to Continuous PID Control
Data Position Number
Symbol Description Unit Data Range
Default
Value
Attribute Stored
Loop 1 Loop 2 Loop 3 Loop 4
104 304 504 704 HOUT Control output %
OL to OH: for single output
0 to OH: for heating/cooling output
— RO —
Continuous PID control is available only with F3CU04-1S.
TIP
Time-proportional PID control output and continuous PID control output differ only in the output type. To
configure a terminal for time-proportional PID control, set the Output Type Selection (OUTPUT)
parameter to Open Collector. To configure a terminal for continuous PID control, set the Output Type
Selection (OUTPUT) parameter to Analog Output (4-20 mA current output).
TIP
The output of an output terminal also depends on the Output Terminal Selection parameter. For details
on output terminal selection, see Section C2.3, "Output Terminal Selection."
