YOKOGAWA F3CU04-0S User Manual

C2-11
IM 34M06H62-02E 2nd Edition : June 2008-00
 Output Limiter
The output limiter defines the range for the output control value by specifying the upper
and lower output limits, which may be defined for each loop or each PID parameter
group.
Table C2.11 Output Limiter Registers
Data Position Number
Symbol Description Unit
Data Range
Default
Value
Attribute
Stored
Loop 1 Loop 2 Loop 3 Loop 4
209 409 609 809 1.OH Upper output limit
%
-5.0 to 105.0% if OL ＜ OH.
OL is always output if OL  OH.
1000 RW 
210 410 610 810 1.OL Lower output limit 0 RW 
229 429 629 829 2.OH Upper output limit
%
-5.0 to 105.0% if OL ＜ OH.
OL is always output if OL  OH.
1000 RW 
230 430 630 830 2.OL Lower output limit 0 RW 
249 449 649 849 3.OH Upper output limit
%
-5.0 to 105.0% if OL ＜ OH.
OL is always output if OL  OH.
1000 RW 
250 450 650 850 3.OL Lower output limit 0 RW 
269 469 669 869 4.OH Upper output limit
%
-5.0 to 105.0% if OL ＜ OH.
OL is always output if OL  OH.
1000 RW 
270 470 670 870 4.OL Lower output limit 0 RW 

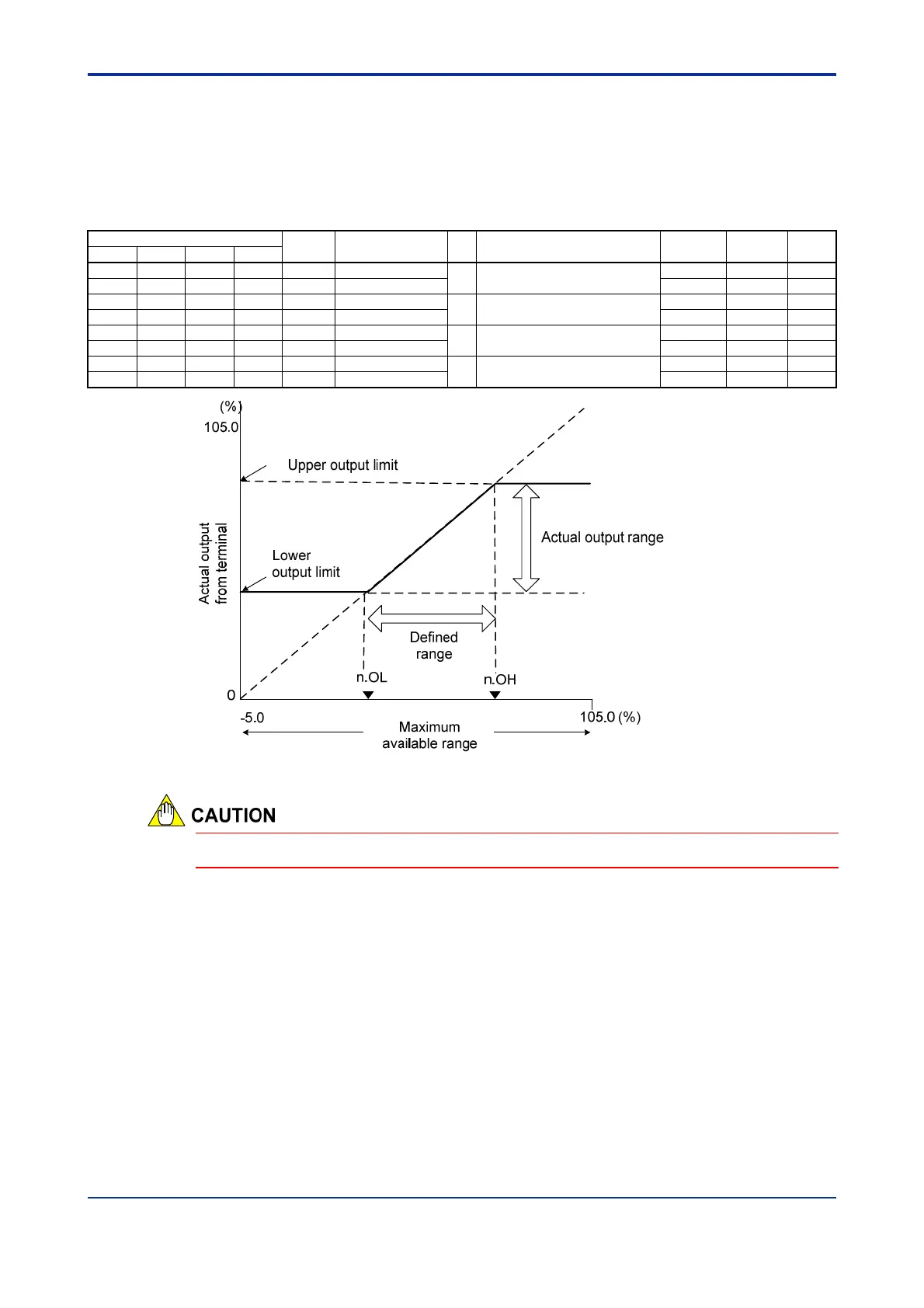

Figure C2.5 Output Limiter
In stop mode, the output limiter is disabled. The module outputs the preset value, POUT.
