YOKOGAWA GC8000 User Manual

15
TI 11B08A01-01E
Ex pd II B +H
2
T2 (programmed-temperature oven 225°C max., isothermal oven 225°C
max.,liquid-samplevalve225°Cmax.)
Ex pd II B +H
2
T3 (programmed-temperature oven 145°C max., isothermal oven 145°C
max.,liquid-samplevalve145°Cmax.)
Ex pd II B +H
2
T4 (programmed-temperature oven 95°C max., isothermal oven 95°C max.,
liquid-samplevalve95°Cmax.)
l Analyzer component names
Electronics section
(Purged and pressurized
enclosure) *2
Protection system B
(Flameproof enclosure) *1
Protection system A
(Flameproof enclosure) *1
Name
plate
Control
unit
Oven
unit
Covers of pressure and
flow control section
(Non-purged and
non-pressurized enclosure)
Covers of
electronics section
Cover of safety system
Door of
electronics section
Door of
isothermal oven
or programmed-
temperature
oven door
Protective gas
(instrumental air) inlet
Vent for protective gas
(instrumental air)
Cable entry
(Conduit entry)
Isothermal oven
or programmed-
temperature oven
(Purged and pressurized enclosure) *2
Note: Replace the following term for FM, CSA explosionproof models.
*1: Protection system A or B (explosionproof enclosure)
*2: Type X pressurization enclosure or Type Y pressurization enclosure
Oven safety unit

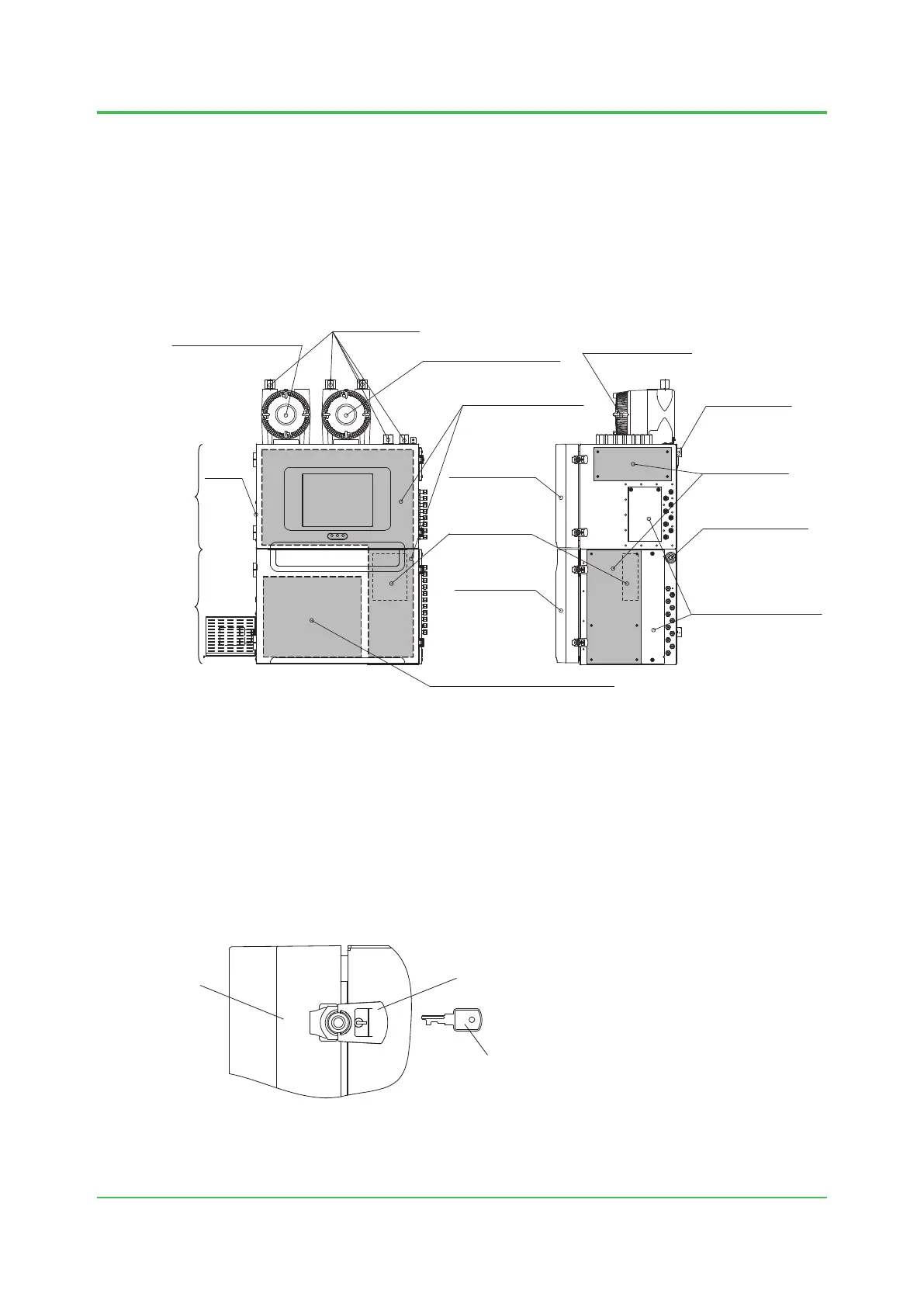

Figure 2 Analyzer component names for explosionproof type
l Opening/closing the door
The control unit, and the oven unit (large isothermal oven, standard isothermal oven,
programmed temperature oven) have a door fastener with a lock.
Lock the door when operating these devices. The same key is used for all the door fasteners. Do
not lose it.
Conrmthatthelevercannotbeliftedupafterlocking.
Right side view
Lever
Door
Key (Accessory kit)
Figure 3 Door fastener
Sep. 07, 2017-00
