YOKOGAWA GC8000 User Manual

2. Installation, Piping, and Wiring
54
TI 11B08A01-01E
Unit: mm
Right side
Ventilation
opening
* Prepare the structure which keeps the inside of
an analyzer house from rain and wind
*
Carrier gas
cylinder
Piping and wiring
inlet
Drain pipe
outlet
Standard gas cylinder
Floor plan A - A’
Front
1600
1600
Window to let in
natural light
Analyzer
Standard gas
cylinder
A
A’
Rear

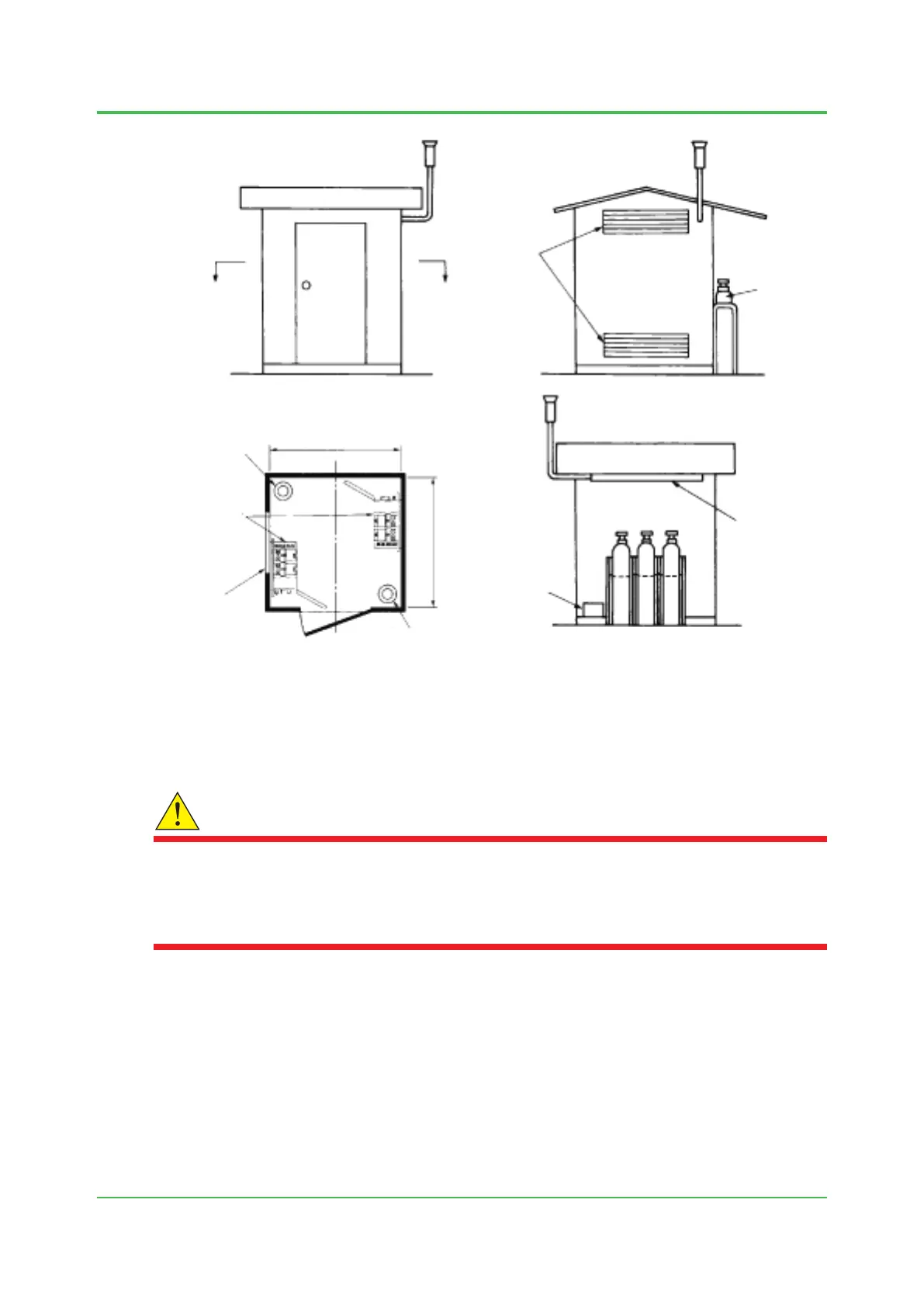

Figure 2.1 Example of analyzer house
(3) Unpacking
WARNING
• TheGC8000weighsabout100to220kg.Unpackitneartheinstallationsite.Usea
transportation machine to move it. Handle it carefully to prevent it from falling.
• Uptotwoprotectionsystemmaybeincluded,eachofwhichweighsapproximately7kg.
They are installed on top of GC8000. Therefore, the center of gravity is higher than the
center of the analyzer body.
Sep. 07, 2017-00
