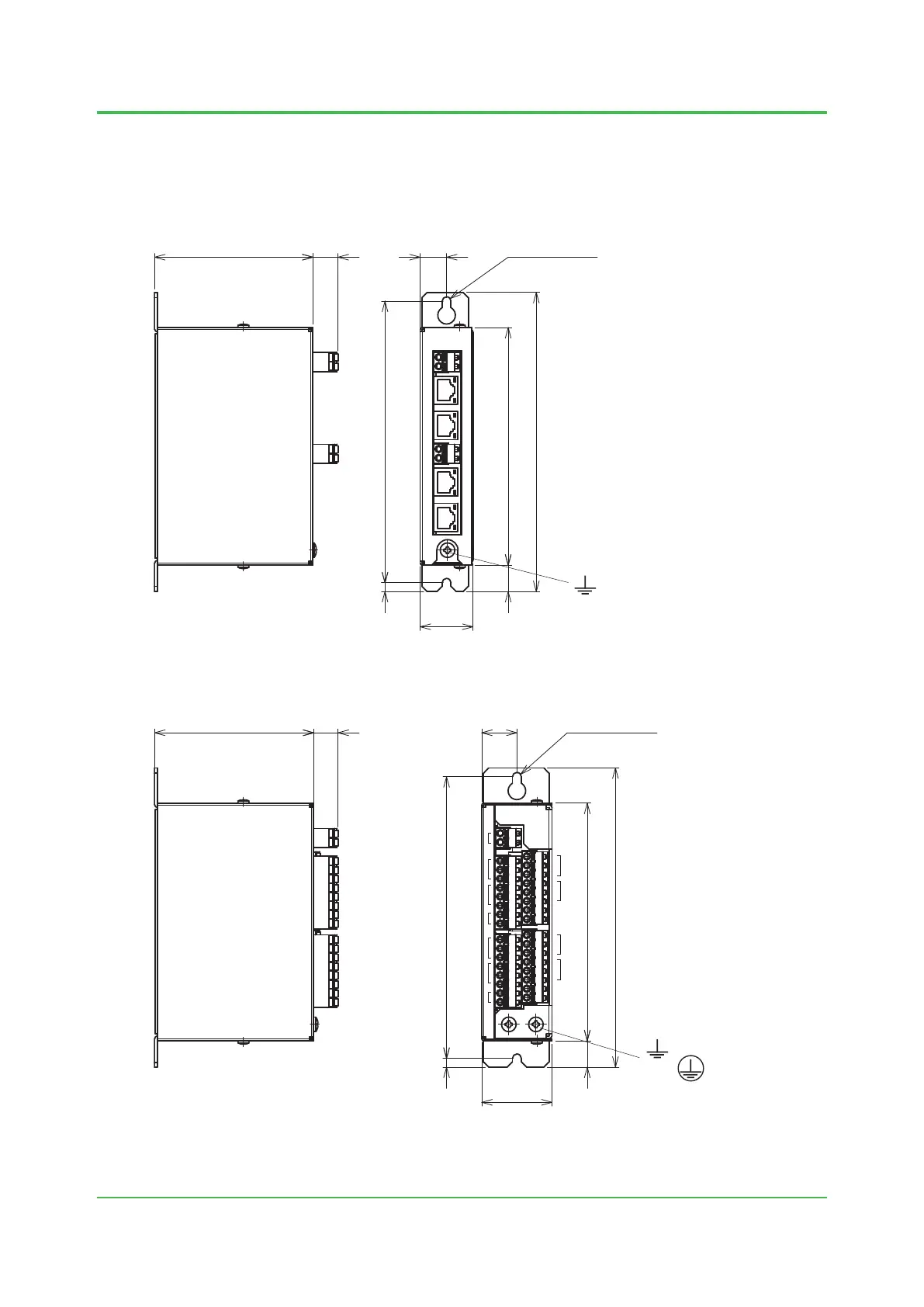

l Communication converter/Signal interrupter (disconnecter)
Rack-mounted type
• ConverterforRS-422/RS-232C:K9806AS*
• SignalinterrupterforEthernettwistedpaircable:K9806AA
• SignalinterrupterforRS-422output,analoginput:K9806AE
92 15
1605 170
13515
15
30
Unit: mm
2-holes for M4 screw
The number and the location of
the terminals depend on its part number.
Weight: approx. 500 g
• Signalinterrupterforcontactoutput(AC):K9806AN*
• Signalinterrupterforcontactoutput(DC):K9806AJ*
92 15
20
40
15
1605
135
170
Unit: mm
2-holes for M4 screw
The number and the location of
the terminals depend on its part number.
K9806AN: Protective earth
or
Weight: approx. 500 g
Note: Rack-mounted type should be installed vertically. The space between the converters/the signal interrupters
withmark(*)shouldbekeptmorethan10mm.
The wall construction for mounting has to be designed to withstand 4 times the product’s own weight.
Sep. 07, 2017-00
