YOKOGAWA GC8000 User Manual

2. Installation, Piping, and Wiring
74
TI 11B08A01-01E
CAUTION
The minimum packing (for ø8.0 to ø9.0) is attached to the cable packing adapters at shipment.
Change it to an appropriate packing for the cable O.D. (See Table 2.6.)
Hex.socket set screw
Hex key wrench
Cable
Cover
Coupling
Gland
Guide ring
Double-deck packing
(Replace it with an appropriate one from the accessory kit.)
Identification mark
Lock nut
O-ring
Body
Connection threads
Lock nut
Flameproof packing adapter
Hex.socket set screw
Protection system
(Flameproof enclosure)

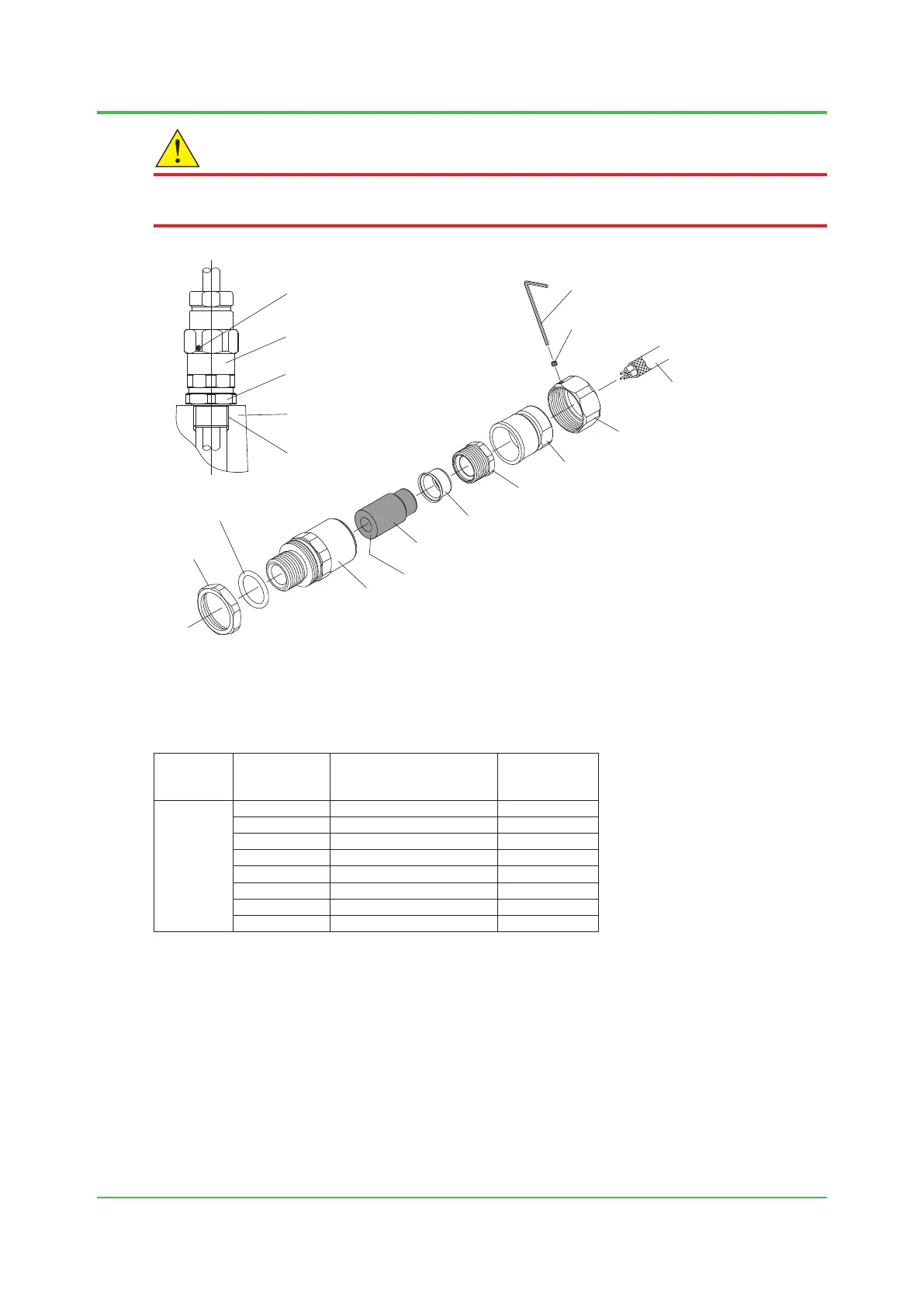

Figure 2.17 Procedure for mounting a cable packing adapter for a protection system
The cable packing adapters comply with the Technical Standard of the Ministry of Health, Labour
and Welfare, Japan.
Table 2.6 Size of double-deck packing for the protection system
Connection
port screw
Applicable
cable O.D.
Identicationmark Recommended
torque for the
gland(N·m)
G3/4
ø8.0 to ø9.0 SFFP209 ø8.0 to ø9.0 17
ø9.0 to ø10.0 SFFP2010 ø9.0 to ø10.0 25
ø10.0 to ø11.0 SFFP2011 ø10.0 to ø11.0 20
ø11.0 to ø12.0 SFFP2012 ø11.0 to ø12.0 20
ø12.0 to ø13.0 SFFP2013 ø12.0 to ø13.0 20
ø13.0 to ø14.0 SFFP2014 ø13.0 to ø14.0 25
ø14.0 to ø15.0 SFFP2015 ø14.0 to ø15.0 20
ø15.0 to ø16.0 SFFP2016 ø15.0 to ø16.0 20
*: WhenacableO.D.fallsundertwocategories,trybothandchoosethemoresuitableone.
l Connecting cables to the electronics section
Six connection ports are provided in the electronics section. Use convenient ones.
The cable packing adapters (G3/4) and plates for sealing are mounted as standard. Remove the
plate before using the port for wiring, and keep it for future use. (Do not remove the plate for the
unused connection port.)
Sep. 07, 2017-00
